Description:
Model Numbers:
Rated Voltage:
Supply Connection:
Max Rated Inputs:
Mains Supply Lead:

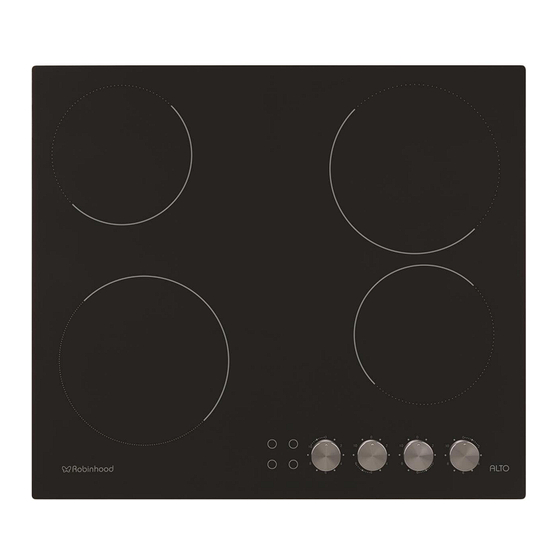

ROBINHOOD ALTO 60CM CERAMIC COOKTOP, KNOB CONTROLS
HEAB604FKG
IMPORTANT BEFORE USE: Clean the
cooktop with soapy water and rinse off
with soft cloth to remove oils and marks
caused by working and installation
residues..
400V/220 - 240 Vac 50/60 Hz
30 A (double pole switched fused outlet with 3mm contact gap)
6.0 kW
3 core x 2.5 mm² or 4 core x 2.5 mm² (not supplied)
Issue 1
Advertisement
Related Manuals for ROBINHOOD HEAB604FKG
Summary of Contents for ROBINHOOD HEAB604FKG
- Page 1 Issue 1 Description: ROBINHOOD ALTO 60CM CERAMIC COOKTOP, KNOB CONTROLS Model Numbers: HEAB604FKG IMPORTANT BEFORE USE: Clean the cooktop with soapy water and rinse off with soft cloth to remove oils and marks caused by working and installation residues.. Rated Voltage:...
-
Page 2: Warning And Safety Information
Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 3 Ceramic hob surface layout & controls Ceramic glass 1- 1.20 kW hyperspeed zones (diameter 160 mm) 2 - 1.80 kW hyperspeed zones (diameter 200 mm) Temperature indicator lamps Control Knobs 1.Cooking zone indicator of rear left element 2. Cooking zone indicator of front left element 3.
- Page 4 Installation Installing the ceramic hob •The kitchen area should be dry and aired and prepared with efficient ventilation. When installing the ceramic, easy access to all control elements should be ensured. •This is a Y-type design built-in ceramic, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall .Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100℃).This prevents surface deformation or detachment the...
- Page 5 Installation - continued IMPORTANT: Do not use a silicon sealant to seal the appliance against the surface. Carefully place the cooktop into the hole that you have cut out. There are holes on the base or the sides of the hob that you can fix the four brackets to.
- Page 6 Installation – electrical cable connection MUST BE COMPLETED BY A REGISTERED ELECTRICIAN The ceramic hob is manufactured to work with three-phase alternating current (400V3N~50Hz).The voltage rating of the ceramic hob heating elements is 230V. Adapting the ceramic hob to operate with one-phase current is possible by appropriate bridging in the connection box according to the connection diagram below.
- Page 7 Installation – electrical cable connection MUST BE COMPLETED BY A REGISTERED ELECTRICIAN The cable connections must be in accordance with the diagram located on the bottom of the hob . You should use a good quality screwdriver to carefully, fully tighten ALL of the terminal screws.
- Page 8 Instructions for use and maintenance Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any odors that exists and evaporate any humidity that has formed on the heating elements during transit.
- Page 9 Instructions for use and maintenance The cooktop is fitted with cooking areas of different diameter and power.(see technical detail on page 3) The positions where the heat will radiate from are clearly marked on the hob top. The saucepans must be positioned exactly on these zones for efficient heating to occur.
- Page 10 Instructions for use and maintenance Cleaning operations must only be carried out when the hob is cool. The appliance should be switched off at your mains power supply before commencing any cleaning process. Cleaning the ceramic cooktop Any residues that are left on the hob top surface from cleaning agents will damage it.
- Page 11 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Particular areas of the cooktop surface (adjacent to the hotplates) are hot during operation. Hot oil ignites readily, so be sure have the preparation of such food (fries) under constant control. Hotplates may not be left in operation empty, without any dishes on top.
- Page 12 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
- Page 13 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (Monaco) Limited warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
