Tearing Paper - Extech Instruments S4000T User Manual

Note: Pull paper Roll Leader Out of Printer. Note direction of paper travel.
Make sure some supply (2-3 inches) extends beyond the top of the paper supply well.
While pressing Paper Door Release button, Close paper door.
Close the paper door and press close as shown in Figure 7.
Press paper door down and let go off the Paper Door Release button as shown in Figure 7.
Turn on the printer by pressing Power button and test the paper advance function by
pressing the Paper Feed button. Verify that paper advances correctly.
Note: Paper Supply Roll
To prevent any possible damage to the printhead mechanism, it is important to verify that the
paper has not been fastened to the inside core in any way. The paper should be wound on the
core in such a way that the end of the paper will unwind freely from the core. If fastened by tape
or glue, the core will be pulled into the mechanism causing jamming and possible gear damage.
Proper paper roll supplies are available from Extech as P/N 757064.

2.2 Tearing Paper

The printer's paper door acts as a tear bar. Pull one edge of the paper against the tear bar as
indicated, then tear down and across against the tear bar to tear the paper. See Figure 8 for
details.
The tear may have sharp edges
Note: Using the tear bar is the only way to tear the paper.
Note: Pulling up and pulling sideways without using the tear bar can cause a paper jam due to
paper misalignment in the print head mechanism
S4000T User's Guide

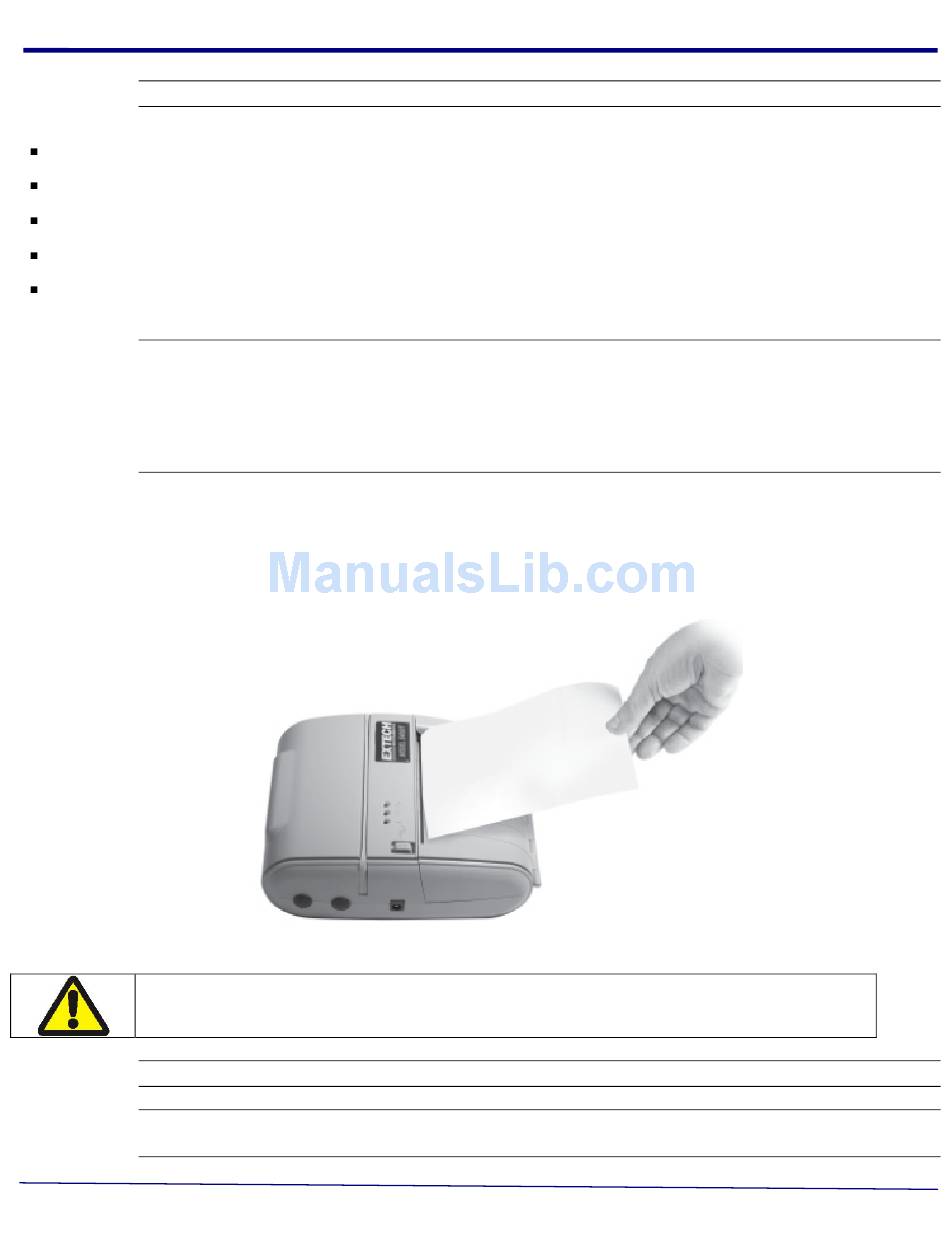

FIGURE 8: TEARING PAPER
Rev 1.2 12
