1.3 Reading the LED Status

The illustration below points out the location of the LED indicators described in Table 1.
This table explains the LED indicator status. Refer to Figure 1 for the locations described for
ON/OFF and FEED pushbutton switches and AC adaptor socket.
LED INDICATOR
Communication
Status
LED # 1
Battery
LED # 2
Magnetic
Card
Reader
(MCR) Status LED #
3
Note: Refer to the troubleshooting guide to determine error or fault condition.
S4000T User's Guide

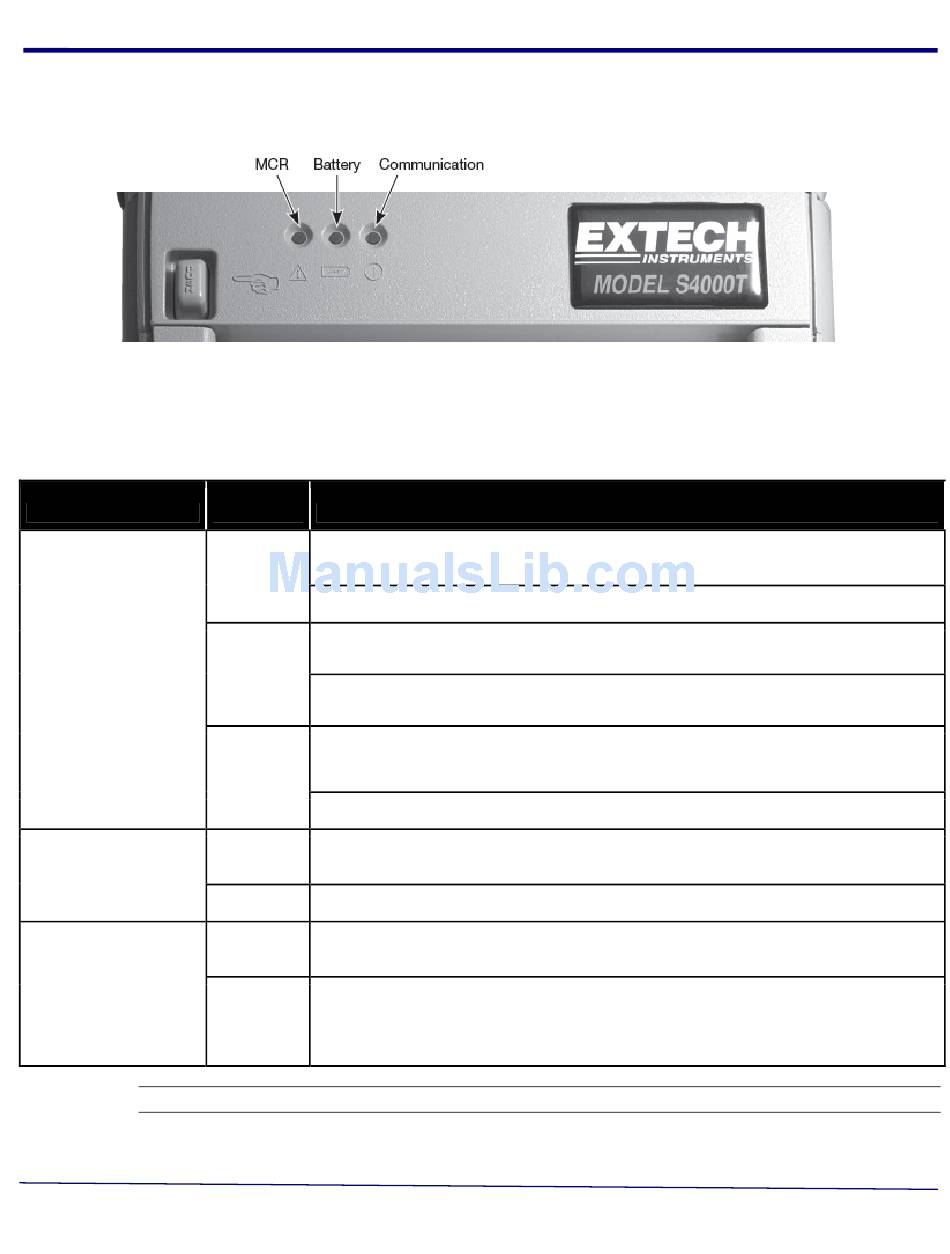

FIGURE 3: LED INDICATOR LOCATIONS
Table 1 - Reading the LED Status
State
Flashing Green indicates that Power is ON and that the printer is in RS232 serial
On -
or IrDA mode.
Green
Steady Green state when communicating with host.
Flashing Blue indicates that Power is ON and that the printer is in Bluetooth
mode.
On - Blue
Steady Blue state during transmit/receive.
Flashing Orange indicates the power is ON and that the printer is in 802.11
On -
mode.
Orange
Steady Orange state during transmit/receive.
On - The battery charger is charging the battery at a fast rate. The LED will turn off
Yellow when the battery is fully charged
On - Red The battery voltage is low and needs charging
On - • Indicates that MCR is ready to accept data.
Green • Indicates that SCR is ready to accept data.
• Steady Red, indicates an MCR/SCR fault condition or a printer error. The
printer is not ready to accept data.
On - Red
• Printer is out-of-paper or Paper door is open.
• Flashing Red indicates the printhead is hot and printing is paused.
Status
Rev 1.2 9
