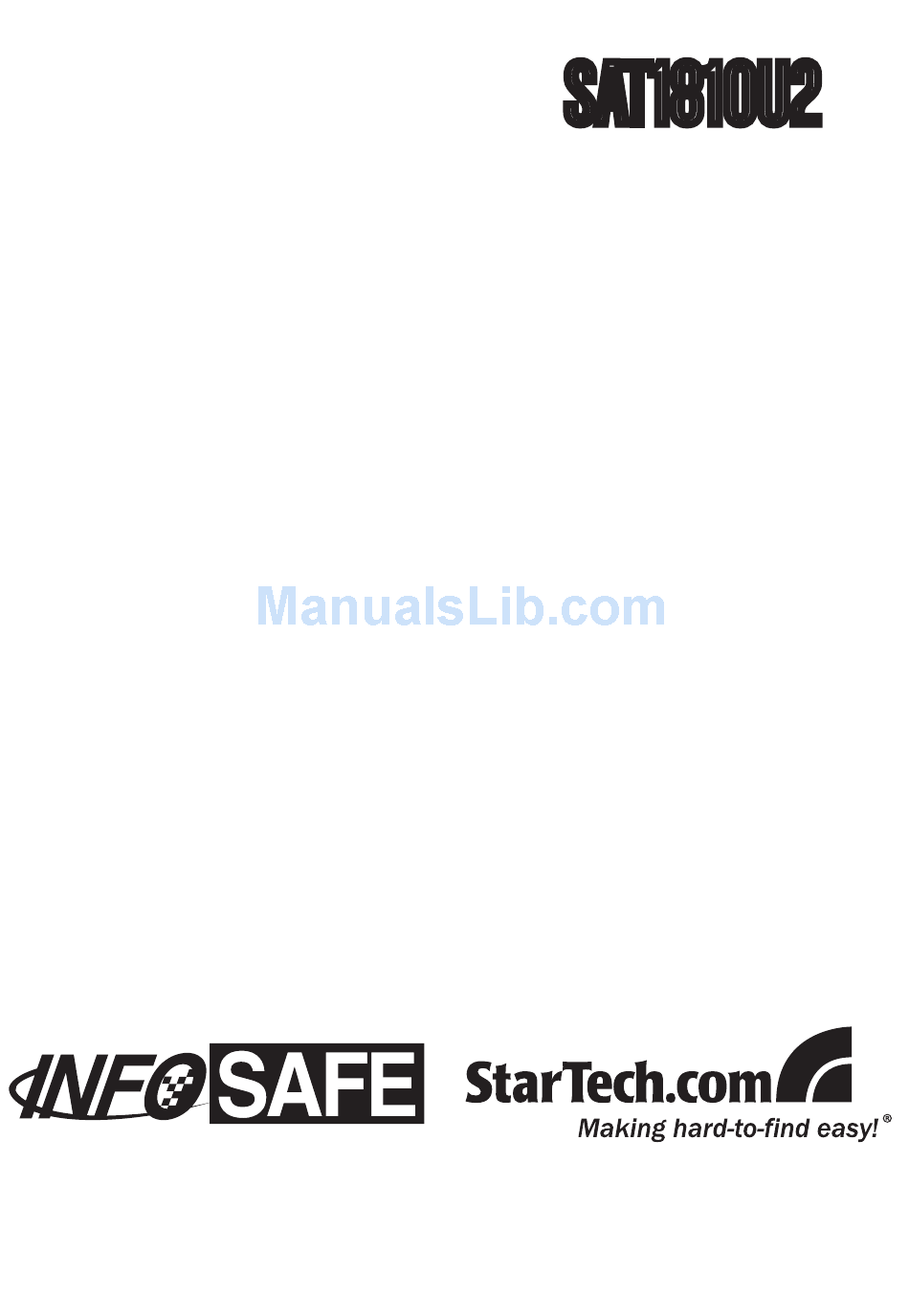

- Page 1 SAT1810U2 Instruction Manual SATA Hard Drive Enclosure 1.8” USB 2.0 to Micro SATA External Hard Drive Enclosure...
- Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
-
Page 3: Table Of Contents
Table of Contents Introduction ............... 1 Packaging Contents.............. 1 System Requirements ............1 Installation ..............2 Hardware Installation ............2 Driver Installation ..............3 Using the Enclosure ..........4 Specifications ............6 Technical Support ............. 7 Warranty Information ..........7... -
Page 4: Introduction

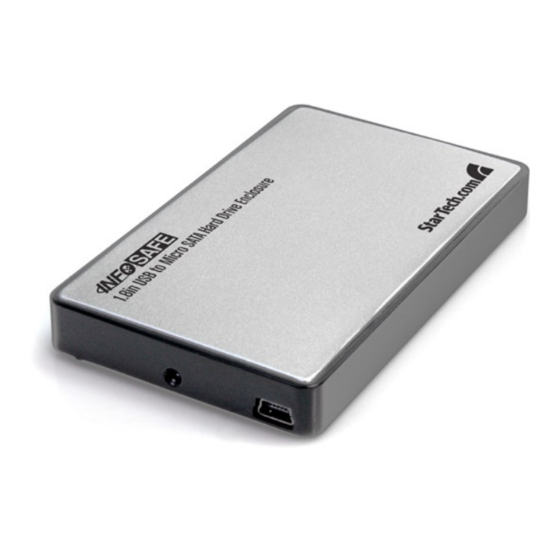

Introduction The StarTech.com 1.8” USB 2.0 to Micro SATA external hard drive enclosure allows you to turn a 1.8” Micro SATA hard drive or SSD into a portable external storage solution. Connected through USB 2.0, this sturdy yet lightweight enclosure offers a cost-effective way to create an ultra portable storage solution that is powered by USB, eliminating the need for additional power adapters. -
Page 5: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Remove the small screw from the rear panel of the enclosure. Power/Activity LED Rear Panel screw USB mini-B... -
Page 6: Driver Installation
If using a 5mm drive, place the two foam pads on the bottom of the drive tray. The foam pads are not required if using an 8mm drive. Foam Pads Place the drive into the tray and then slide the drive onto the connector. Replace the top cover. -
Page 7: Using The Enclosure
Using the Enclosure Windows 2000/XP/Server 2003Vista/Server 2008 R2/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. - Page 8 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 9: Specifications
Specifications Bus Interface USB 2.0 Chipset ID Sunplus SPIF301 Connectors 1 x USB mini-B LEDs 1 x Power/Activity Maximum Data Transfer Rate USB 2.0: 480Mbps 1.8” Micro SATA HDD/SSD, with Hard Drive Compatibility height up to 8mm Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) Humidity... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
