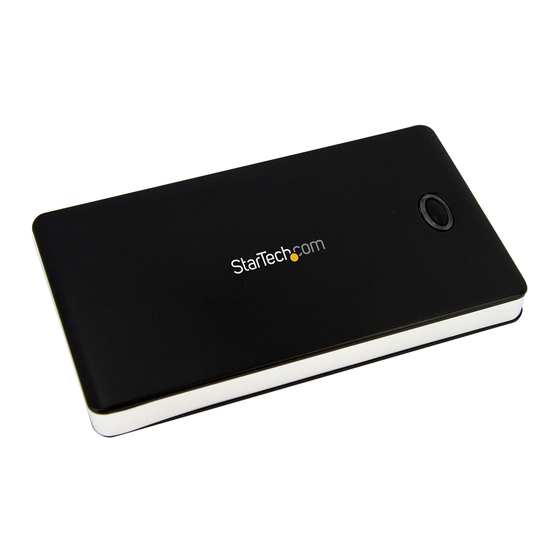

2.5” black usb 2.0 external hard drive enclosure
Hide thumbs Also See for InfoSafe SAT2510BU2B:

Advertisement

Quick Links

USB 2.0 External Hard Drive
Enclosure
SAT2510BU2B
Instruction Manual
2.5" Black USB 2.0 SATA
External Hard Drive Enclosure
with One Button Backup

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InfoSafe SAT2510BU2B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com InfoSafe SAT2510BU2B

  • Page 1 SAT2510BU2B Instruction Manual USB 2.0 External Hard Drive Enclosure 2.5” Black USB 2.0 SATA External Hard Drive Enclosure with One Button Backup...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
  • Page 3: Table Of Contents

    Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................3 Backup Software Installation ............3 Features ................4 Specifications ..............5 Technical Support ............6 Warranty Information ............6...
  • Page 4: Introduction

    Introduction Packaging Contents • 1 x SAT2510BU2B enclosure • 1 x USB ‘Y’ Cable • 1 x User Manual • 1 x Software CD System Requirements • USB 2.0 enabled computer ® ® • Microsoft Windows 98SE/ME/XP/Vista, Mac OS Installation Hardware Installation Open the case by pinching the ejection pinhole with a small tipped object and sliding off the back cover of the case.
  • Page 5 Place the HDD into the case and slide it into the SATA connector. Place the foam to fill up the gap between the HDD and enclosure. Assemble the case by sliding on the back cover. No screw is needed.
  • Page 6: Driver Installation

    Driver Installation ® ® Microsoft Windows 2000 or later, and Mac OS 10.x do not require driver installation, as this enclosure is natively supported. Installation for Windows ® 98SE/ME Insert the software CD into the CD-ROM drive. If Autorun does not play automatically, double-click “autorun.exe” from the CD.
  • Page 7: Features

    pop-up windows then select “Options”. Check the Enable “One Touch Backup” column. Features One Touch Backup Button Ejection pinhole USB connector DC power input (adapter or USB-DC cable)
  • Page 8: Specifications

    Specifications USB 2.0 (backwards compatible Interface with USB 1.x) 1 x USB type B External Connectors 1 x DC power connector 1 x 7-pin SATA data Internal Connectors 1 x 15-pin SATA power 2.5” SATA hard drive, 9.5mm Hard Drive type height Maximum Data Transfer Rate USB - 480 Mbps...
  • Page 9: Technical Support

    Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads.
  • Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
