Summary of Contents for StarTech.com SAT5210U2E

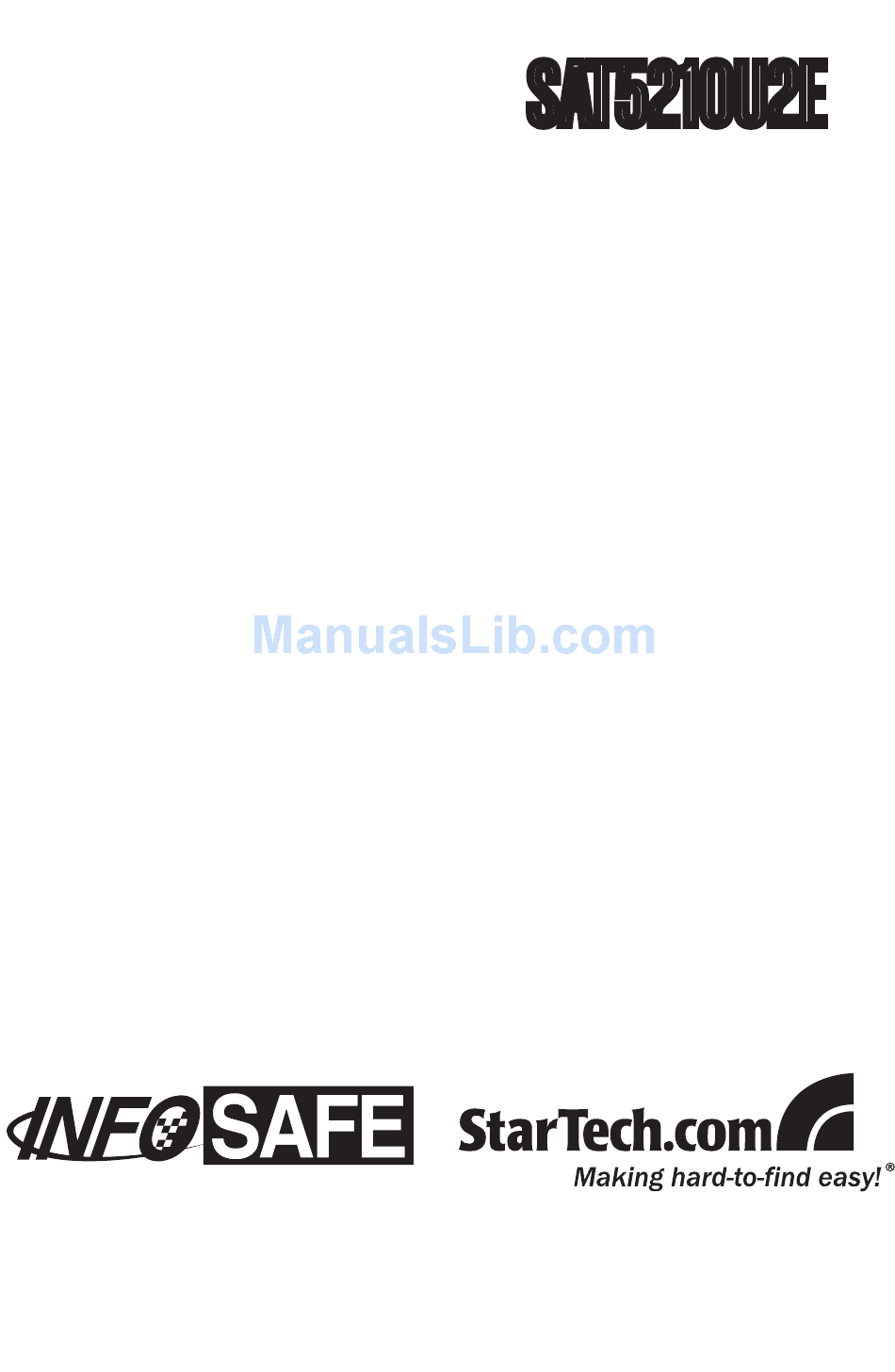

- Page 1 SAT5210U2E Instruction Manual SATA Optical Drive Enclosure 5.25” USB 2.0 eSATA to SATA Optical Drive External Enclosure...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................4 How to Use ..............4 Specifications ..............6 Technical Support ............7 Warranty Information ............7... -
Page 4: Introduction

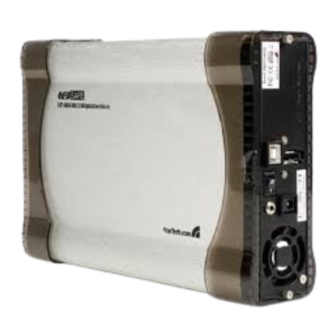

Introduction Thank you for purchasing a StarTech.com InfoSafe 5.25” eSATA/USB 2.0 SATA Optical Drive External Enclosure. This versatile solution provides a cost-effective way to turn any 3.5” SATA 1.5/3.0 Gbps hard drive, or 5.25” optical drive into an external solution. Equipped with both USB 2.0 and eSATA interfaces for maximum data transfer capability... -
Page 5: Installation
Power Switch Cooling Fan USB connector Power connector eSATA connector Retaining Screws Installation Hardware Installation Loosen the Retaining Screws, on the rear panel. Please note that these screws do not need to be removed, rather loosened enough to allow the Hard Drive Tray to slide out from the enclosure. Slide the Drive Tray out from the Enclosure. - Page 6 Once the drive interface connection has been made, please fasten the drive (label side up) to the Drive Tray using the screws provided: If installing a 3.5” hard drive, please skip to step #6. If installing an optical drive: Once the SATA connections to the drive have been secured, and the drive has been fastened to the Drive Tray, remove the plastic cover from the Front Panel as pictured below, to allow access to an installed optical drive.
-
Page 7: Driver Installation
If you will be using an eSATA connection, insert one of the connectors provided by an eSATA cable (not provided - please see Accessory Products from StarTech.com for a solution), or the USB type B connector provided by a USB A-B cable (provided), into the corresponding port on the rear panel of the Drive Enclosure. - Page 8 Insert the cylindrical, metal connector provided by the Power Adapter (included) into the DC Power Port located on the rear panel of the Enclosure. Connect the remaining end of the Power Adapter to an available power outlet. Move the Power Switch on the rear panel of the Enclosure to the ON position.
-
Page 9: Specifications
Specifications USB 2.0 Bus Interface SATA 3.0Gb/s 1 x USB type B External Connectors 1 x eSATA 1 x Power Connector Fans 1 x 40mm LEDs Power Chipset ID JMicron JMB20336 USB 2.0: 480Mb/s Maximum Data Transfer Rate eSATA: 3.0Gb/s Power Adapter 12VDC, 2A, center positive Dimensions... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
