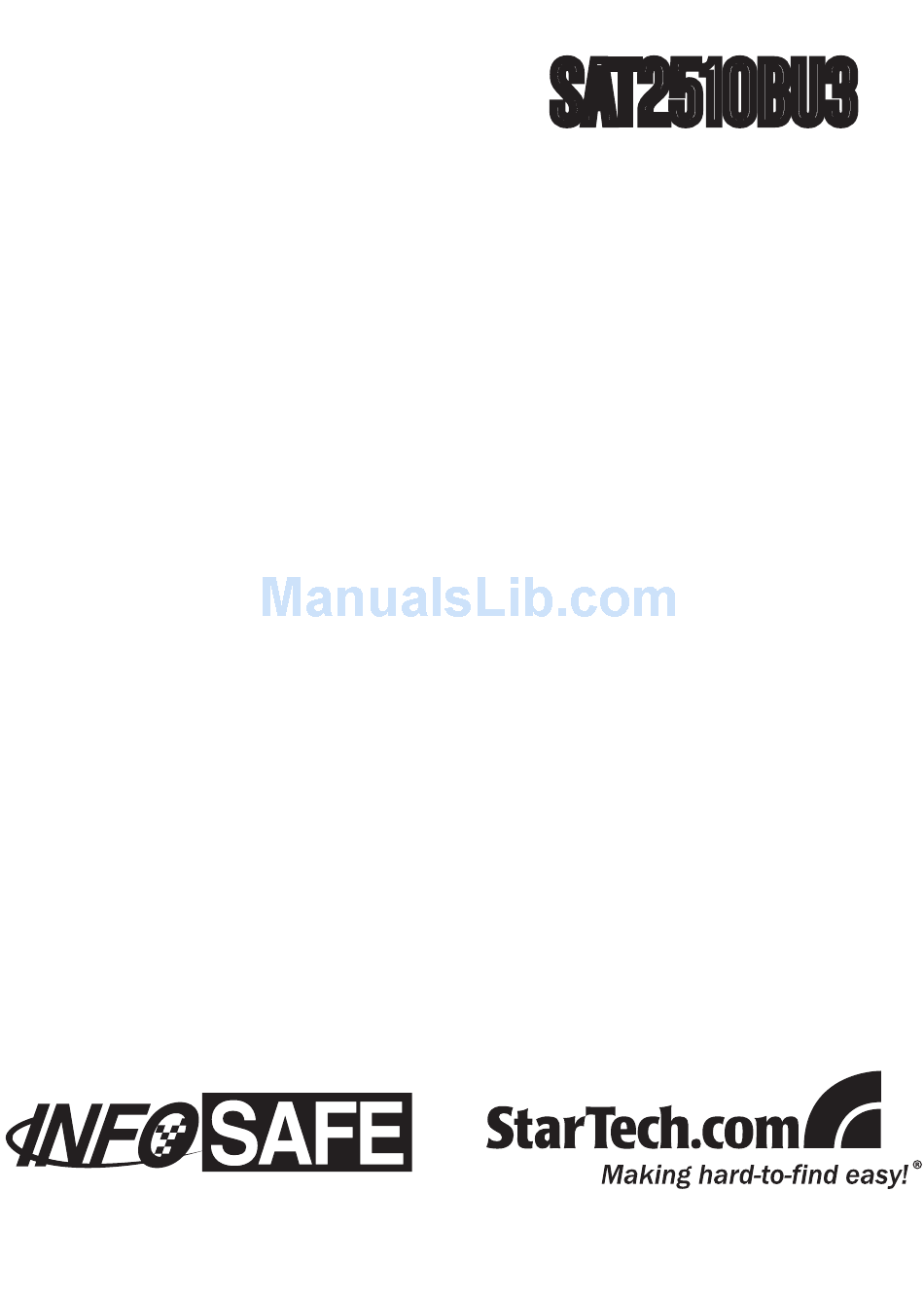

- Page 1 SAT2510BU3 Instruction Manual SATA Hard Drive Enclosure 2.5” SuperSpeed USB 3.0 to SATA Hard Drive Enclosure...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................3 Verifying Installation ..............3 Using the Enclosure ............4 Specifications ..............6 Technical Support ............7 Warranty Information ............7... -
Page 4: Introduction
Introduction This StarTech.com SuperSpeed USB 3.0 2.5” enclosure lets you connect a standard 2.5” SATA hard drive through USB 3.0. Supporting data transfer rates of up to 5 Gbps, this external HDD enclosure delivers access to files at lightning fast speeds - 10x that of USB 2.0, and 60% faster than eSATA (SATA revision 2). -
Page 5: Installation
Power/Activity USB 3.0 micro-B connector Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Slide both the top and bottom covers of the enclosure off to reveal the plastic frame of the enclosure. -
Page 6: Driver Installation
Using the provided USB 3.0 micro-B cable, connect the enclosure to an available USB port on the computer system. This cable can be connected to any type of USB type A port, not just USB 3.0 ports. NOTE: A USB 2.0 micro-B cable can also be substituted for the USB3.0 cable, but will not allow for USB 3.0 speeds, if connected to a USB 3.0 port. -
Page 7: Using The Enclosure
Double-click on the “Disk Drives” option. A new disk drive should be listed under this category. It will typically contain the make/model of the hard drive you have installed in the enclosure. Using the Enclosure Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. - Page 8 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 9: Specifications
Specifications Bus Interface USB revision 3.0 Chipset ID ASMedia ASM1051 Connectors 1 x USB3.0 micro-B LEDs 1 x Power/Activity 2.5” SATA hard disk/solid state Compatible Hard Drives drives, 9.5mm height Maximum Data Transfer Rate USB 3.0: 5Gbps Power Adapter None Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
