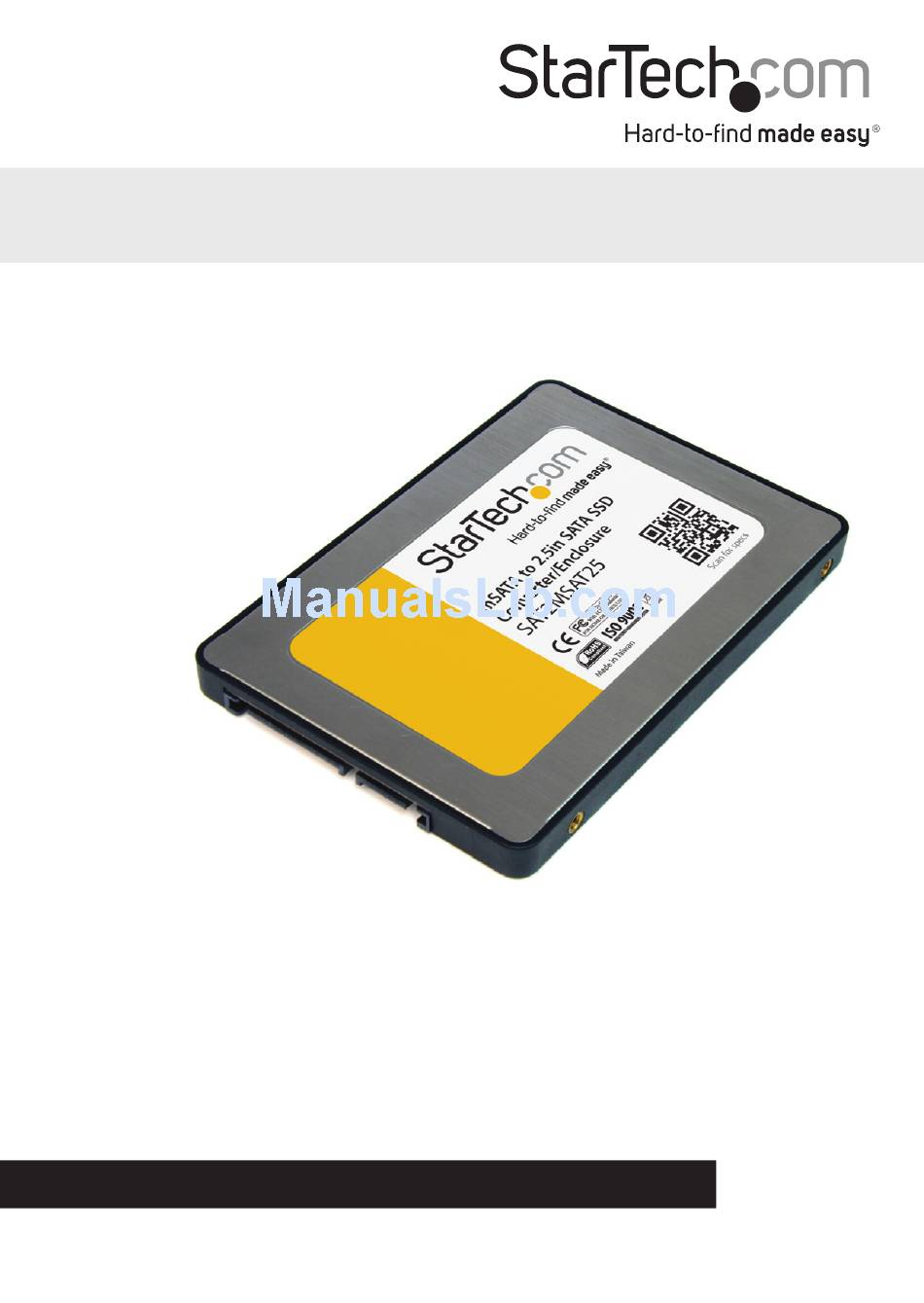

2.5" SATA to mSATA Solid State Drive
Enclosure/Adapter
SAT2MSAT25
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/14/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com SAT2MSAT25
Summary of Contents for StarTech.com SAT2MSAT25
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/14/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................3 Using the Storage Device ..............4 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction The SAT2MSAT25 mSATA to 2.5in SATA Solid State Drive Converter turns an mSATA (Mini SATA) mini SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA drive can be used. Featuring all of the standard mounting points that a normal 2.5in hard drive uses, the converter can be installed into enclosures, hard drive docks or into desktop and laptop computers. -
Page 5: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
the adapter board. Fasten the mSATA drive to the board with the small mounting screws provided. Make sure not to over-tighten the screws, or you may damage the mSATA drive. 4. Place the panel back on the enclosure and replace the 4 screws. Driver Installation No driver or software installation is required. -
Page 7: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. - Page 8 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer.
-
Page 9: Specifications
Specifications Number of Drive Bays Host Interface SATA External Connectors 1 x 22-pin SATA Data + Power male Internal Connectors 1 x 52-pin mSATA female LEDs 52-pin Full Length mSATA (Mini SATA) Compatible Drives Solid State Drive Enclosure Material Aluminum, Plastic Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
