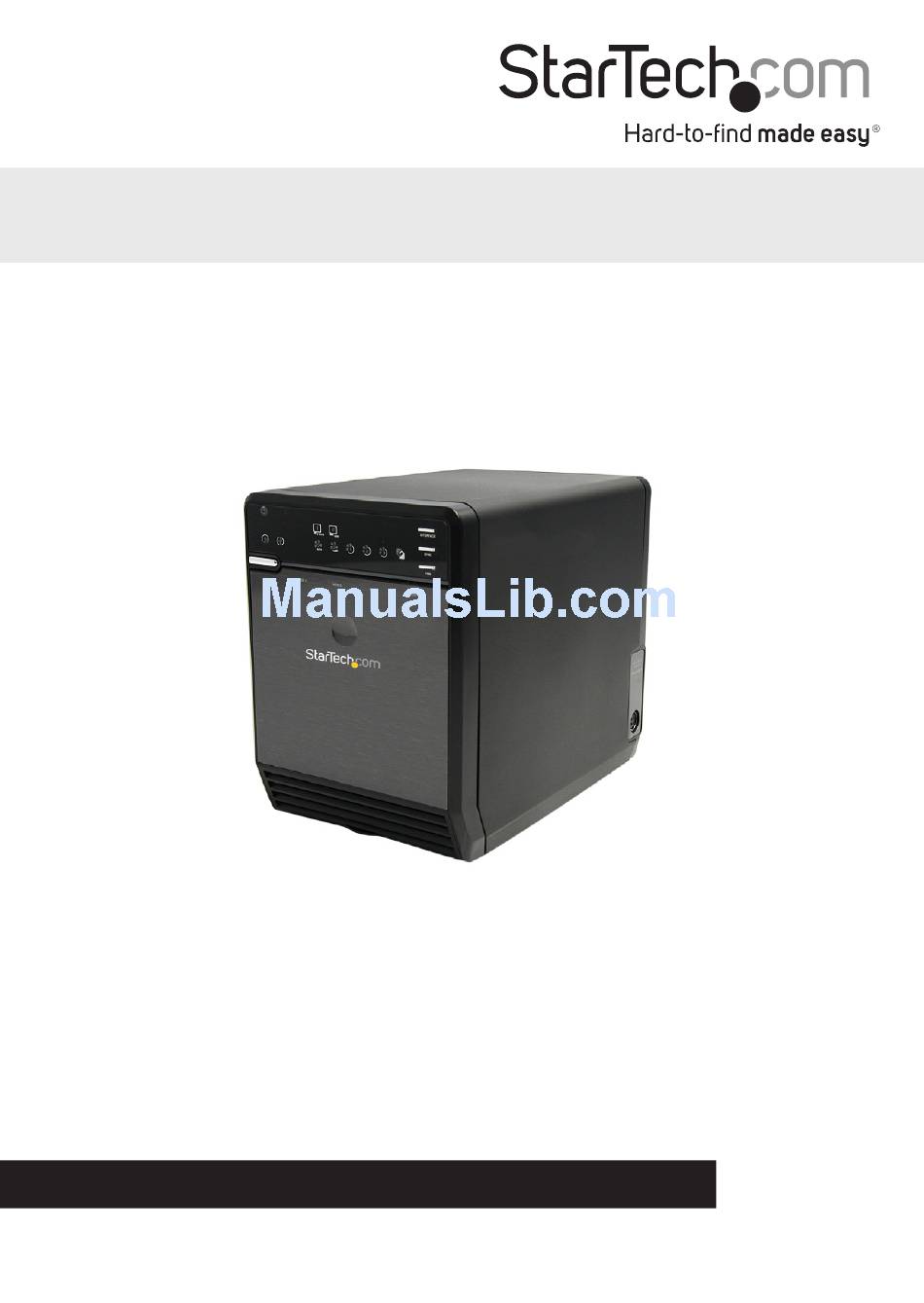

Instruction Manual
4 Drive eSATA USB Multi Bay External Hard
Drive Enclosure
SAT3540U2E
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/24/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SAT3540U2E
Summary of Contents for StarTech.com SAT3540U2E
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/24/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................3 Driver Installation ............................4 How to Use ....................5 eSATA/USB Connectivity ......................... 5 Fan Speed Control ............................ 5 Synchronization Mode ..........................6 Troubleshooting ..................6 Specifications ..................7 Technical Support ..................8... -
Page 4: Introduction
Introduction StarTech.com’s SAT3540U2E External Multi Bay Enclosure is a high-performance 4-drive SATA enclosure that connects to host systems through eSATA and/or USB. Packaging Contents • 1 x SAT3540U2E enclosure • 1 x Screw driver and screw kit • 4 x Hard Drive Handles • 1 x Universal Power Adapter with 3 Power Cords (NA/UK/EU) -
Page 5: Installation
Installation Front View Power LED eSATA/USB Mode LED eSATA/USB Interface Switch Link LED Sync Switch Fan Mode Fan Switch Drive Power/ Activity LED Power Button Sync Mode Front Door release Fan Speed Rear View 80mm Cooling Fan (removable) USB port eSATA port Instruction Manual... -
Page 6: Hardware Installation
Hardware Installation 1. Secure the included Hard Drive Handles to the hard drives with the supplied screws and screw driver. 2. Press the front door in to release the latch and open the door. The door is also removable for easier access. 3. -
Page 7: Driver Installation
4. Remove the card board inserts (if first time setup) and then insert the hard drives into the slots. If installing less than 4 drives, ensure a drive is installed in the bottom slot. This will help when reinstalling the metal cage. Hard drives can be removed from the enclosure by pressing down on the handles, then pulling them out. -
Page 8: How To Use
How to Use eSATA/USB Connectivity The enclosure features two separate host interfaces, which can be physically connected at the same time, however only one will be active at a time. The enclosure could even be connected to two different computers, one over eSATA and the other over USB, and then switched between. -
Page 9: Synchronization Mode
Status Description Smart Fan Auto Mode Smart Fan Manual Mode Low Speed - 1200RPM (Manual Mode only) Medium Speed - 1800RPM (Manual Mode only) High Speed - 2500RPM (Manual Mode only) Pressing the ‘Fan’ button will toggle between Auto and Manual modes and toggle between the different manual fan speeds. -
Page 10: Specifications
Specifications USB 2.0 Bus Interface SATA 3.0 Gb/s 1 x USB type B External Connectors 1 x eSATA* 1 x DIN power connector Chipset Exar XRS10L240 3 x Fan Speed 2 x Fan Mode 2 x Interface LEDs 2 x Interface Link 1 x Power 1 x Sync Mode USB 2.0: 480 Mbps... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
