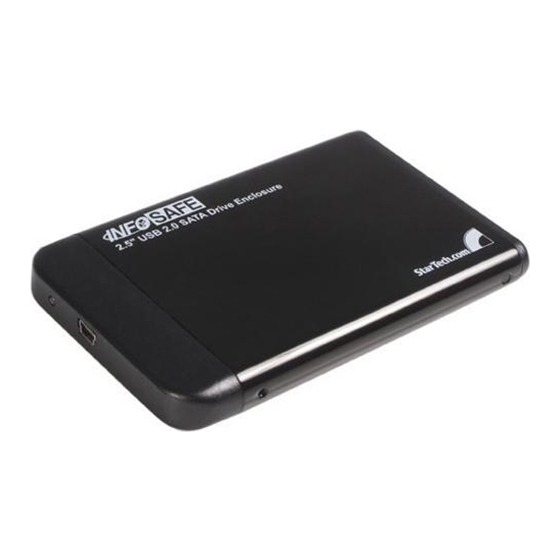

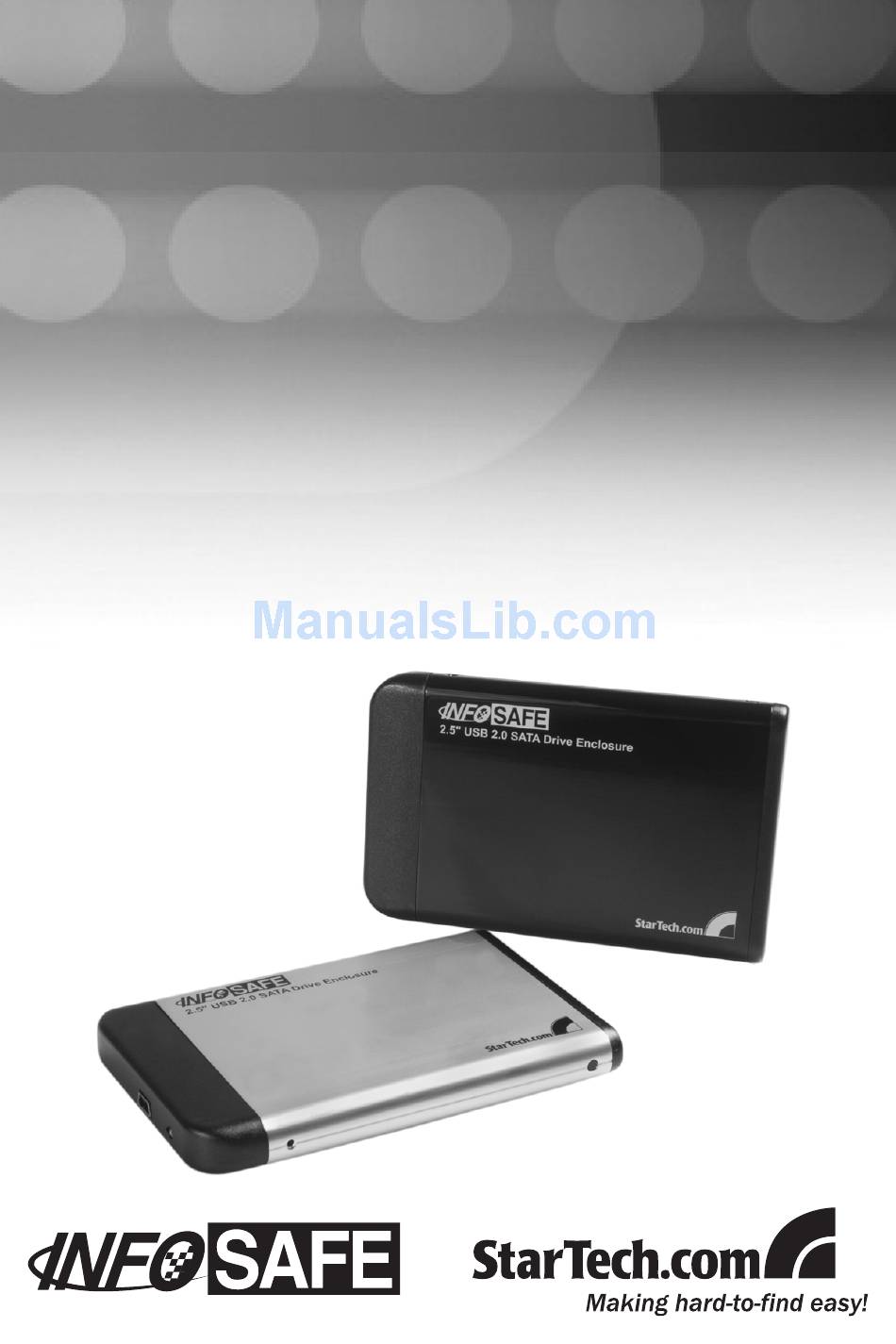

- Page 1 InfoSafe Mobile Drive Enclosure SAT2510U2 SAT2510BU2 IDE2510U2...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Table of Contents Introduction ... 1 Features ...1 System Requirements ...1 Package contents ...1 Installation and Usage ... 2 Installing a hard drive in the Enclosure ...2 Installing Drivers (Windows 98SE) ...4 Connecting the Hard Drive ...4 Powering the Drive Enclosure ...5 LED Indicator ...5 Disconnecting the Hard Drive ...5 Windows 98SE ...5... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com InfoSafe external hard drive enclosure. This product allows you to turn virtually any standard 2.5” notebook computer hard drive into a portable storage solution. The perfect solution for storing multimedia, digital imaging, audio, and other demanding applications, this product can be installed easily to suit virtu- ally any storage necessity. -
Page 5: Installation And Usage
Installation and Usage Indicator Mini USB Connector Installing a hard drive in the Enclosure CAUTION:Use caution when installing a hard drive in the enclosure. Excessive shock or force could damage the drive and/or the enclosure, resulting in data loss. Always ensure that you are properly grounded when handling a hard drive or the enclosure tray, since electronic components can be damaged by static electricity. - Page 6 Attach the 2.5” hard drive to the interface connector (located on inverse of top panel), ensuring a snug connection. Do not use excessive force, to avoid damaging the drive and the the enclosure. Insert the top panel and attached hard drive into the bottom panel. Re-fasten the screws that were removed in step 2.
-
Page 7: Installing Drivers (Windows 98Se)
Installing Drivers (Windows 98SE) Note: Windows ME/2000/XP/2003 Server and supported versions of Mac OS all support removable hard drives without additional software. As such, please ensure you have the most current updates installed. Com- puters running Windows 98SE need to install support for USB removable mass storage devices prior to using the enclosure: Insert the installation CD into your computer’s CD-ROM or compatible optical drive. -
Page 8: Powering The Drive Enclosure
Powering the Drive Enclosure The hard drive enclosure requires no external power supply, as it is ca- pable of receiving enough power (5V/500mA) from the USB Bus to which it is connected. Please ensure that both USB type A connectors are inserted into available ports on the host computer. -
Page 9: Mac Os 8
Instruction Manual Removing the connected drive prior to receiving notification that it is safe to do so, could result in losing or corrupting data stored on the drive. Once the Safe to Remove Hardware message appears, please discon- nect the enclosure from the computer by removing the USB connection. Mac OS 8+ To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. -
Page 10: Specifications
Specifications Hard Drive support Connectors Drive Capacity support Maximum Data Transfer Rate Chipset Operating System support Dimensions Weight Regulatory Certifications Instruction Manual IDE2510U2: 2.5” IDE (ATA 100) SAT2510U2: 2.5” SATA / SATA II SAT2510BU2: 2.5” SATA / SATA II USB mini B Female 120GB, 5400 RPM 480Mb/s IDE: Genesis GL-811E... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
