3

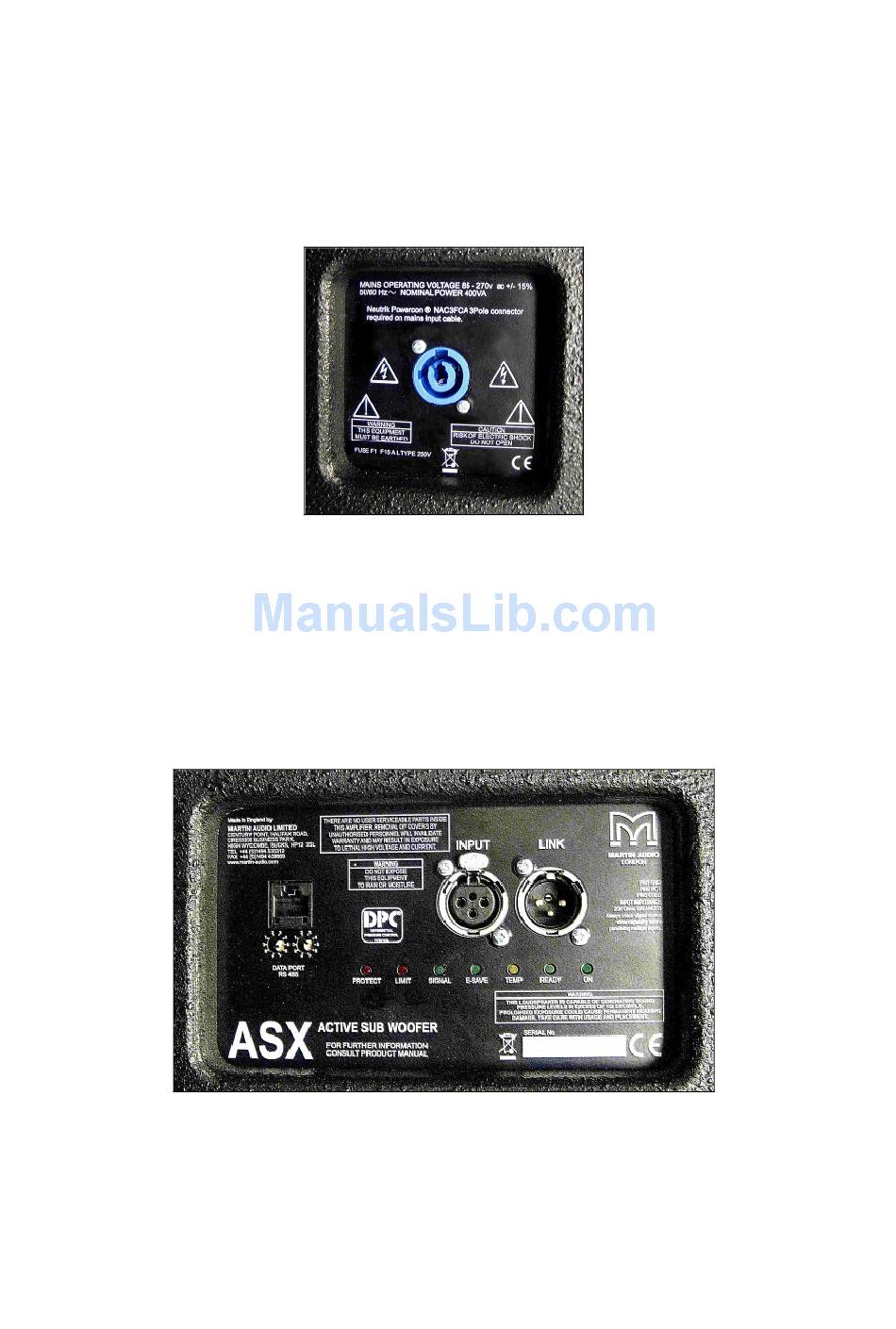

Rear connector panels

Mains inlet
The ASX mains inlet at the rear is a 20A Neutrik Powercon® chassis socket. A matching
20A Neutrik Powercon® NAC3FCA 3-pole cable plug is provided with the ASX subwoofer for
connection to the mains supply by a suitably qualified person. This apparatus must be
earthed.
Mains inlet panel
See section 4 for electrical safety details.
Signal input, data port and indicators
A separate rear panel provides a male and female pair of XLR connectors for analogue
signal input and link, an RJ45 socket for RS485 programming and control, two rotary
switches for setting the 2-digit RS485 address and seven function indicators – see below.
Signal input, control and indicator panel
All material © 2009. Martin Audio Ltd. PRELIMINARY
