Martin Audio Compact Dual-driver Subwoofer WS2A Specifications

WS2A
Compact dual-driver subwoofer
features
Q
Dedicated ultra-low frequency system
Q
Twin high efficiency 15" (380mm) transducers
Q
Extended response to 30Hz (-10dB)
Q
Multi-laminate birch plywood construction
applications
Q
Theatre sub-bass
Q
Live sound reinforcement
Q
Nightclub system sub-bass

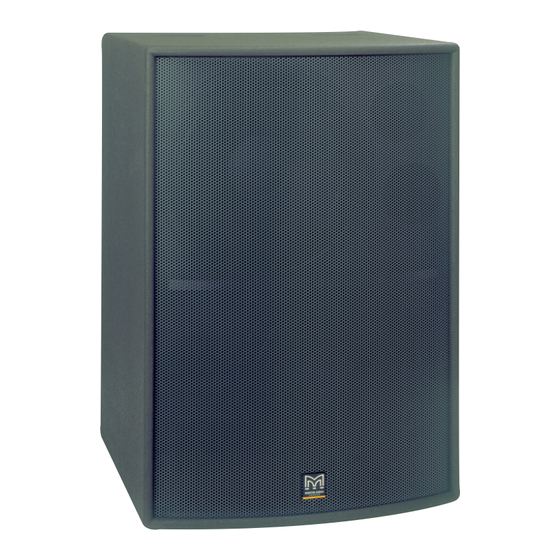

The WS2A is a dedicated subwoofer for use with Wavefront
Series full-range enclosures in situations where ultra-low
frequency enhancement and increased system headroom are
required.
It will extend the power bandwidth of the complete system to
below 35Hz and is capable of reproducing levels of deep bass
normally associated with much larger enclosures.

overall dimensions

technical specifications

TYPE Compact sub-bass
FREQUENCY RESPONSE (1) 38Hz-100Hz ± 3dB
-10dB @ 30Hz
DRIVERS 2 x 15" (380mm) / 4" (100mm) voice coil
RATED POWER (2) 800W AES, 3200 peak
RECOMMENDED AMPLIFIER 700-1200W into 4 ohms
SENSITIVITY (3) 99dB
MAXIMUM SPL (4) 126dB continuous, 132dB peak
NOMINAL IMPEDANCE 4 ohms
CROSSOVER 100Hz active
FINISH Textured grey paint
PROTECTIVE GRILLE Grey perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 4 x 4" (100mm) castors
1 x Mounting pole socket
Lid clips
DIMENSIONS (W) 572mm x (H) 827mm x (D) 585mm
(W) 22.5ins x (H) 32.5ins x (D) 23ins
WEIGHT 60kg (132lbs)
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
www.martin-audio.com
