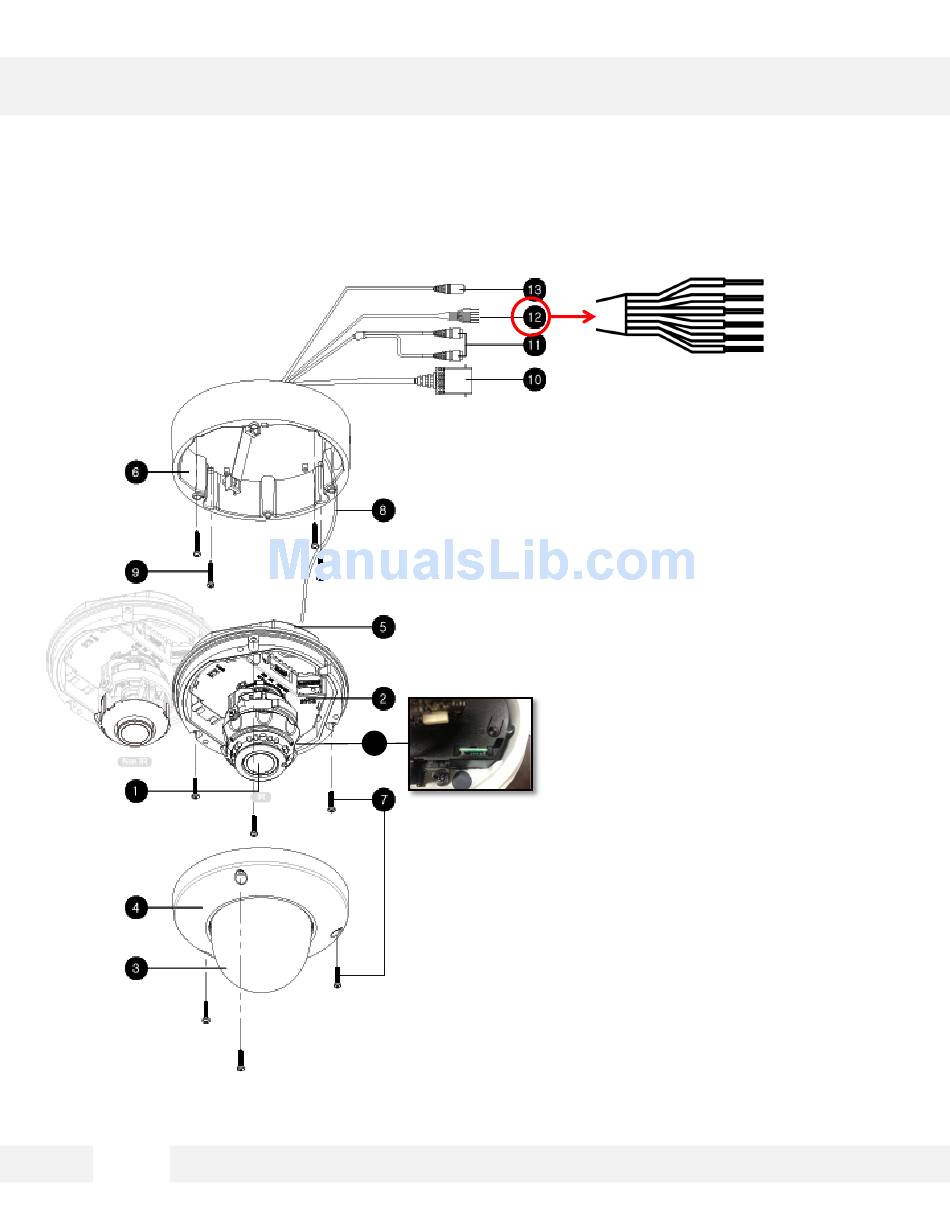

PARTS & DESCRIPTIONS*
6
14
1. Lens
2. Camera Control Board
3. Bubble
4. Cover Dome
5. Flush Mount Base
6. Surface Mount Plate
7. Assembly Screws
a) T20 M4 X16
8. Safety Wire
9. Mounting Screws
10.RJ45 Connector
11.Audio In/ Out
12.Alarm
13.Power
14.SD Card Slot
SENSOR+ (Green)
SENSOR- (Yellow)
RELAY- (Orange)
RELAY+ (Red)
UART+ (Brown)
UART- (Black)
