8

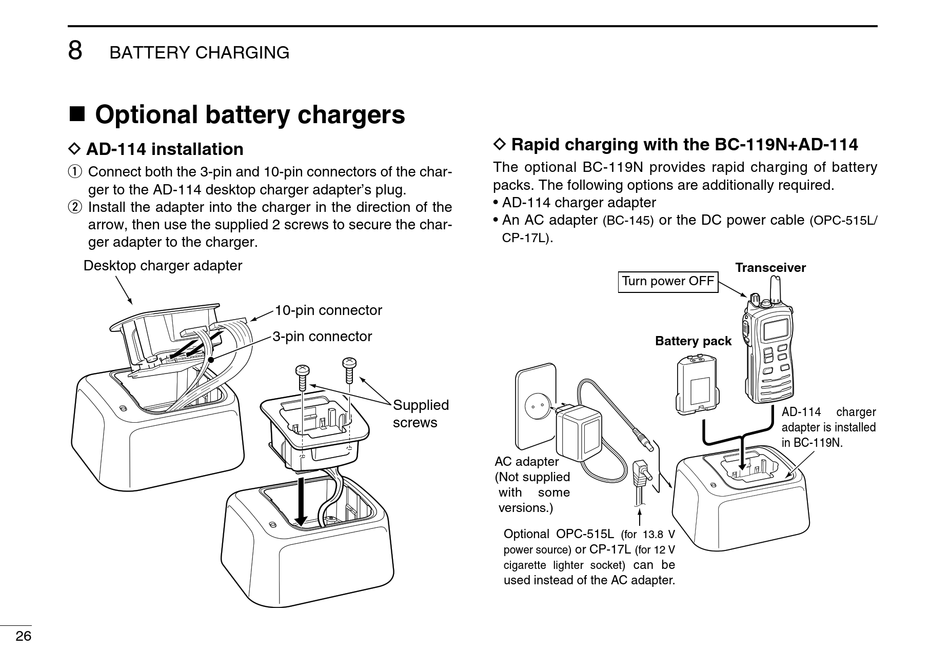

BATTERY CHARGING
n Optional battery chargers
D AD-114 installation
q Connect both the 3-pn and 10-pn connectors of the char-
ger to the AD-114 desktop charger adapter's plug.
w Install the adapter nto the charger n the drecton of the
arrow, then use the suppled 2 screws to secure the char-
ger adapter to the charger.
Desktop charger adapter
26
10-pin connector
3-pin connector
Supplied
screws
D Rapid charging with the BC-119N+AD-114
The optonal BC-119N provdes rapd chargng of battery
packs. The followng optons are addtonally requred.
• AD-114 charger adapter
• An AC adapter or the DC power cable
(BC-145)
.
CP-17L)
Turn power OFF
Battery pack
AC adapter
(Not supplied
with some
versions.)
Optional OPC-515L
(for 13.8 V
or CP-17L
power source) (for 12 V
can be
cigarette lighter socket)
used instead of the AC adapter.
(OPC-515L/
Transceiver
AD-114 charger
adapter is installed
in BC-119N.
