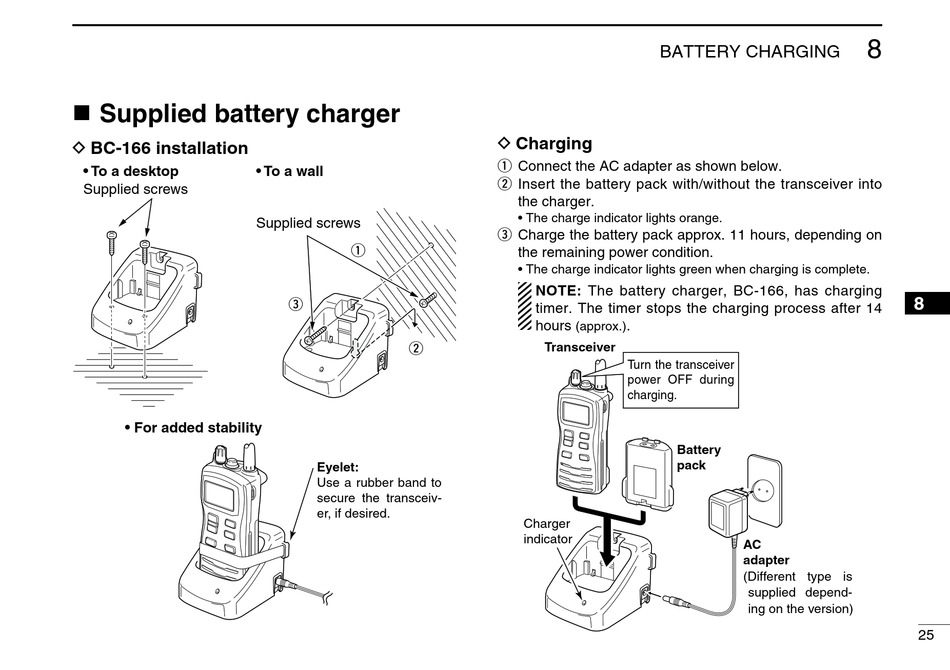

n Supplied battery charger
D BC-166 installation
• To a desktop
Supplied screws
• For added stability
• To a wall
Supplied screws
q
e
w
Eyelet:
Use a rubber band to
secure the transceiv-
er, if desired.
BATTERY CHARGING
D Charging
q Connect the AC adapter as shown below.
w Insert the battery pack wth/wthout the transcever nto
the charger.
• The charge ndcator lghts orange.
e Charge the battery pack approx. 11 hours, dependng on
the remanng power condton.
• The charge ndcator lghts green when chargng s complete.
NOTE: The battery charger, BC-166, has chargng
tmer. The tmer stops the chargng process after 14
hours .
(approx.)
Transceiver
Turn the transceiver
power OFF during
charging.
Battery
pack
Charger
indicator
8
8
AC
adapter
(Different type is
supplied depend-
ing on the version)
25
