Network Trace

This menu helps capture incoming and outgoing packets on the 2N
interface. The file with the captured data can be downloaded and analysed, using,
e.g., Wireshark (www.wireshark.org). Push the Start button to launch capturing and
the Stop button to terminate capturing.
The captured packets are stored in the ring buffer of the size of 4MB. Whenever the
buffer is filled up, the oldest packets are deleted automatically. You are recommended
to reduce the video stream transmission speed for packet capturing below 512kbps.

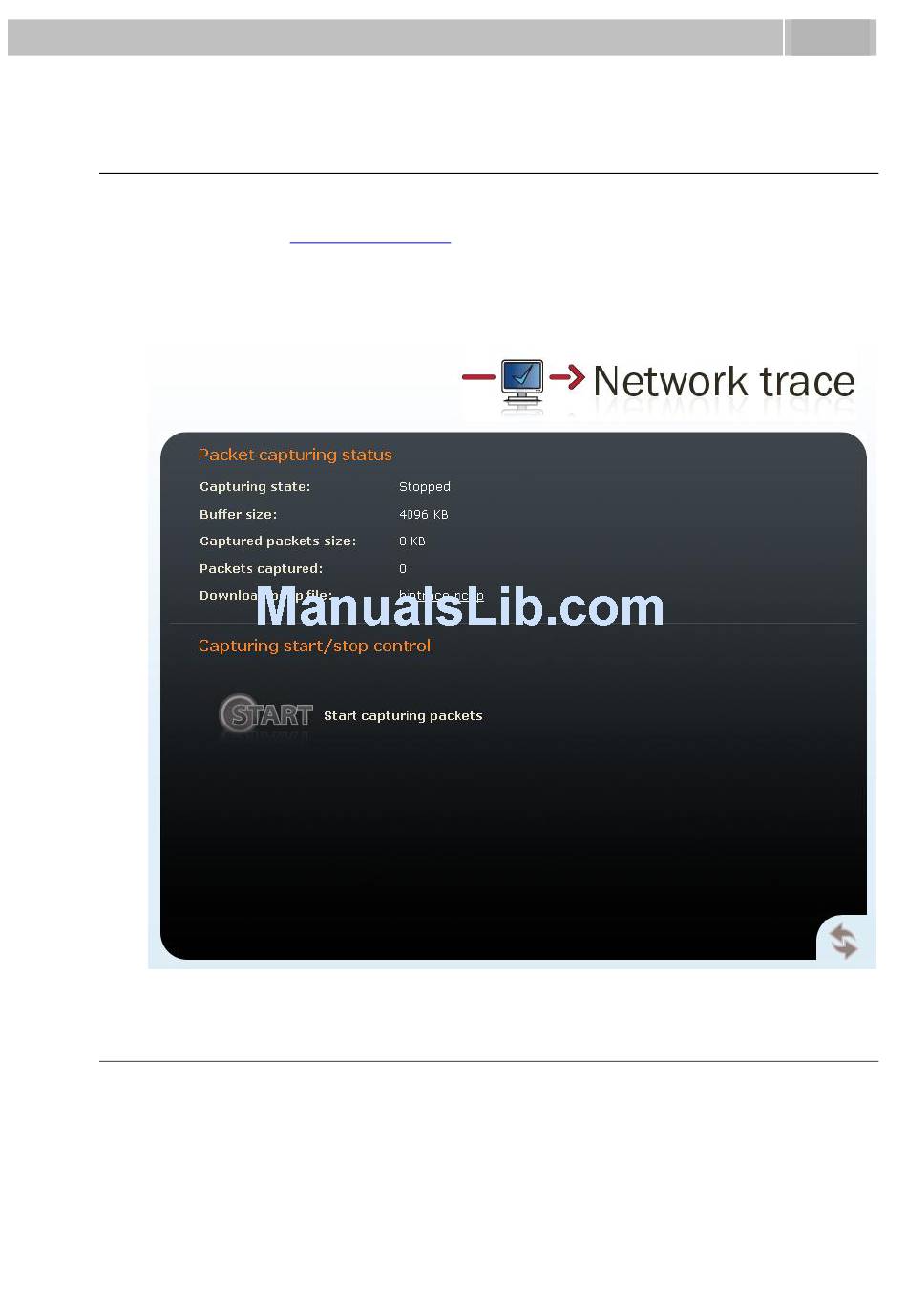

Figure 3.44 Network trace

Licence

This menu is used for entering licence keys, Part Nos. 9137901 and 9137902. Licence
keys upgrade the 2N
IP Basic Units subsection). Contact your local distributor for the licence key to your
®
2N Helios IP.
®
Helios IP functionality (see the Software Facilities of 2N
