MODEL 3140 BICONILOG™ ANTENNA
© EMC TEST SYSTEMS, L.P. – MARCH 2002
REV C – PN 399258
Step 2. Once you have attached both bow-tie elements; with both
hands, rotate the antenna and bow-tie into a vertical
position resting on a flat surface (see Figure 2). The
antenna can now rest by itself on the feet of the balun box,
and the bottom edge of the bow-tie elements.

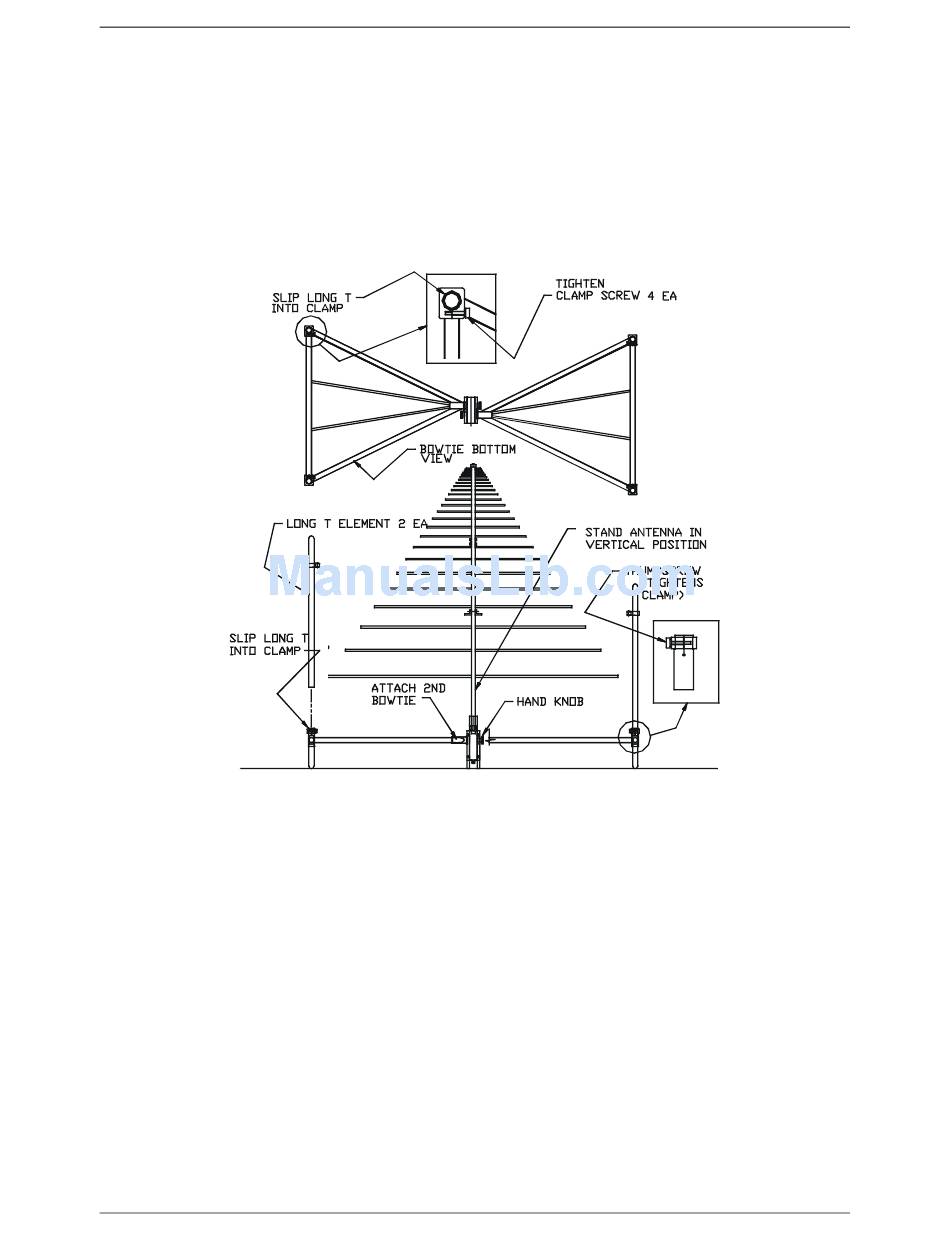

FIGURE 2 - Assembly Steps 2 through 4
Step 3. Attach the other bow-tie element to the antenna balun box
(see Figure 2). The antenna should rest on the balun end
and stand vertically to attach the 2
opposite hand knob.
Step 4. The long T leg elements are installed and clamped to the
bow-ties (Figure 2) with the antenna standing vertical.
Assembly Instructions
nd
bow-tie with the
5
