Assembly Instructions
6
Step 5. The four diagonal struts should be installed. Loosen the
thumbscrews at the mount on the T legs and at the boom
mounts to install the strut ends. Place the pocket of the
straight end facing the raised face of each mount and
tighten the thumbscrew to lock in place (see Figure 3).

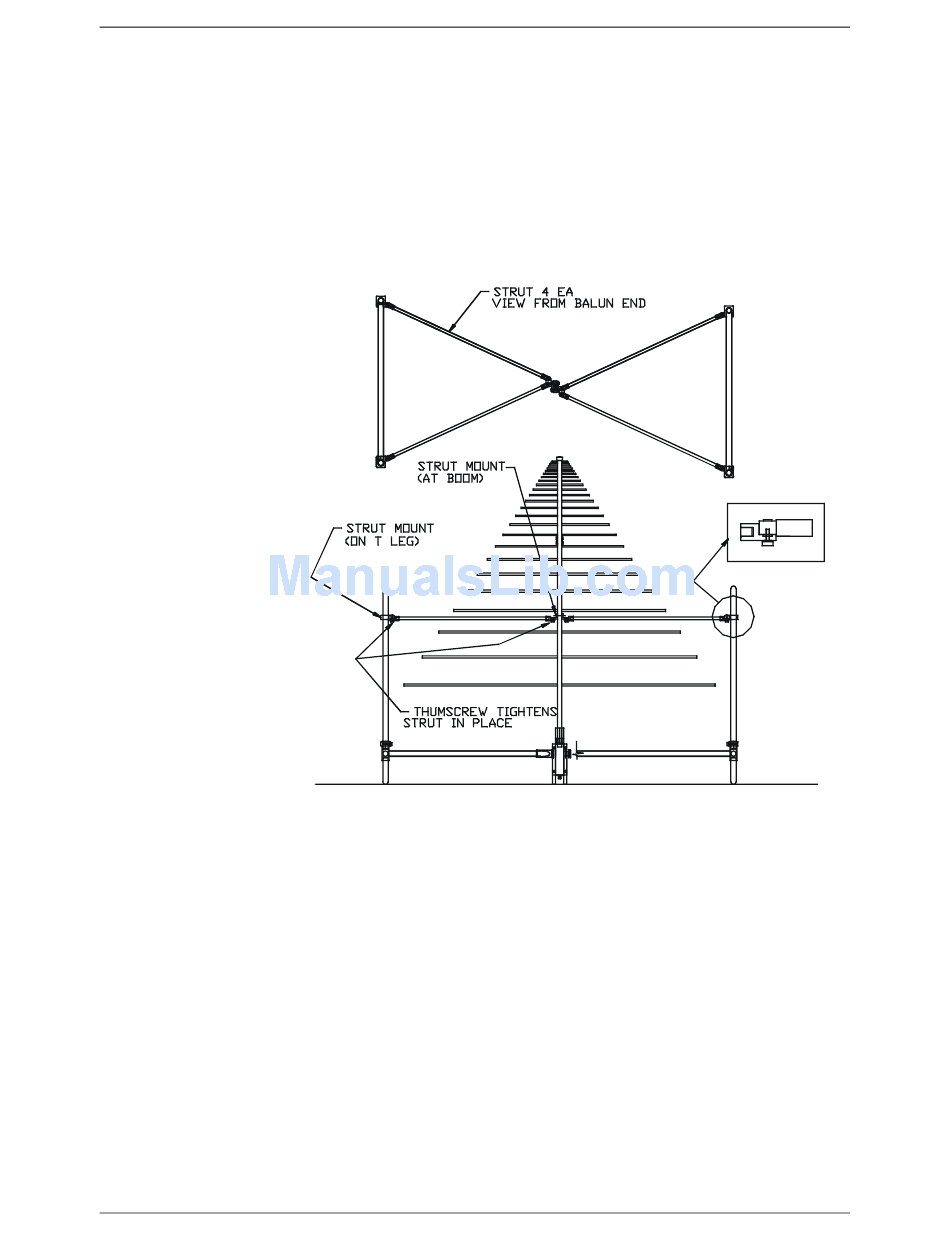

FIGURE 3 – Assembly Step 5
