Summary of Contents for ETS-Lindgren 3110B

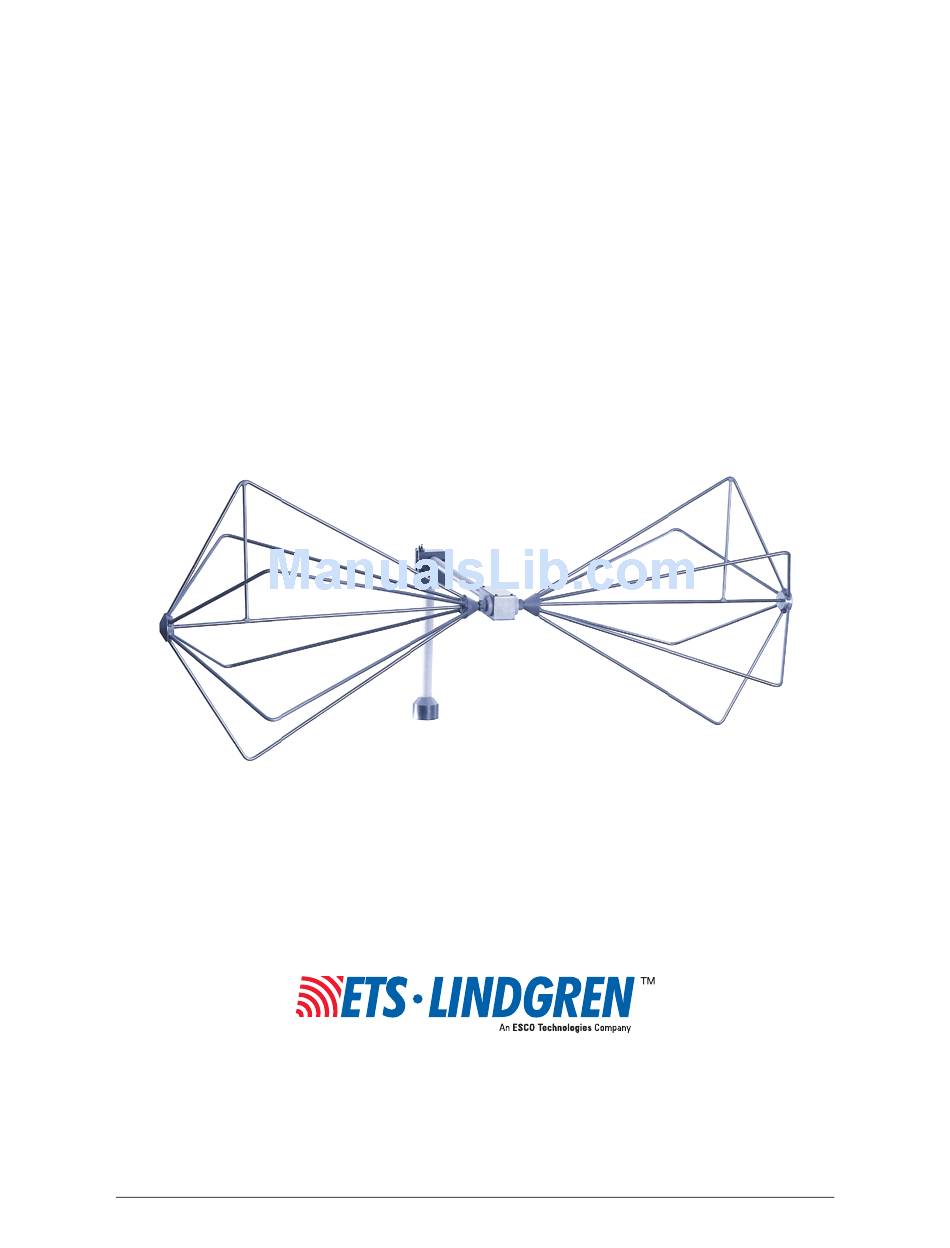

- Page 1 Archived 3/18/10 Model 3110B Biconical Antenna MANUAL © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV F – PN 399108...
- Page 2 Archived 3/18/10 MODEL 3110B BICONICAL ANTENNA EMC Test Systems, L.P. reserves the right to make changes to any product described herein in order to improve function, design or for any other reason. Nothing contained herein shall constitute EMC Test Systems, L.P. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
Archived 3/18/10 MODEL 3110B BICONICAL ANTENNA Table of Contents INTRODUCTION ............................1 ASSEMBLY INSTRUCTIONS ........................1 MOUNTING INSTRUCTIONS ........................2 APPLICATION ............................3 TYPICAL DATA ............................4 SPECIFICATIONS ............................6 MAINTENANCE ............................7 WARRANTY STATEMENT ........................8 © EMC TEST SYSTEMS, L.P. – MARCH 2002... - Page 4 Archived 3/18/10 MODEL 3110B BICONICAL ANTENNA © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV F – PN 399108...
-
Page 5: Introduction
Its lightweight construction provides for ease in portability and storage. ASSEMBLY INSTRUCTIONS The Model 3110B consists of the following (shipped unassembled): 1 ea. Balun 2 ea. Biconical Elements 2 ea. -
Page 6: Mounting Instructions
After the mounting clamp is attached to a tripod, unscrew the latch and open the clamp. Insert the balun of the 3110B into the clamp and close the top over the balun. Move the screw latch to the closed position and tighten, so the balun is held securely. -
Page 7: Application
Archived 3/18/10 MODEL 3110B BICONICAL ANTENNA Application APPLICATION The Model 3110B is ideally suited for swept site attenuation measurements ANSI specifications. Also, the Model 3110B can be used for horizontal as well as vertical site attenuation measurements. A 20 dB pre-amp is recommended in line with the receive... -
Page 8: Typical Data
Archived 3/18/10 Typical Data MODEL 3110B BICONICAL ANTENNA TYPICAL DATA 10 m Frequency (Mhz) Model 3110B Antenna Factor 10 m Frequency (Mhz) Model 3110B Gain © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV F – PN 399108... - Page 9 Archived 3/18/10 MODEL 3110B BICONICAL ANTENNA Typical Data Frequency (Mhz) Model 3110B VSWR Frequency (Mhz) Model 3110B Half Power Beamwidth © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV F – PN 399108...
-
Page 10: Specifications
52.0 cm 20.5 in Weight 2.7 kg 6.0 lb NOTE: ETS-Lindgren recommends using a 6DB pad attached to the end of the antenna, otherwise high VSWR may occur. © EMC TEST SYSTEMS, L.P. – MARCH 2002 REV F – PN 399108... -
Page 11: Maintenance
Maintenance MAINTENANCE To ensure reliable and repeatable long-term performance, annual recalibration of your antenna by ETS-Lindgren’s experienced technicians is recommended. Our staff can recalibrate almost any type or brand of antenna. Please call to receive a Service Order Number prior to sending an antenna to us for calibration. -
Page 12: Warranty Statement
Archived 3/18/10 Warranty Statement MODEL 3110B BICONICAL ANTENNA WARRANTY STATEMENT EMC Test Systems, L.P., hereinafter referred to as the Seller, warrants that standard EMCO products are free from defect in materials and workmanship for a period of two (2) years from date of shipment.
