Step 6. The V elements should be installed and tightened using the
thumbscrews through the boom (see Figure 4).

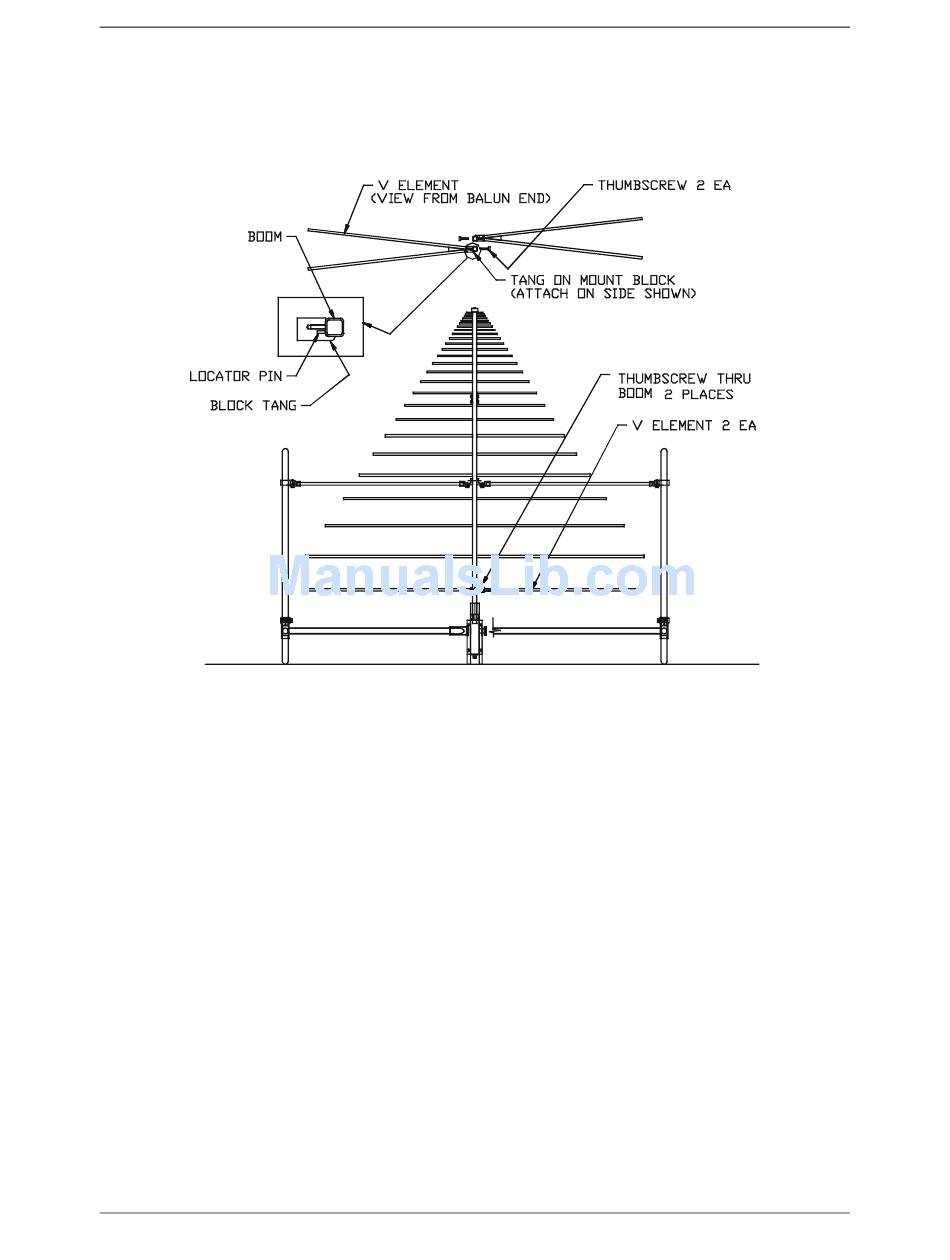

FIGURE 4 – Assembly Step 6
The antenna is now ready for mounting on a boom of a
stand such as the ETS-Lindgren 7-TR or mast such as the
ETS-Lindgren 2070 series. See the next section "Mounting
Instructions" for more details.
