Camera Link interface (01-04 or CL1, CL2)

Reserve control input (CC2)

Pixel order

The camera control signals CC2 at the Camera Link connectors O2 and O4 (or
connector CL1) are reserved for future use.
Each frame in single channel mode (S=0, max. 193 full frames per second) is
transmitted from top left to bottom right, line per line. The diagram below
shows how the image is reconstructed from the ten Camera Link taps A – J.
Because every tap directly corresponds to a Camera Link port, the port labels are
reused as tap labels here. Each Camera Link clock cycle transmits one block of
ten pixels. Note that the number of lines may vary depending on the value of
parameter .
N

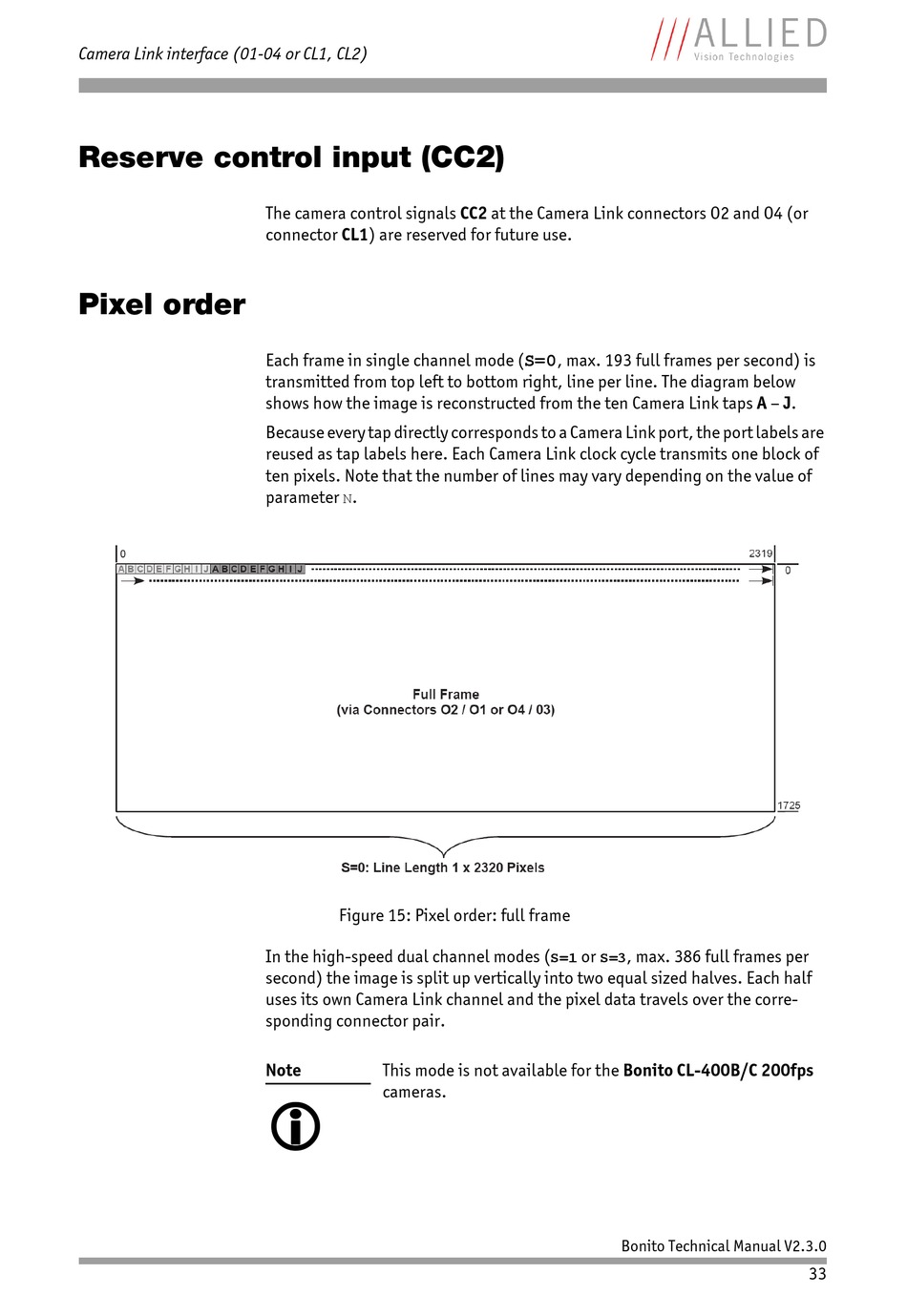

Figure 15: Pixel order: full frame
In the high-speed dual channel modes (
second) the image is split up vertically into two equal sized halves. Each half
uses its own Camera Link channel and the pixel data travels over the corre-
sponding connector pair.
Note This mode is not available for the Bonito CL-400B/C 200fps
cameras.

S=1 or S=3 , max. 386 full frames per
