  • Page 1 1903310 Käyttöohje • Suomi Gebruiksaanwijzing • Nederlands 0901 Bruksanvisning • Svenska Manuel d’utilisation • Français Bruksanvisning • Norsk Manual de instrucciones • Español Brugsanvisning • Dansk Instrukcja obsługi • Polski Operating manual • English Инструкции по эксплуатации • По-русски Gebrauchsanweisung • Deutsch IG™...
  • Page 3 Operating Manual english...

  • Page 4: Table Of Contents

    COntents preFaCe .......................3 General ..............................Safety Instructions ..........................Introduction ............................installatiOn .....................7 Positioning of the machine ......................Connection to mains .......................... Welding and earthing cables ......................MaChine use ....................8 Starting of the power source ......................Front panel indicators ........................Use of the control panel ........................3.3.1 Starting of the control panel ..........................

  • Page 5: Preface

    This user manual contains important information on the use, maintenance, and safety of your Kemppi product. The technical specifications of the device can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time.
  • Page 6 spatter and fire safety • Welding is always classified as hot work, so pay attention to fire safety regulations during welding and after it. • Remember that fire can break out from sparks even several hours after the welding work is completed. • Protect the environment from welding splatter. Remove flammable materials, such as flammable fluids, from the welding vicinity and supply the welding site with adequate fire fighting equipment. • In special welding jobs, be prepared for hazards such as fire or explosion when welding container type work pieces. • Never direct the spark spray or cutting spray of a grinder toward the welding machine or flammable materials. • Beware of hot objects or spatter falling on the machine when working above the machine. • Welding in flammable or explosive sites is absolutely forbidden. general electric safety • Only connect the welding machine to an earthed electric network. • Note the recommended mains fuse size. • Do not take the welding machine inside a container, vehicle or similar work piece. • Do not place the welding machine on a wet surface and do not work on a wet surface.
  • Page 7 While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the specification of the product described at any time without prior notice.

  • Page 8: Introduction

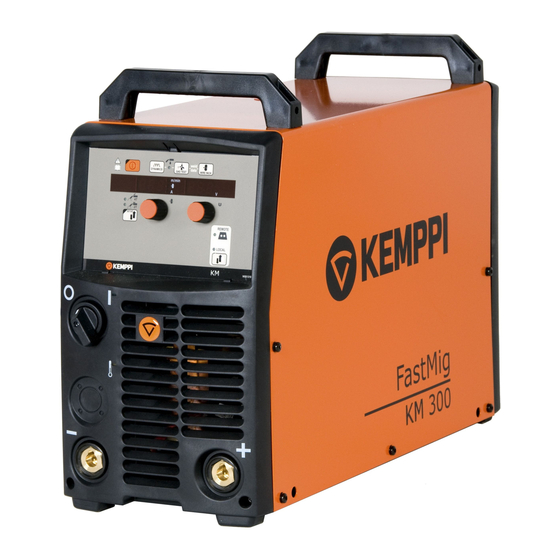

    intrODuCtiOn The FastMig™ KM-series power sources 300, 400, and 500 are MIG power sources designed for demanding professional use in the three-phase network. The power source has a control panel that allows ready control of the functions of the power source and the wire feeder. Overview of the power source Front view Rear view...

  • Page 9: Installation

    installatiOn pOsitiOning OF the MaChine Place the machine on a sturdy, level surface that is dry and does not release dust or other impurities to the suction air through the fan grill. 60˚ < 15˚ notes for positioning of the machine • Preferably, situate the machine somewhat above floor level.

  • Page 10: Welding And Earthing Cables

    The table below lists the fuse sizes for 100% load in a 400-V three-phase network with 4 x 10-mm² cable for different power source models. Model Fuse KM 300 20 A delayed KM 400 25 A delayed KM 500 35 A delayed WelDing anD earthing Cables The device has a welding cable connection both in the front and in the rear.

  • Page 11: Front Panel Indicators

    . If the failure cannot be eliminated, turn off the machine, and turn it on again. If the failure persists, write down any fault code that may be shown on the display and contact authorised Kemppi service agent. use OF the COntrOl panel The control panel is used for controlling and monitoring the operation of the power source and the wire feeder.

  • Page 12: Control Knobs

    3.3.3 Control knobs • The left-hand control knob (P8) allows adjustment of the speed of wire feeding. The selected speed is shown on the display on the left-hand side (P2). • The control knob on the right-hand side (P9) allows you to adjust the welding voltage. The selected voltage is shown on the right-hand display (P6). These adjusters are used also for selecting the values of the machine’s operational parameters, such as the MIG mode and set-up features. A parameter for adjustment is selected with the left-hand knob knob (P8), while the value of the parameter is selected with the right-hand knob (P9).

  • Page 13: Setting Of The Mig Operating Mode

    3.3.10 setting of the Mig operating mode Button P7 allows you to set the MIG welding gun to either two-sequence or four-sequence mode. The indicator shows the mode selected. • In two-sequence mode (2T), welding is started by pressing the gun switch and stopped by releasing the switch. • In four-sequence mode (4T), the following actions take place: 1. When you press the gun switch, the shielding gas starts to flow. 2. When you release the switch, welding starts. 3.

  • Page 14: Sv 3.3.12 Calibration Of The Wire Feed Speed

    In the event of a failure of the machine, contact an authorised Kemppi service agent. Before taking your unit for servicing, check the list below. OverlOaD (yellOW inDiCatOr lit) Two simultaneously operating fans cool the power source. The machine may, however, overheat if continuously loaded above the rated values or if the circulation of cooling air is prevented.

  • Page 15: Electric Network Overvoltage Or Undervoltage

    eleCtriC netWOrk OvervOltage Or unDervOltage If the power source is used in an electric network with insufficient voltage (less than 300 V), the control features of the device are disabled automatically. The primary circuits of the power source are protected against power spikes. The product’s mains voltage range is broad enough to prevent overvoltage problems at up to 440 V (see Section 8, ‘Technical specifications’). Make sure that the voltage remains within the allowed range, especially if the operating power is supplied by a generator set. Missing phase in the eleCtriC netWOrk If a phase is missing from the mains current, the welding features will be adversely affected or the machine may have problems starting. Loss of a phase can be caused by a:...

  • Page 16: De 5. Maintenance

    Other error codes: The machine can show codes not listed here. In the event of an unlisted code appearing, contact an authorised Kemppi service agent and report the error code shown. MaintenanCe The utilisation level of the power source and its working environment should be taken into consideration in planning the frequency of maintenance of the machine.

  • Page 17: Es 6. Disposal Of The Machine

    The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health.

  • Page 18: Ru Warranty Policy

    The warranty becomes void if modifications are made to the machine that are not approved by the manufacturer or if non-original spare parts are used in repairs. The warranty is voided if repairs are carried out by a repair agent not authorised by Kemppi. undertaking warranty repairs Warranty defects must be reported to Kemppi or an authorised Kemppi Service Agent without delay.
  • Page 20 Telefax +7 495 739 4305 Telefax +46 8 590 823 94 DEUTSCHLAND e-mail: info.ru@kemppi.com e-mail: sales.se@kemppi.com Tel +49 6033 88 020 KEMPPI, TRADING (BEIJING) COMPANY, Telefax +49 6033 72 528 KEMPPI NORGE A/S LIMITED e-mail: sales.de@kemppi.com Postboks 2151, Postterminalen Room 420, 3 Zone, Building B, KEMPPI SPÓŁKA Z O.O.

This manual is also suitable for:

Fastmig km400Fastmig km500
