Ku-Band Satellite Transceiver
Single-Thread Equipment Mounting
C.2 Converter Unit Installation
The following information describes the steps performed and optional hardware required
for installing the converter unit on an antenna spar arm or a pole.
C.2.1 Spar Arm Mount
C.2.1.1 Optional Spar Arm Installation Kits for Converter, SSPA, and
LNA

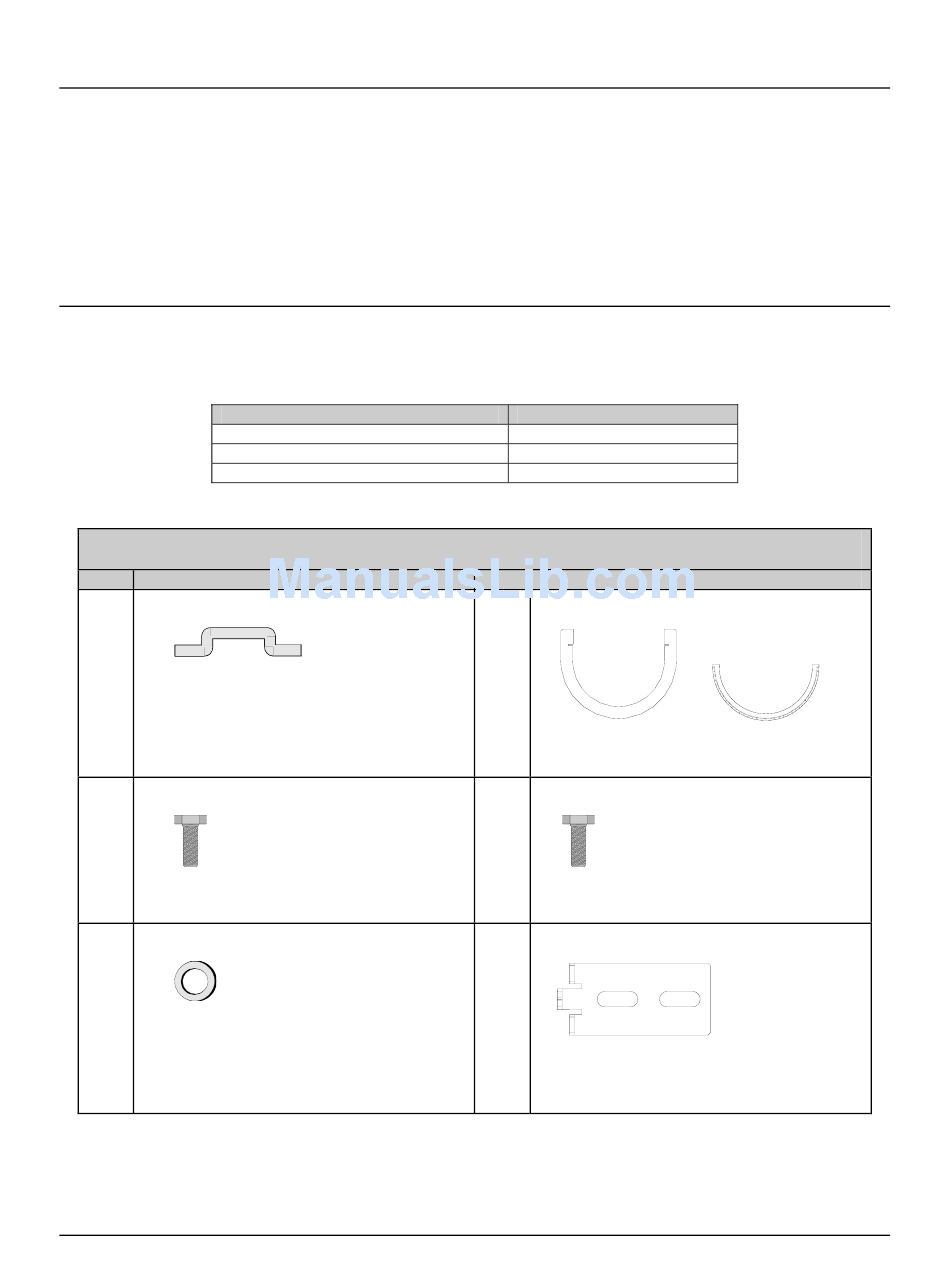

Antenna Type Mounting Kit
PRODELIN 5.25" Interface Mounting Kit
PRODELIN 3.74" Interface Mounting Kit
Channel Master Offset Mounting Kit
Qty.
2 Spar support bracket. (Spar Mount Only)
Comtech EFData Part #s:
FP/3175 (included in KT/7805 & KT/7945)
FP/7579-1 (included in KT/7595)
2 1/4-20 x 5/8" bolt.
Comtech EFData Part #:
03P1131
7 1/4" flat washer.
Comtech EFData Part #:
HW/1/4-FLT.
Kits KT/7805, KT/7945, and KT/7595 include:
Description
Kit Part Number
KT/7805-1
KT/7945-1
KT/7595-1
Qty.
1 "U" Bracket and scale overlay
Comtech EFData Part #:
FP/7569-1, and OL/7609-1
5 1/4-20 x 1" bolt.
Comtech EFData Part #:
HW/ 1/4-20x1-BLT
1 Interface Bracket
Comtech EFData Part #s:
FP/7936-1(included in KT/7805 & KT/7595)
FP/7937-1 (included in KT/7945)
C–3
Revision 9
MN/KST2000AB.IOM
(Continued on next page)
Description
-90
90
-80 80
-70 70
-60
60
-50 50
-40 40
30
-30
-20 20
-10 10
0
