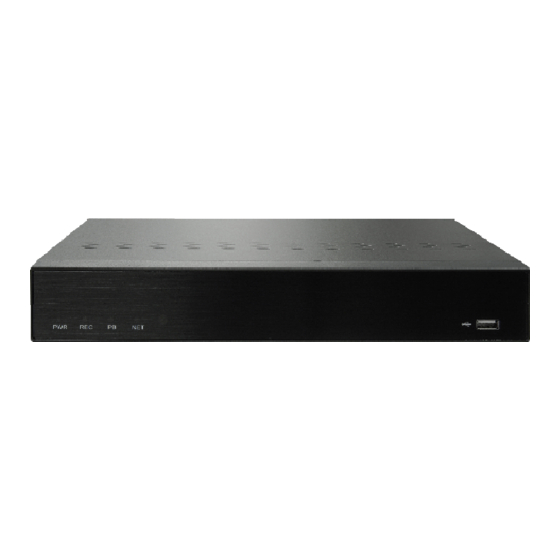

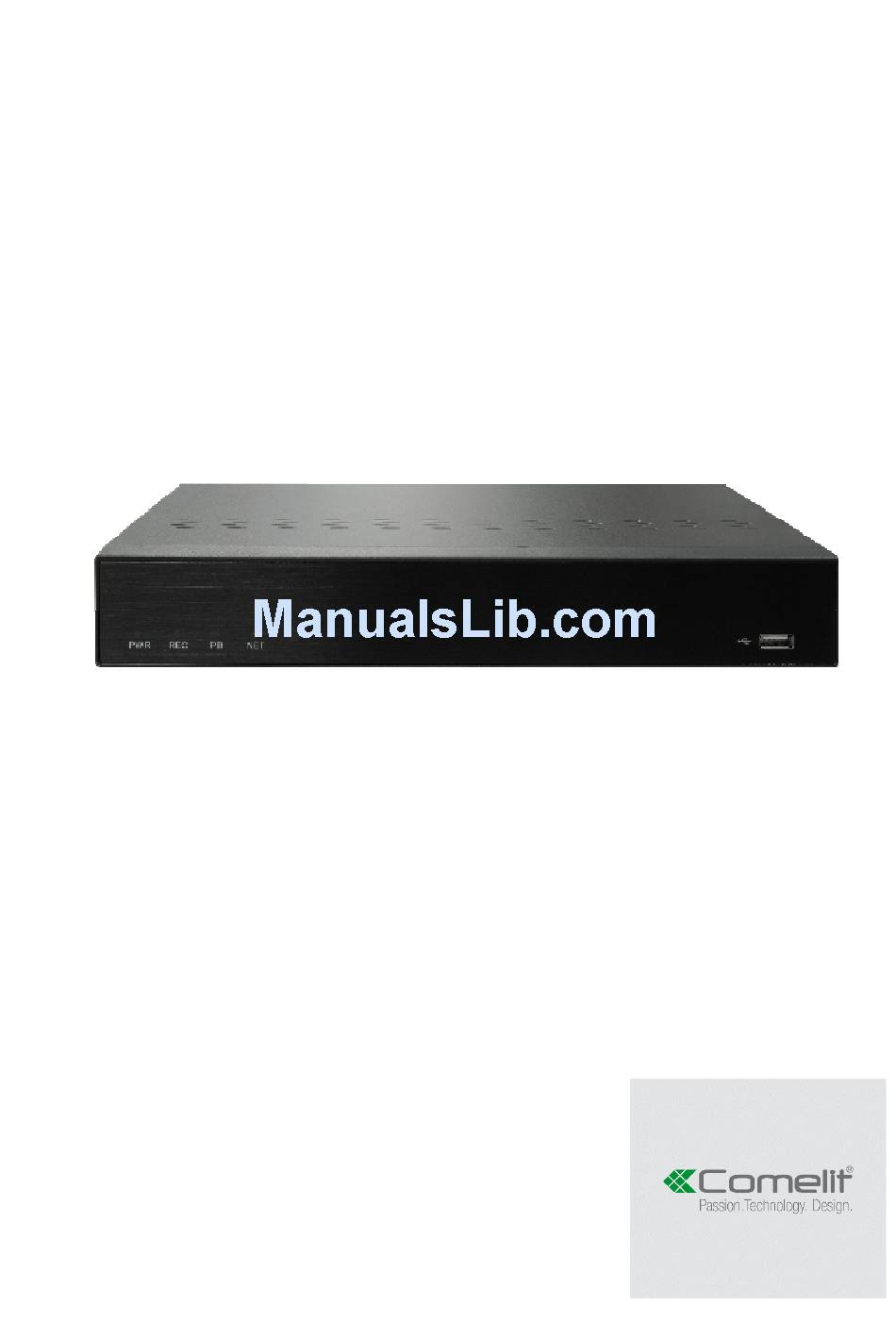

- Page 1 FULL-HD AHD DIGITAL VIDEO RECORDER ART. AHDVR742A / AHDVR782A / AHDVR762A QUICK GUIDE Please read this guide thoroughly before use and keep it handy for future reference.
-
Page 3: Front Panel View
Front Panel View Title Description DVR power indicator DVR power indicator REC LED Recording indicator Playback LED Playback indicator Network LED Network connection indicator IR REMOTE CONTROL Receives all incoming signals from the remote control SENSOR USB 2.0 Port Connect USB mouse or USB memory device for firmware upgrade. -
Page 4: Rear Panel View
Rear Panel View 4ch AHD DVR 8h AHD DVR 16ch AHD DVR Audio input Audio out Camera input HDMI VGA out USB 2.0 Sensor/Alarm: I/O RS-485 Power input Network port Power switch... -
Page 5: System Setup
System Setup When power is turned on, you will see the initializing screen and it may take up to one minute to complete. After initializing is complete, an Easy Setup screen will appear. Easy Setup Wizard An Easy Setup screen will appear. If you don’t want to go through the setup steps at this time, click the Exit button and the system will go to the main live screen. -
Page 6: Record Quality Setup
Record Setup Record Quality Setup [Primary]: Setup the Primary Recording option Resolution [1080p, 720p, 960H, 1/2 960H and 1/4 960H] There are several recording resolution modes you can choose from. 1080p is the highest resolution. Record Rate (F/S) [NTSC: 30-1] [PAL 25-1] Select recording speed in frame (image) per second. -
Page 7: Motion Setup
▪ Motion Setup This menu allows you to set motion detection area for motion recording. To start a motion trigger recording, RECORD-> POLICY->MOTION must be enabled Sensitivity [LEVEL 1 – LEVEL 10] : The higher level is more sensitive to detect motions. -
Page 8: Device Setup
▪ Device Setup Storage: HDD size and percentage used will be shown. You can format each HDD if necessary. Sensor/Video Loss Detection: Select the right type of your external sensors connected to the DVR. There are two different types of sensors. -
Page 9: Network Connection Setup
Network Connection Setup: DVR Connection 1) Connection Mode: Sets the network connection mode. 2) Bandwidth: Sets the maximum data flow to be transferred (Upload speed). Options will vary depending on the selected connection mode. 3) IP, Gateway, Subnet Mask and DNS - For Static IP: You can directly input IP address, Gateway, Subnet Mask and DNS. -
Page 10: Live Launcher
Live Menu Description (Right Click Menu) Screen Mode Selects how you would like to view screen Zoom In Zoom in for the desired area. Audio On/Off Option to have the audio on or off Freeze Freeze Playback or Live scene Stop Alarm Stops the alarm output and the event monitoring. -
Page 11: Playback Launcher
Playback Launcher Play bar: displays the time of recorded data in the Playback control button: control playback of selected channel for the past 24 hours desired function. Playback display mode: Allows user to playback Capture: capture video image either in Playback of desired mode. - Page 12 Using the client software that is included in the CD-title, you can monitor the DVR from remote site. First, install COMELIT RAS Solution in your PC and run the client. Enter the ID and Password. (Default ID and PW is “admin” / “admin”.)
- Page 13 COMELIT IP RAS (Mobile Viewer) Access App store from your iPhone or Android phone. Type “COMELIT” in the search bar. Select “Comelit IP Ras” to install it. After installation, open the App. Push the “Start” button. Push the Add button on the top right corner. Select the “Recorder”...
- Page 14 Still Image Capture Evidence Internal Hard Drive 1xSATA 2xSATA 2xSATA 10/100 Base Ethernet Dynamic/Static Remote Monitoring/Control Web Viewer and COMELIT RAS Solution Support Dual Streaming for Live and Recording E-Map Support Playback Screen 1/4/6/8/9 1/4/6/8/9/13/16 Mode Playback Search Mode Date/Time, Calendar, Event, Motion, Protect, Capture, VCA, Text...
- Page 16 w w w . c o m e l i t g r o u p . c o m...
