Page 1: Camera Dome

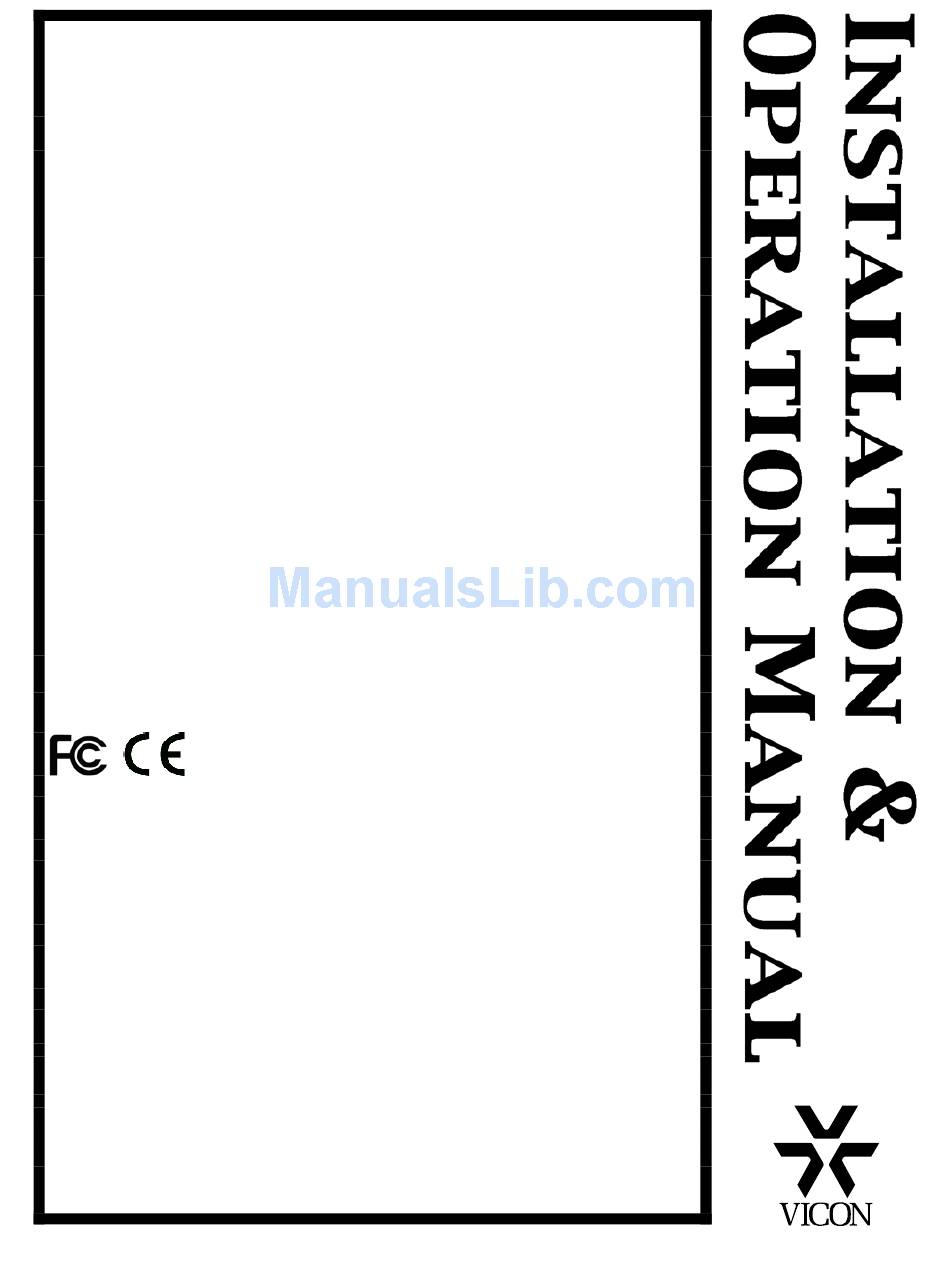

Camera Dome S10-CH Mini Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose. -
Page 3: Important Safeguards
8. Accessories - Do not place the unit on an unstable surface following repair or maintenance to verify proper operation. to avoid falling. Use only UL Listed Vicon recommended mounting 22. ESD Precaution - Take all normal electrostatic discharge accessories. -
Page 4: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. -
Page 5: Table Of Contents
Setting the DIP Switch ..........................20 TROUBLESHOOTING......................22 TECHNICAL SPECIFICATIONS..................23 MAINTENANCE........................24 Care and Cleaning of Polycarbonate Domes ....................24 Polyswitch..............................24 Shipping Instructions ..........................24 Coaxial Cable Recommendations ......................25 Twisted-Pair Cable ............................26 VICON STANDARD EQUIPMENT WARRANTY..............27 • v XX183-01-02 Rev 808 S10-CH Camera Dome System... -
Page 7: Introduction
Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the carton(s) upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible. -
Page 8: Exploded View
Exploded View Components Surface Mount Adapter Plug (NPT ¾”) DIP Switch Terminal Block Camera Dome Assembly – mount cover and main base Refer to Figure 7 for installation with Pendant Adapter. Figure 1: Exploded View 2 • XX183-01-02 Rev 808 S10-CH Camera Dome System... -
Page 9: Connections
Connections Refer to Figures 2 and 3. Be sure video and power cables have been routed to the installation location. 1. Loosen the three (3) captive screws on the dome and remove it from the base. Refer to Figure 2. The tool is provided. - Page 10 Cable Assembly Harness Designation Color Function 24 VAC 24 VAC Red/Black Yellow Video White Video Ground Green Command in + Blue Command in - Figure 3: Screw Terminal Connections (Refer to Cable Recommendations at the end of this manual.) 4 • XX183-01-02 Rev 808 S10-CH Camera Dome System...
-
Page 11: Mounting The Camera Dome
Mounting the Camera Dome The S10-CH Mini Camera Dome is designed to be surface mounted. Refer to Figure 4. It can be installed into a dropped ceiling using the S-10CM; the unit can be wall mounted, ceiling mounted, installed in a pendant configuration, corner or pole mounted using pendant adapter S-10PA with Vicon’s SurveyorVFT line of... -
Page 12: Operation
The cursor wraps around when moving up and down. The following is a description of these controls: Note: DIP switch SW1 must be set to pole 7 ON and pole 8 OFF to function correctly for Vicon protocol (default); baud rate must be 4800 bps. When Vicon protocol is set, baud rate automatically sets to 4800 bps. -
Page 13: Competitive Protocols
Competitive Protocols The dome also provides functionality with competitive protocols Pelco D/P and Samsung. Settings for these protocols are done on DIP SW1. DIP switch SW1 must be set to Poles 7 and 8 OFF for Pelco and OFF/ON for Samsung. Refer to page 19 for all DIP switch settings. The dome has function keys to support the following functions: 1-64 + preset and 100~200 + preset are used for preset and 65-99 + preset are used for functions. -
Page 14: Osd Menu Settings
OSD Menu Settings 8 • XX183-01-02 Rev 808 S10-CH Camera Dome System... -
Page 15: Diagnostics
Diagnostics When power is turned on, the DIAGNOSTIC procedure begins. The following messages are displayed on the monitor: CAMERA ID : 001 BAUD RATE : 4800 BPS WAITING……… PAN ORIGIN TEST OK TILT ORIGIN TEST OK TX CONNECTION TEST OK CAMERA COMM TEST OK 1. -
Page 16: Osd Main Menu
OSD Main Menu To enter the OSD Menu system, press the button 94+Preset Store. Remember to SAVE settings before exiting submenus. Note: Make sure keypad is setup and camera and monitor are selected. Use the joystick UP/DOWN to move the position and LEFT/RIGHT to make selection. MAIN MENU DOME SETUP CAMERA SET... -
Page 17: Manual Speed
In order to enter [PASSWORD] page, system lock status must be set to ON. Move the joystick right or left to select ON. The default setting is OFF. [Password] Use the Vicon system to set passwords. [OSD Display] The OSD IDs are displayed when set ON here; if OFF is selected they are hidden. Move the joystick to the right or left in order to select OFF/ON for each item. -
Page 18: System Status
[System Status] This menu displays the information for this camera. SYSTEM STATUS PROTOCOL : VICON BAUD RATE : 4800 BPS FIRMWARE VER. : 2.15 DEFAULT SETTING UPGRADED DATE : 10.07.07 CAMERA MODULE : SDM100 [PREVIOUS PAGE] • Protocol and baud rate are selected with the DIP switch setting (refer to page 19 and 20. -
Page 19: Camera Set
o clear all data and return to factory defaults, move the joystick to the right when cursor is at [LOAD OPTIMIZED DEFAULT] to enter the above page. Move the joystick to the right or left to select YES and then press the AP button. -
Page 20: Preset Set
BLC (Backlight Compensation) The BLC mode can be OFF/ON and the default setting is OFF. • OFF – Backlight compensation is not activated. • ON – Backlight compensation is activated. This function can be recalled by pressing 93+Preset Store button. D/N Mode This function is not available with this model. -
Page 21: Autoscan Set
Autoscan Set The 98+Preset Save button works to bring up the AUTO SCAN menu. Note that when autoscan is set, the digital end angle zoom position and the tilt angle (coordinates) are set where they are when autoscan is set; remember to set the zoom and tilt to desired position before programming autoscan. -
Page 22: Tour Set
Tour Set Eight (8) programmable tours can be set, and each tour can be made up of up to 60 preset steps. After setting the data for each tour, 80~87 + Preset buttons work to run tour # 1~8 TOUR SET TOUR NO : 01 DEFAULT SETTING... -
Page 23: Pattern Set
Privacy No. Up to 4 privacy masking zones are available, numbered 01 - 04. Display Move the joystick to the right or left to set ON, to show the selectable block in the center of the monitor. This block appears as a square when set ON. The default setting is OFF. Action (Move/Adjust) To set the blocking area, press the AI button when ACTION is in MOVE mode. -
Page 24: Alarm Set
Save To save the stored pattern, move the joystick to the right when the cursor is on SAVE. Then the cursor moves to PATT NO. 02 to prepare the next pattern no. Exit To escape this page, move the joystick to the right. Alarm Set 4 alarm inputs are available and each alarm can activate presets, tours or patterns. -
Page 25: Exit
Sector No. Up to 8 programmable sectors can be set using the joystick. Sector ID To set SECTOR ID, select up to 16 characters by moving the joystick to the left or right. Press the Zoom In button to move to the next character from the left to the right and the Zoom Out button to move to the next character from the right to left (space displays when □... -
Page 26: Dip Switch Setting
Setting the DIP Switch The S10-CH Mini Camera Dome provides up to 63 selectable camera IDs with poles 1 – 6 of the DIP switch. Refer to Figure 1 and access DIP SW1 to set camera ID. (Keypad/control system must have 1-63 addresses available;... -
Page 27: Baud Rate Setting
Pole 9 of DIP Switch SW1 is used for Baud Rate setting. The baud rate can be 2400/4800 bps or 9600 bps. Factory Default: 4800 bps (Vicon); 2400 bps (Pelco). Note: If Vicon protocol is selected, baud rate automatically is set at 4800 bps. DIP SW1 Pole 9... -
Page 28: Troubleshooting
Troubleshooting If you have difficulty operating the camera dome, refer to the following. PROBLEM SOLUTION Check if the power supply is 24 VAC. Check if RS-485/422 communication cable is No operation connected correctly. Check camera ID setting. Check the termination. Check if all the cables are connected correctly. -
Page 29: Technical Specifications
8 programmable patterns Privacy Zone 4 privacy masking zones Sector 8 programmable sectors with 16 characters Password Protection Yes, through the Vicon system FUNCTIONS Alarm Input 4 alarms OFF/NC/NO (with various programmable states) Alarm Actions Activate preset, tour or patterns... -
Page 30: Maintenance
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 31: Coaxial Cable Recommendations
Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms. -
Page 32: Twisted-Pair Cable
Twisted-Pair Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use a pure copper stranded conductor with or without a tin-plating to obtain a low DC resistance. Do not use cable with either steel or aluminum stranded conductor because they do not transfer signals effectively for long distances. -
Page 33: Vicon Standard Equipment Warranty
Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. - Page 34 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Germany vin-videotronic infosystems gmbh...
