Quick Guide

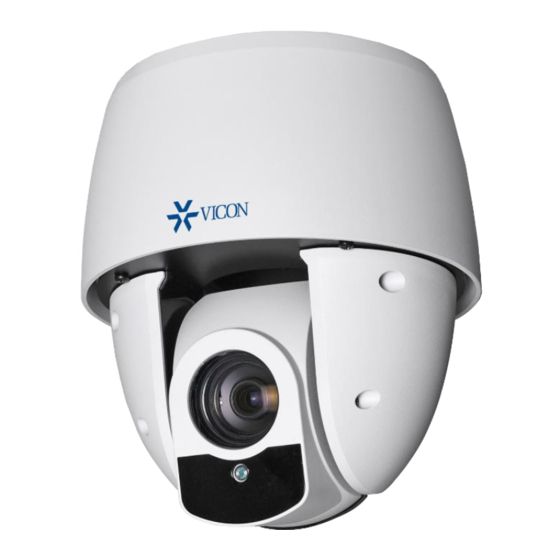

Cruiser™ SN693V Outdoor PTZ Camera Dome
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely
as described in the documentation. This system has not been designed to be used in life-
critical situations and must not be used for this purpose.
Document Number: 8009-8249-50-00 Product specifications subject to change without
notice. Issued: 9/18 Copyright © 2018 Vicon Industries Inc. All rights reserved.
XX249-50-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon Cruiser SN693V
Summary of Contents for Vicon Cruiser SN693V
- Page 1 Cruiser™ SN693V Outdoor PTZ Camera Dome XX249-50-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely Toll Free: 800-645-9116 as described in the documentation.
- Page 3 1 Introduction The Cruiser SN693V network camera is an outdoor camera dome that includes 1080p high resolution camera lens combination that provides video transmission over a network. It is fully featured for security surveillance and remote monitoring needs. The camera provides quad-streaming video and supports H.265/H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth;...
-
Page 4: Key Features
1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264/H.265 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Quad Streams The network camera can deliver quad video streams simultaneously using H.264/H.265 and Motion JPEG. -
Page 5: Installation
2 Installation 2.1 Mounting the Dome Camera The dome camera is for use in surface or pendant mounting applications, and the mounting surface must be capable of supporting loads of up to 6.2 lb (2.8 kg). (Pendent mounting must use pendant mount accessory.) The dome camera’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter, that supports the weight of the dome camera. - Page 6 CAUTION: Before installing the mounting bracket to the surface, pre-adjust the four mounting “A” screws on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome’s base and fit the tab of the mounting bracket into the locking slot.
- Page 7 2.2 Basic Configuration of Dome Camera System Type Description Ethernet, RJ-45 port compatible with RJ-45 10/100Mbps having PoE functionality CAMERA POWER DC JACK (12 VDC) A1: ALARM INPUT 1 3-PIN A2: ALARM INPUT 2 TERMINAL BLOCK G: GND A3: ALARM INPUT 3 3-PIN A4: ALARM INPUT 4 TERMINAL BLOCK...
-
Page 8: Resetting To The Factory Default Settings
2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera, as described below: •... - Page 9 2.4 Connections • Micro-SD Card Insertion User can install and change Micro-SD card as explained below. Refer to the following picture. 1. Open the Micro-SD card cover. 2. Install or change Micro-SD card. 3. Close the Micro-SD card cover tightly to ensure waterproofing. •...
-
Page 10: Network Connection & Ip Assignment
If DHCP is enabled and the product cannot be accessed, run the SmartManager utility, which can be found on Vicon’s website, to search and allocate an IP address, or reset the product to the factory default settings and then perform the installation again. -
Page 11: Operation
3 Operation The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 12: Access From The Internet
3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera. -
Page 13: Live View Page
3.4 Live View Page The Live View page can be viewed in several screen modes. Users can select the most suitable one out of those modes provided. Adjust the mode in accordance with your PC specifications and monitoring purposes. 1) General controls Live View Page Playback Page Setup Page... - Page 14 2) Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the play and stop. The Play button connects to the network camera or starts playing a video stream. The Pause button pauses the video stream being played.
- Page 15 3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
- Page 16 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. 4) Speaker Control Bar Use this scale to control the volume of the speakers.
-
Page 17: Network Camera Setup
3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System. You can configure the network camera by clicking Setup either in the first connection page or the top second-right button of the Live View page. -
Page 18: System Requirement For Web Browser
• Heavy network utilization via wireless router due to poor infrastructure: Frame rate and bandwidth affected. • Viewing on poorly performing client PCs lowers perceived performance: Frame rate affected. More Information For more information, see the network camera complete User Manual, which is available on Vicon’s website, www.vicon-security.com, under Documentation. - Page 19 50304344B...
- Page 20 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
