Quick Guide
XX249-40-00

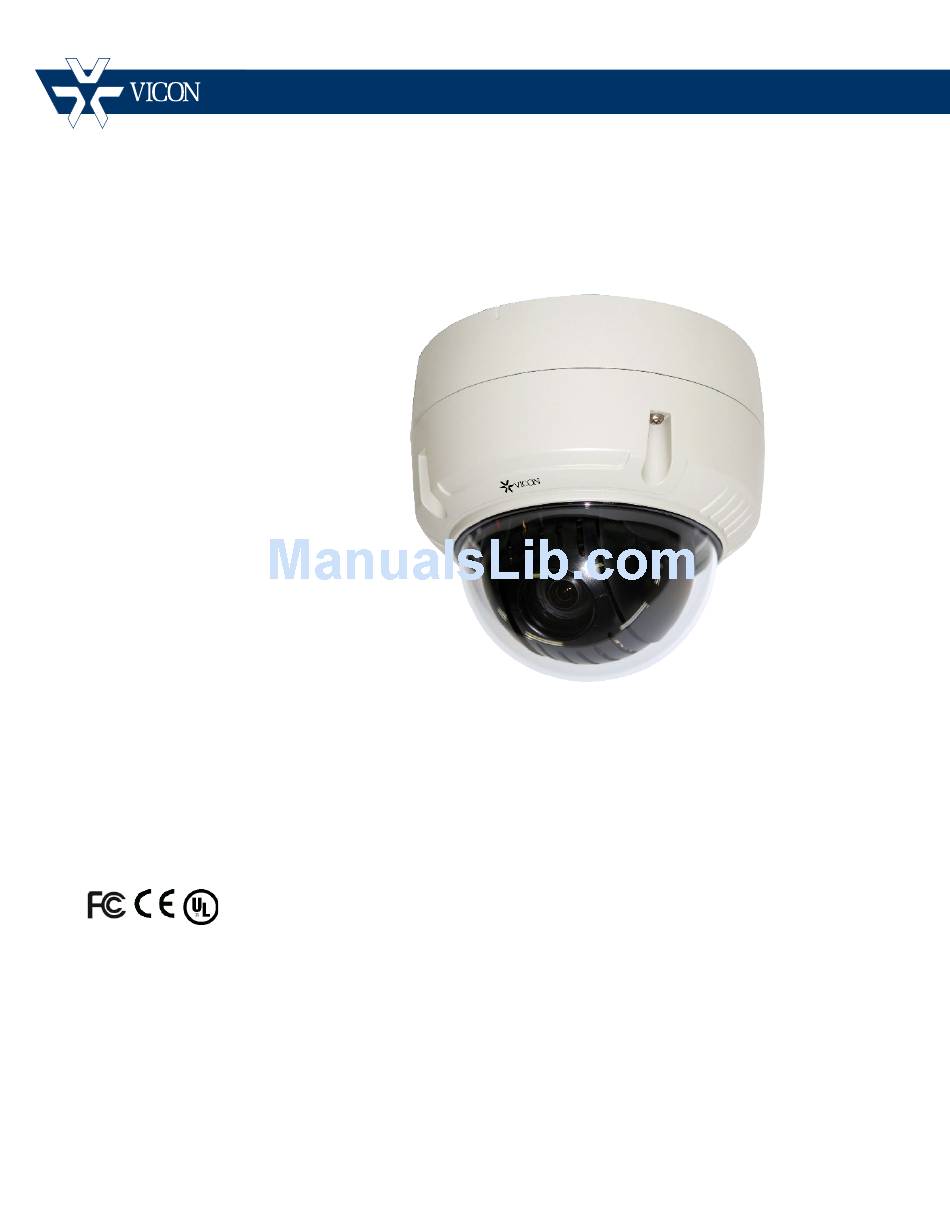

Cruiser™ SN663V Outdoor PTZ
Network Camera Dome
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8249-40-00
Issued: 1113
Product specifications subject to change without notice.
Copyright © 2013 Vicon Industries Inc. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon Cruiser SN663V
Summary of Contents for Vicon Cruiser SN663V
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
- Page 3 1. Description The SN663V network camera is an outdoor PTZ camera dome that includes a 1080p high resolution camera lens combination that provides video transmission over a network. It is fully featured for security surveillance and remote monitoring needs. The network camera supports H.264 compression technology as well as M-JPEG compression. By using its dedicated program, multiple users are able to have access to the network camera simultaneously or a single user can monitor various network cameras at the same time.
-
Page 4: Key Features
1.2 Key Features • Brilliant Video Quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Triple Streams The network camera can deliver triple video streams simultaneously at full frame rate in all resolutions up to 1920 x 1080 using Motion JPEG (M-JPEG) and H.264. -
Page 5: Installation Details
2. Installation 2.1 Installation Details The dome camera is for use in surface or pendant mounting applications; the mounting location and material must be capable of supporting loads of up to 4.4 lb (2.0 kg). (Pendent mounting must use pendent mount accessory.) The dome camera’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera. - Page 6 CAUTION: Before installing the mounting bracket to surface, pre-adjust the four mounting screws "A" on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome's base and fit the tab of the mounting bracket into the locking slot. Screws "A" should not be too tight or too loose when the dome is in the locked position.
-
Page 7: Basic Configuration Of Camera System
2.2 Basic Configuration of Camera System Connector Wire Color Description 24 VAC or 12 VDC+ 3-pin terminal block WHITE 24 VAC or 12 VDC- PINK GRAY ALARM INPUT BROWN 6-pin terminal block YELLOW ALARM OUTPUT GREEN RS485+ BLUE RS485- Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps having PoE functionality. - Page 8 2.3 Connections • Connecting the Network Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-over cable is used for direct connection to a PC, while a direct cable is used for connection to a hub. •...
-
Page 9: Network Connection & Ip Assignment
2.4 Network Connection & IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server. -
Page 10: Operation
3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google® Chrome® with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 11: Access From The Internet
3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera. - Page 12 1) Gene eral contr Live View Page Setup Page Help Page he video dr op-down lis st allows the e selection o of a custom mized or pre programmed d video stre am on the L Live View p age. Stream m profiles a onfigured u under Setup...
-
Page 13: Network Camera Setup
3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product. Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic Configuration, Live View, Video & Image, Audio, Event, Dome Configuration, and System. -
Page 14: System Requirement For Web Browser
System Requirement for Web Browser • Operating System: Microsoft Windows OS Series • CPU: Intel® Core™ 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance. - Page 16 Vicon Industries Inc. Internet Address: www.vicon-security.com SN663V IP Camera Dome 50303612A...
