Epsolar SS1024R Instruction Manual

Moisture proof solar controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

☆ Utility model patent NO.：
EPSOLAR
201120064092.1
SS1024R / SS1524R / SS2024R
—— Moisture proof solar controller
INSTRUCTION
MANUAL
Thank you very much for selecting our product!
This manual offers important information and suggestions with
respect to installation, use and troubleshooting, etc. Please
read this manual carefully before using the product and pay
attention to the safety recommendations in it.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS1024R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epsolar SS1024R

Summary of Contents for Epsolar SS1024R

  • Page 1 ☆ Utility model patent NO.： EPSOLAR 201120064092.1 SS1024R / SS1524R / SS2024R —— Moisture proof solar controller INSTRUCTION MANUAL Thank you very much for selecting our product! This manual offers important information and suggestions with respect to installation, use and troubleshooting, etc. Please read this manual carefully before using the product and pay attention to the safety recommendations in it.
  • Page 3 SeaStar SS1024R / SS1524R / SS2024R —— Moisture proof solar controller Specification Summary Nominal system voltage 12 / 24VDC* Maximum PV input voltage Nominal charge / discharge current SS1024R SS1524R SS2024R * The controller will recognize the system rated voltage when start up. If the battery voltage is lower than 18V, it will recognize the system as 12V.

  • Page 4: Table Of Contents

    Contents 1 Important Safety Information ........... 1 2 General Information ..............2 2.1 Product Overview ............2 2.2 Product Features ............3 3 Installation Instructions ............4 3.1 General Installation ............4 3.2 Mounting ..............5 3.3 Wiring ................. 6 4 Operation ................

  • Page 5: Important Safety Information

    1 Important Safety Information Save These Instructions This manual contains important safety, installation and operating instructions. The following symbols are used throughout this manual to indicate potentially dangerous conditions or mark important safety instructions，please take care when meeting these symbols. WARNING: Indicates a potentially dangerous condition.

  • Page 6: General Information

    2 General Information 2.1 Product Overview Thank you for selecting SeaStar series Moisture proof solar controller that adopts the most advanced digital technique and operates fully automatically. The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery. It has various unique functions and quite easy to use, such as: ...

  • Page 7: Product Features

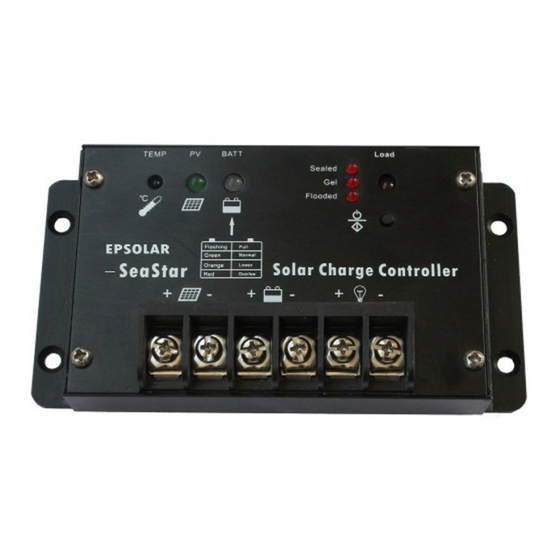

    2.2 Product Features Figure 2-1 SeaStar characteristics 1 –Temperature Sensor Measure ambient temperature and make temperature compensation for charging and discharging. – Charging status LED indicator An LED indicator that shows charging status and also indicates when battery voltage is higher than over voltage disconnect voltage.

  • Page 8: Installation Instructions

    5–LED digital display Display the load work mode and status 6 –Setting button Set load work mode and select battery type (in manual mode used for load ON/OFF). 7–Solar Module Terminals Connect solar modules. 8 –Battery Terminals Connect batteries. 9 –Load Terminals Connect loads.

  • Page 9: Mounting

    3.2 Mounting NOTE: When mounting the controller, ensure free air through the controller heat sink fins. There should be at least 6 inches (150 mm) of clearance above and below the controller to allow for cooling. If mounted in an enclosure, ventilation is highly recommended. WARNING: Risk of explosion! Never install the controller in a sealed enclose with flooded batteries! Do not install in a confined area where battery gassed can accumulate.

  • Page 10: Wiring

    Step 3: Mark Holes Use a pencil or pen to mark the four (4) mounting hole locations on the mounting surface. Step 4: Drill Holes Remove the controller and drill 4mm holes in the marked locations. Step 5: Secure Controller Place the controller on the surface and align the mounting holes with the drilled holes in step 4.
  • Page 11 Fuse Battery Figure 3-2 Battery connecting Before battery is connected, make sure that battery voltage is greater than 6V so as to start up the controller. If system is 24V, make sure battery voltage is not less than 18V. System voltage can only be automatically recognized when controller start up for the first time.When install fuse, make sure that the biggest distance between the fuse holder and the positive terminal of battery is 150mm.
  • Page 12 Connect the positive (+) and negative (-) of loads to controller load terminals as shown in Figure 3-3. The load terminal may exist voltage, connect carefully to avoid short circuit. An in-line fuse holder should be wired in series in the load positive (+) or negative (-) wire as show in Figure 3-3.
  • Page 13 Step 4: Confirm Wiring Double-check the wiring in step1 through 3. Confirm correct polarity at each connection. Verify that all six terminals are tightened. Solar Module Load Fuse Fuse Battery Figure 3-5 System wiring review Step 5: Install Fuse Install a suitable fuse in each fuse holder in the following order: 1.

  • Page 14: Operation

    4 Operation 4.1 PWM Technology (Series Pulse Width Modulation) The controller adopts the advanced series pulse width modulation (PWM) charging mode. With range of 0-100%, it can charge the battery quickly and stably under any condition of solar photovoltaic system. PWM charging mode use automatic conversion duty ratio pulses current to charge the battery.
  • Page 15 · Boost Charge When the battery has recharged to the Boost voltage setpoint, constant- current regulation is used to prevent heating and excessive battery gassing. The Boost stage remains 120 minutes and then goes to Float Charge. · Float Charge After the battery is fully charged in Boost voltage stage, the controller reduces the battery voltage to Float voltage set point.

  • Page 16: Led Indicators

    NOTE: Equipment damage! Over-charging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high an equalizing charge or for too long may cause damage. Please carefully review the specific requirements of the battery used in the system.
  • Page 17  Charging Status indicator GREEN ON whenever sunlight is available for battery charging, GREEN FAST FLASHING when battery over voltage. Please refer to section 5 for troubleshooting. Charging Status LED indicator Table 4-1 Color Indicator Charging Status Green On Solid Charging Green Fast Flashing...

  • Page 18: Setting Operation

    Load status LED indicator Table 4-3 Color LED digital tube Load status “L” with slowly flashing Overload or short circuit  Overheating protection indicator: When heat sink of the controller exceeds 85 ℃, the controller will automatically cut input and output circuit, with LED digital tube showing “H” with slowly flashing simultaneously.
  • Page 19 . Load Control Settings 1. Dusk to Dawn When solar module voltage goes below the point of NTTV (Night Time Threshold Voltage) at sunset, the controller will recognize the starting voltage and turn on the load after 10 minutes delay. When solar module voltage goes above point of DTTV (Day Time Threshold Voltage), the solar controller will recognize the starting voltage and turn off the load after 10 minutes delay.
  • Page 20 Press the setting button once and setting indicators will be changed once among timer 1, timer2 and battery type. When timer 1 setting indicator is on, press the setting button for more than 5 seconds till the LED digital tube flashes. Then press the setting button till the desired number appears according to the following table.
  • Page 21 Load work mode Table 4-6 Timer2 LED Digital No. Disable Load will be on for 1 hour before sunrise Load will be on for 2 hours before sunrise Load will be on for 3 hours before sunrise Load will be on for 4 hours before sunrise Load will be on for 5 hours before sunrise Load will be on for 6 hours before sunrise Load will be on for 7 hours before sunrise...

  • Page 22: Protection, Troubleshooting And Maintenance

    Battery type setting Table 4-7 Battery type Digital tube display Sealed lead acid battery Gel battery Flooded battery 5 Protection, Troubleshooting and Maintenance 5.1 Protection · PV Array Short Circuit If PV array short circuit occurs, clear it to resume normal operation. ·...

  • Page 23: Troubleshooting

    · Overheating Protection If the temperature of the controller heat sink exceeds 85C, the controller will automatically start the overheating protection. · High Voltage Transients is protected against high voltage transients. In lightning prone areas, additional external suppression is recommended. 5.2 Troubleshooting Trouble Shooting Table 5-1...
  • Page 24 Digital tube displays “L” Over load or Overload: Please reduce the with red slowly flashing short circuit load and press the button once, the controller will resume to work after 3s; Short circuit: when the first short-circuit occurs, the controller will automatically resume to work after 10s;...

  • Page 25: Maintenance

    5.3 Maintenance The following inspections and maintenance tasks are recommended at least two times per year for best controller performance.  Check that the controller is securely mounted in a clean and dry environment.  Check that the air flow and ventilation around the controller is not blocked. Clear all dirt or fragments on the heat sink.

  • Page 26: Warranty

    6 Warranty The SeaStar charge controller is warranted to be free from defects for a period of TWO (2) years from the date of shipment to the original end user. We will, at its option, repair or replace any such defective products. •Claim procedure: Before requesting warranty service, check the Operation Manual to be certain that there is a problem with the controller.

  • Page 27: Technical Specifications

    7 Technical specifications Electrical Parameters Table 7-1 Description Parameter 12 / 24VDC Nominal System Voltage Auto work Maximum Battery Voltage SS1024R Rated Battery Current SS1524R SS2024R ≤0.26V Charge Circuit Voltage Drop ≤0.15V Discharge Circuit Voltage Drop ≤6mA Self-consumption Threshold Voltage Parameters...
  • Page 28 Battery Voltage Parameters (temperature at 25℃) Table 7-4 Charging Parameters Battery charging Sealed Flooded setting Over Voltage 16V; x2/24V 16V; x2/24V 16V; x2/24V Disconnect Voltage Charging Limit 15.5V;x2/24V 15.5V;x2/24V 15.5V;x2/24V Voltage Over Voltage 15V; x2/24V 15V; x2/24V 15V; x2/24V Reconnect Voltage Equalize Charging ------- 14.6V;x2/24V...
  • Page 29 Environmental parameters Table 7-5 Environmental parameters Parameter -35℃ to +55℃ Working temperature -35℃to +80℃ Storage temperature SS1024R Mechanical parameters Table 7-6 Mechanical Parameter Parameter Overall dimension 132(5.2)x70.5(2.77)x30(1.18) mm/inches Mounting dimension 122(4.8) x 40(1.57) mm/inches Φ4.5 Mounting hole size Terminal Net weight 0.15kg...
  • Page 30 122(4.8) 132(5.2) Figure1 SS1024R Dimensions 127(5) 137(5.4) Figure2 SS1524R & SS2024R Dimensions...
  • Page 32 BEIJING EPSOLAR TECHNOLOGY CO., LTD. Tel：010-82894112 / 82894962 Fax：010-82894882 E-mail：info@epsolarpv.com Website: www.epsolarpv.com...
