Page 1

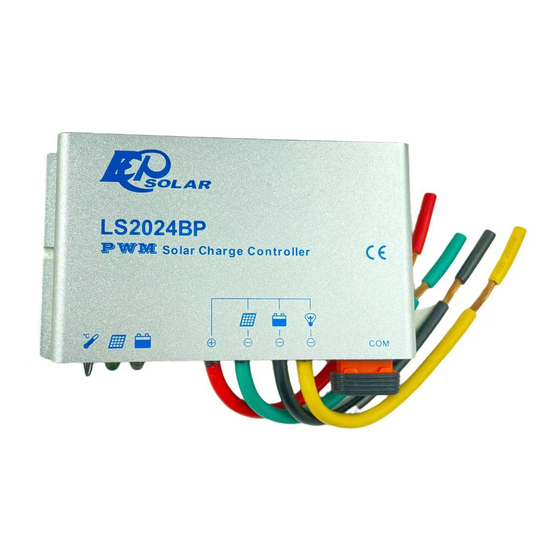

EPSOLAR LS1024BP/ LS2024BP —— Solar Charge Controller USER MANUAL Thank you very much for selecting our product! This manual offers important information and suggestions with respect to installation, use and troubleshooting, etc. Please read this manual carefully before using the product and pay attention to the...
Page 3
LandStar LS1024BP/ LS2024BP —— Solar Charge Controller Nominal system voltage 12 / 24VDC* Maximum PV input voltage Nominal charge / discharge current LS1024BP LS2024BP *The solar charge controller has the system voltage 12/24V automatic recognition function and custom define function, and all charge, discharge and load control parameters can be modified.
1 Important Safety Information Please inspect the controller thoroughly after it is delivered. If any damage is seen, please notify the shipping company or our company immediately. 2 General Information LandStar BP series solar charge controller adopts the most advanced digital technique and operates fully automatically.
Fully encapsulated PCB, IP67 protection Aluminumhousing 3 Installation Instructions 3.1 General Installation Notes Be very careful when working with batteries. Wear eye protection. Have fresh water available to wash and clean any contact with battery acid. Never short circuit the battery positive and negative terminals and wires which may cause explosion or fire.
3.2 Wiring 1. Connect components to the charge controller in the sequence as shown above picture and pay much attention to the “+”(Red)and “-“(Black).Always power the battery First. 2. After power the battery, check the battery indicator on the controller, it will be green.
4 Operation Indicators 4.1LED Battery Status LED indicator Charging Status LED indicator Indicator Status Description Green On Solid Normal Slowly Green In charging Flashing Green No charge Green On Solid Normal Slowly Green Full Flashing Green Fast Flashing Over voltage Orange On Solid Under voltage...
Battery over Flashing temperature Charging and battery indicator System voltage (red)flashing simultaneously error Charging and battery Controller indicator(orange)flashing overheating simultaneously Setting Operation Three methods to program the controller: 1–Remote Meter,MT50/MT100(Use dedicated TTL232 to RS485 communication cable with CC-TTL-RS485-200U). 2–Super Parameter Programmer, SPP-01(Use dedicated TTL232 to TTL232 communication cable with CC-TTL-TTL-150U).
Note: Please refer to the user manual of MT, SPP-01 and PC software for more details. · Load Set 1.Manual Control 2.Light ON/Off (default) 3.Light ON+ Timer 4.Time Control · Battery Type 1.Gel 2.Sealed(default) 3.Flooded 4.User 5 Protection, Troubleshooting 5.1 Protection ·...
· Battery working voltage error If battery voltage does not match controller working voltage, controller will stop working. After correcting the voltage, the fault must be cleared by restarting the controller or sending a “remote load switch” command. · Damaged Temperature Sensor If the temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25℃...
Page 13
Battery voltage Check the battery voltage. If it Green Battery higher than over over high, disconnect the solar LED indicator voltage module immediately and change fast flashing disconnect a new controller. voltage(OVD) Battery Load output is normal. Charging Battery under LED indicators LED indicator will return to green voltage...
Choose the wrong battery Correct the right battery type; type; Using the Using the configuration of the SOC value reconfigured charging voltage compensation if incorrect profile of the choosing the user defined battery user defined type and ignore the SOC battery type.
Page 15
Battery Voltage Parameters (parameters is in 12V system at 25℃, please use X 2 in 24V system) Control Parameters Battery charging Sealed Flooded User setting Over Voltage 16.0V 16.0V 16.0V 9~17V Disconnect Voltage Charging Limit 15.0V 15.0V 15.0V 9~17V Voltage Over Voltage 15.0V 15.0V;...
Page 16
Notes: 1.The default battery type is Sealed. For Gel, Sealed, Flooded battery type, the voltage point is fixed, unable to modify it. 2.User type is the user defined battery type. The default value is the same as sealed type. When modify it, please follow the below logistic relation: a ) Over Voltage Disconnect Voltage>Charging Limit Voltage≥...
