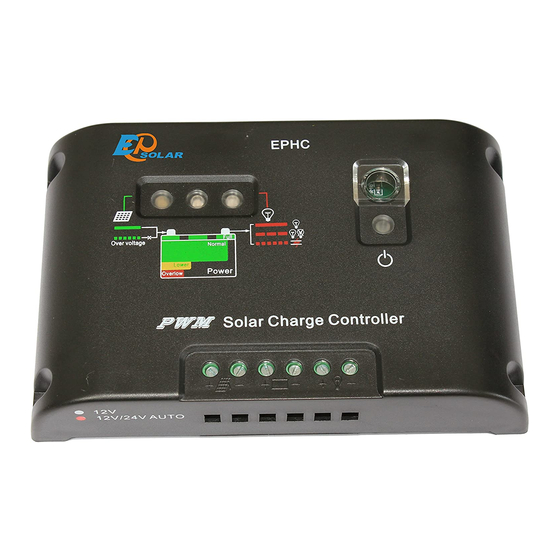

Epsolar EPHC10-EC series Instruction Manual

Solar charge controller

Table of Contents

Download this manual

INSTRUCTION MANUAL

INSTALLATION

Note: carefully check before making each connection to be certain

the polarity is correct

----------For solar charge controller

----------EPHC10-EC series



Connect wires in order indicated 1—6



Use with 12V or 24V batteries only



Use with sealed batteries only



Use with 12V or 24V systems only



Do not exceed Solar and Load ratings 10A

Table of Contents

Do you have a question about the EPHC10-EC series and is the answer not in the manual?

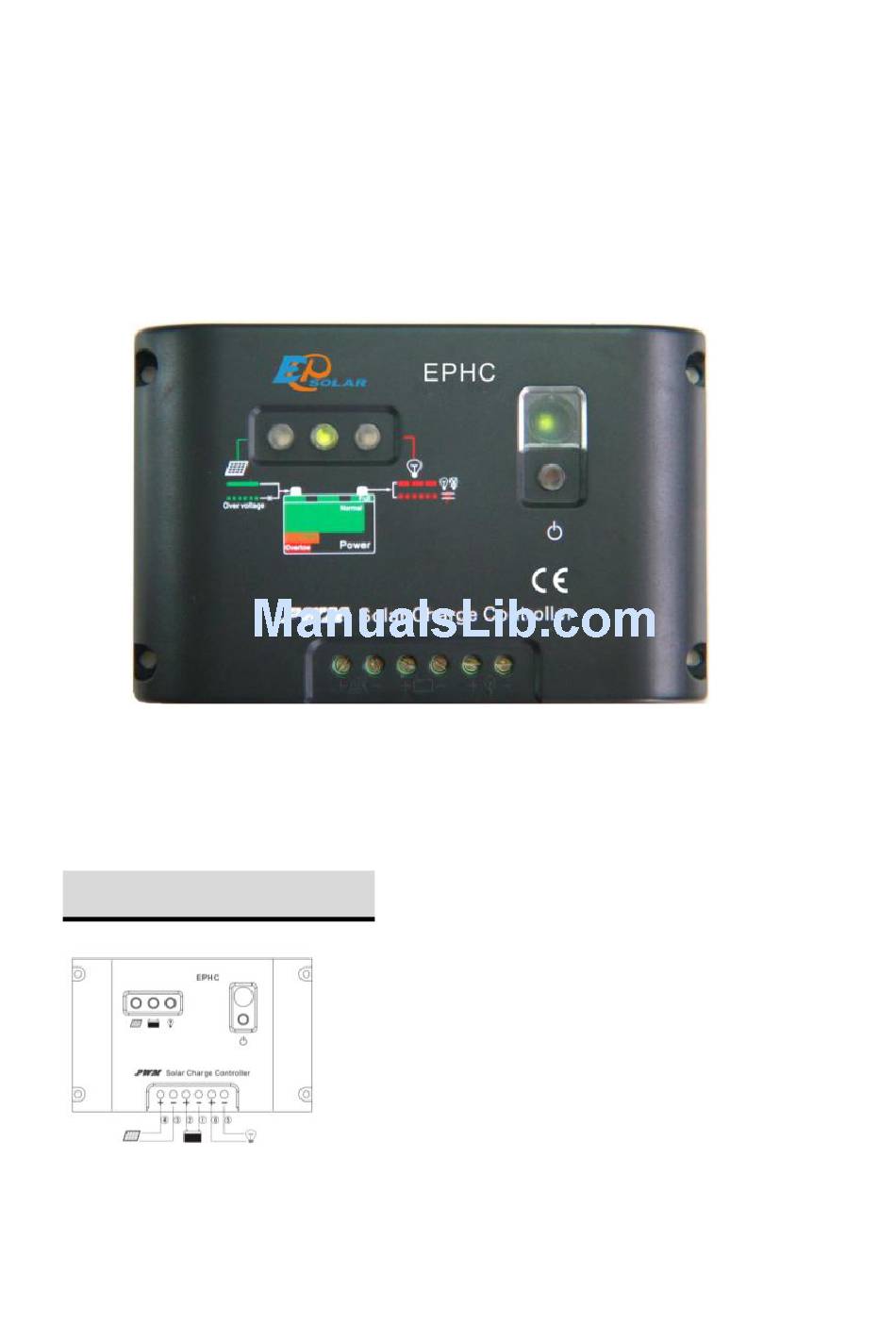

Page 1 INSTRUCTION MANUAL ----------For solar charge controller ----------EPHC10-EC series INSTALLATION  Connect wires in order indicated 1—6  Use with 12V or 24V batteries only  Use with sealed batteries only  Use with 12V or 24V systems only  Do not exceed Solar and Load ratings 10A...
Page 2 LED indicator Green ON when solar is charging battery Green blink when the system over voltage Green ON when battery level in the right range Green slowly flashing when battery level full Yellow ON when battery level low Red ON when loads cut off Red slowly flashing when it’s over load (The load amps is 1.25 times of rated current for 60 seconds, or the load amps is 1.5 times of rated current for 5 seconds)
Page 3 press the switch to reset the controller immediately. While the over load occurs within 20s, press the switch and the load will be reconnected after 10s. While the over load occurs over 20s, press the switch and the load will be reconnected immediately.
Page 4  Microcontroller digital accuracy  Type of Charging Series PWM Temperature compensation charging  Electronic protections Short circuit and over current- load Reverse polarity- battery Reverse current at night Limits high voltage to protect loads Lightning protection  Tropicalization Conformal coated printed circuit board ...
Page 5 SYSTEM MAIN CIRCUIT DIAGRAM MECHANICAL DRAWING...
