INSTRUCTION MANUAL

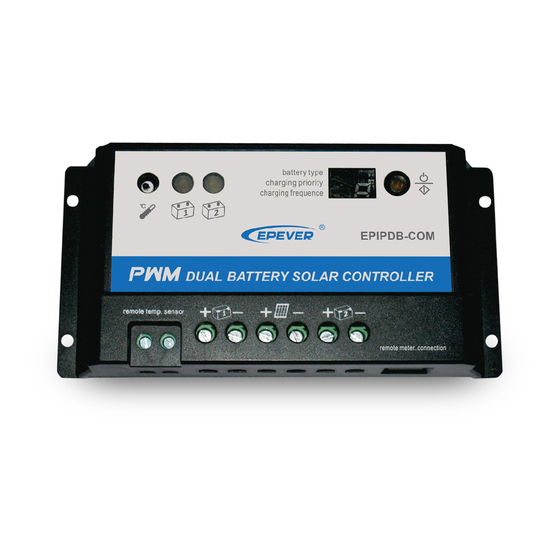

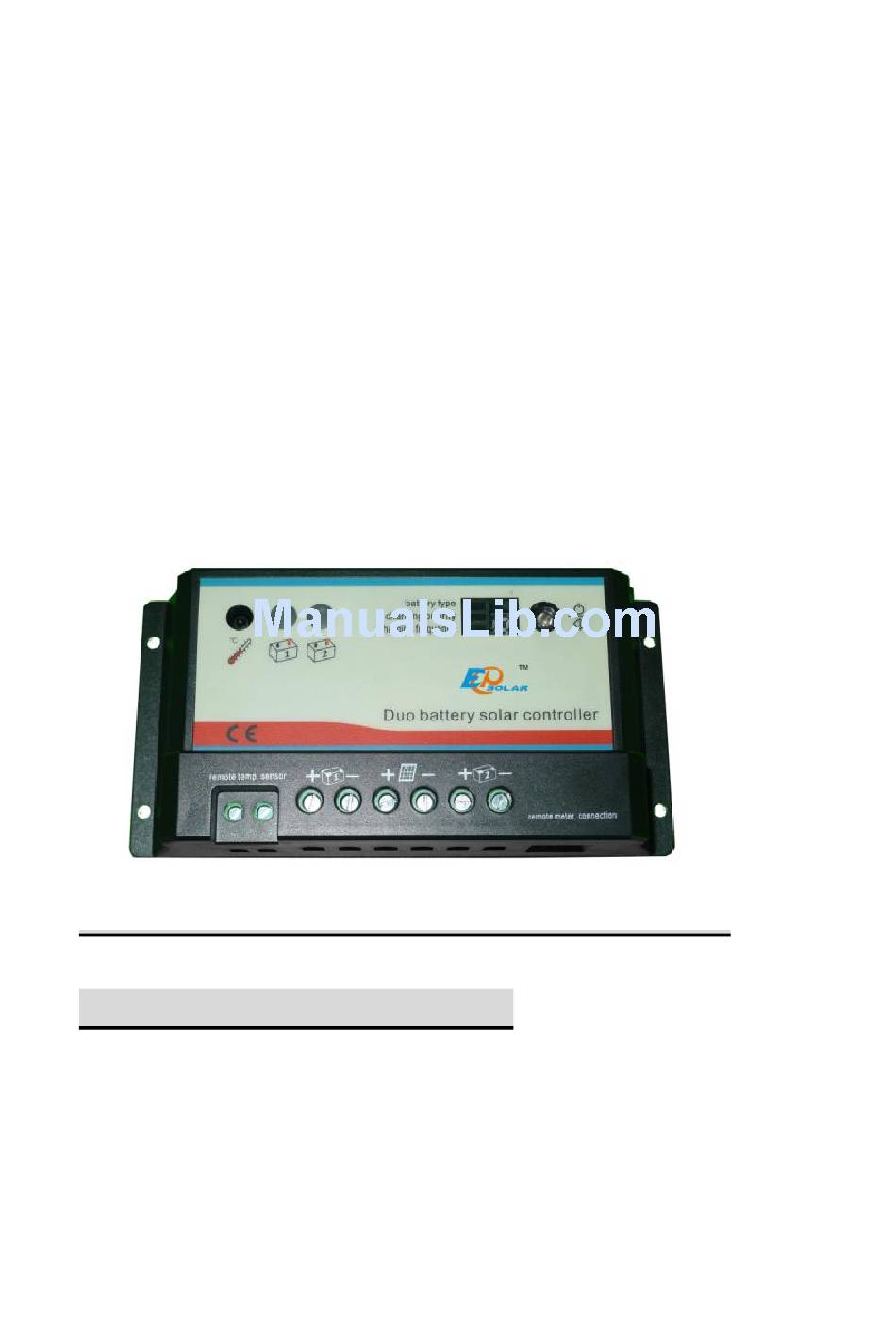

---------- Duo-battery charging solar controller,
For RVs, Caravans, and boats
----------EPIPDB-COM series
RATINGS (12/24VDC Auto)
EPIPDB-COM, 10A, 12/24VDC Auto
EPIPDB-COM, 20A, 12/24VDC Auto
NOTES: For use with solar panels only
Advertisement
Table of Contents
Related Manuals for Epsolar EPIPDB-COM series
Summary of Contents for Epsolar EPIPDB-COM series
- Page 1 INSTRUCTION MANUAL ---------- Duo-battery charging solar controller, For RVs, Caravans, and boats ----------EPIPDB-COM series RATINGS (12/24VDC Auto) EPIPDB-COM, 10A, 12/24VDC Auto EPIPDB-COM, 20A, 12/24VDC Auto NOTES: For use with solar panels only...
- Page 3 TECHNICAL INFORMATION Sealed Flooded Setpoint battery battery battery Equalize charging voltage — 14.6V 14.8V charging voltage Boost 14.4V 14.2V 14.6V charging voltage Float 13.8V 13.8V 13.8V Maximum solar voltage 30V（12V System） 55V（24V System） Battery voltage range 8～15V Boost time 120 minutes Self-consumption 4mA at night, 10mA at charging Meterbus connection...
- Page 4 (Note: connect the components as the 1-6) Connect with the battery #1 Connect with the battery #2 Connect with the PV. Remote temp. sensor A connection point for RTS(option) to remotely monitor battery temperature Local temp. sensor Measures ambient temperature. Battery regulation is adjusted accordingly For battery 1 Provides charging &...
- Page 5 LED first according to the following information, and then press the switch for 5 seconds until the number flashing, choose one number as you need, and leave it and the number you set will be saved. led is the battery type setting. Number shows Battery type Sealed battery...
- Page 6 led is for charging frequency. Number shows PWM Charging frequency 25Hz(pre-set) 50Hz 100Hz TROUBLESHOOTING LED blinking, short circuit, check the PV and battery, and make sure that they are in correct connection LED slowly flashing, fully charged LED ON, on charging LED frequent flashing, with battery, no charging LED OFF, no battery or over voltage MECHANICAL DRAWING...
