As long as this terminator is attached, you do not need to take any further

action. However, if you have other devices attached to the cable, make sure

that they have termination removed or disabled.

Note:

External drives

All DAT external tape drives are supplied with the appropriate cable and

LVD terminators.

Make sure the terminator is firmly attached to the SCSI-OUT connector on

the rear of the device when you install it. Always use the supplied LVD

terminator for proper operation.

August 2009

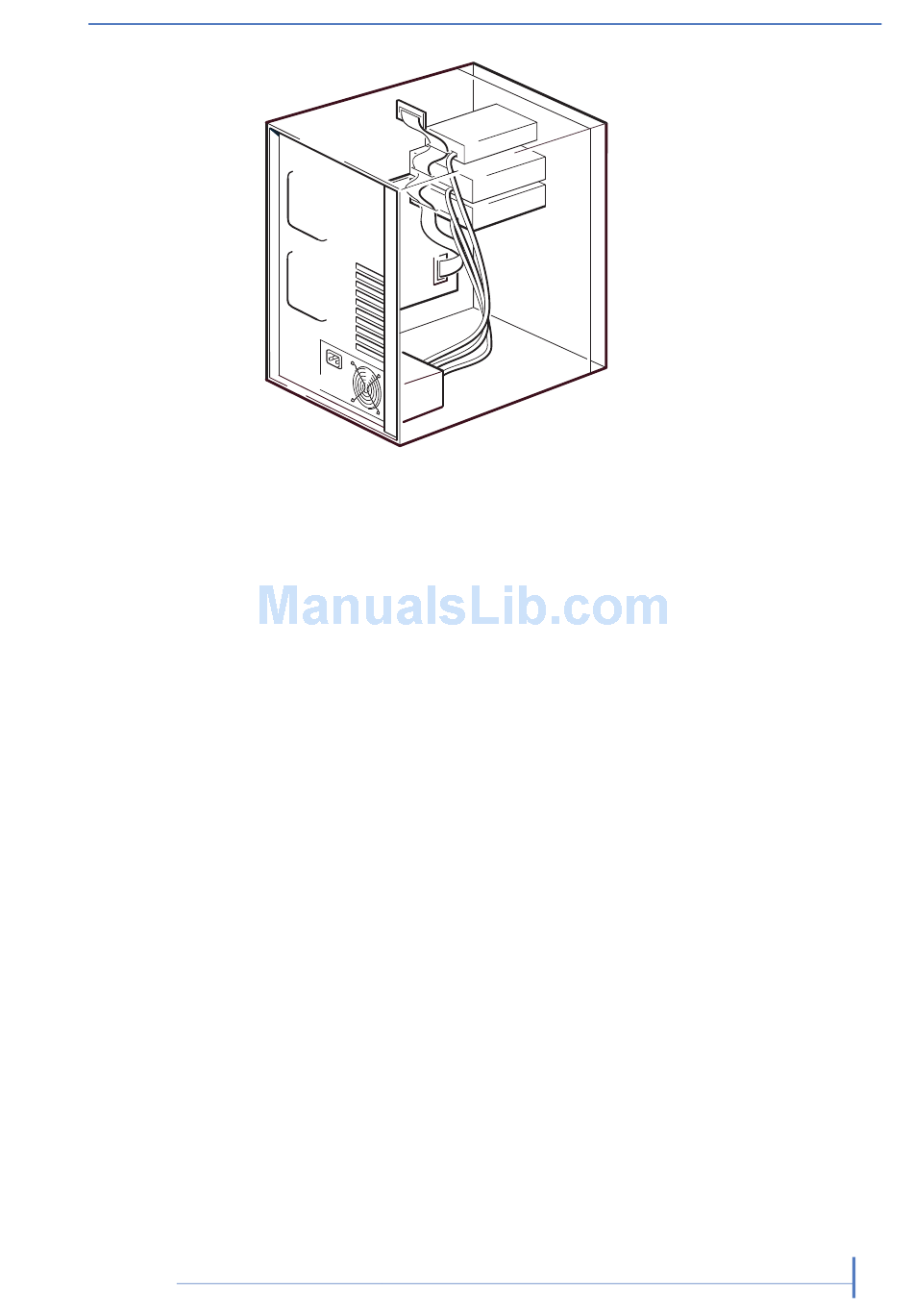

If you have an internal and external device attached to the

same SCSI bus, the HBA will be in the middle of the cable

and thus its termination must be disabled. See the host

bus adapter's documentation for details of how to do this.
