Secure the drive

Secure the drive, as described in your server documentation. Ensure blanking
plates are in place over empty bays and replace the cover on the server.
1. plastic rail
2. server latch, push down to lock the tape drive into position

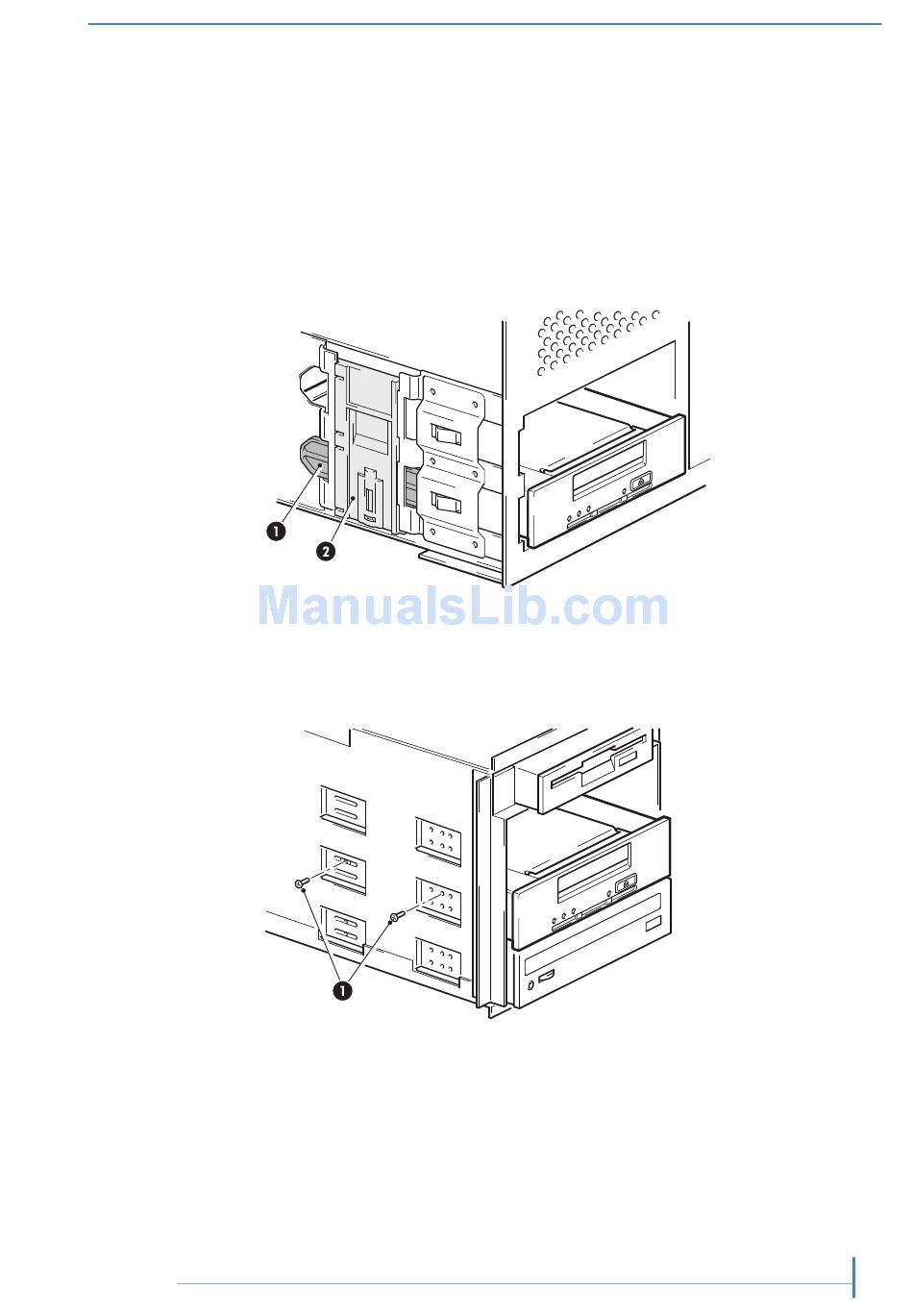

Figure 2-5 Securing drive example 1, mounting hardware used

1. M3 screws, supplied with tape
drive

Figure 2-6 Securing drive example 2, no mounting hardware used
