to Four Displays. Independently.
Connect and Access Any Four (4)
Hi Def. Sources to Any Four Hi Def. Displays

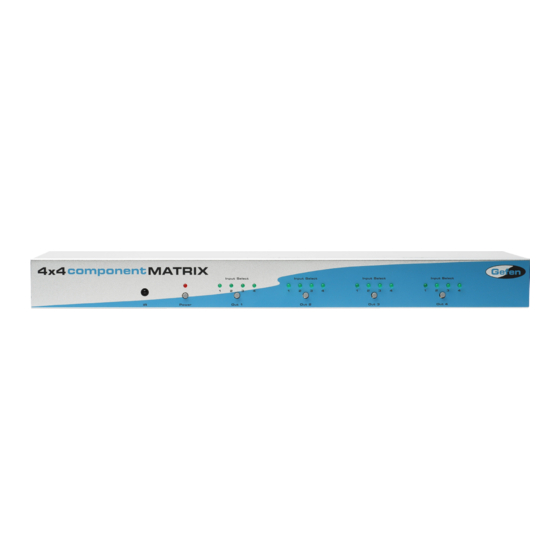

The 4x4 COMPONENT Matrix routes high definition
video in multiple resolutions up to 1080p plus stereo
audio from any of the four Component /Audio sources to
four displays. Any four Component / Audio sources to any
four displays using matrix switching allows for maximum
versatility for integrated systems. The 4x4 Component /
Audio matrix eliminates the need to disconnect and
reconnect sources or displays. It works with DVD players,
DVR systems, HT PCs, and satellite set top boxes that
connect via component to displays. Every source is
accessible at all times by any display by routing it using
an IR remote or RS232 smart control devices.
How It Works
You simply connect the four component and audio sources
to the Matrix's inputs. Then connect four displays to the
Matrix's outputs. Once the sources, the matrix and the
displays are powered and connected, you simply select
which sources you want view on which displays using the
IR remote or RS232 smart control devices.
Note: This Component/Audio product supports BOTH
Audio and Video signals, If used in conjunction with the
EXT-COMPAUD-141 it will extend component video and
audio up to 1000 feet (300 meters) using one CAT-5e
cable
Four Component Sources
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
Features:
Switch easily between any four component /audio sources
Distributes any of the 4 inputs to any or any combination of the 4 displays
Maintains high resolution video - beautiful, sharp HDTV resolutions
up to 1080p
Discrete IR remote (included)
Serial RS-232 remote port
Rack ears included
Local selection from the front panel
Specifications:
Video Amplifier Bandwidth: 350 MHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Horizontal Frequency Range: 15-70 Khz
Vertical Frequency Range: 30-170 Hz
Video In/Out: RCA Component
Audio In/Out: RCA Stereo
Remote Control Port: RS232 female, mini-stereo
Power Supply: 12V DC
Power Consumption: 20 watts (max.)
Dimensions: 17"W x 1.75"H x 5.875"D
Shipping Weight: 10 lbs.
e-mail: office@meditronik.com.pl
EXT-COMPAUD-444
Advertisement
Table of Contents
Related Manuals for Gefen 4x4 Component Audio Matrix
Summary of Contents for Gefen 4x4 Component Audio Matrix
- Page 1 Four Component Sources to Four Displays. Independently. EXT-COMPAUD-444 Connect and Access Any Four (4) Hi Def. Sources to Any Four Hi Def. Displays Features: Switch easily between any four component /audio sources The 4x4 COMPONENT Matrix routes high definition Distributes any of the 4 inputs to any or any combination of the 4 displays video in multiple resolutions up to 1080p plus stereo Maintains high resolution video - beautiful, sharp HDTV resolutions audio from any of the four Component /Audio sources to...
- Page 2 4x4 Component Audio Matrix U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 4x4 Component Audio Matrix is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Layout Using the 4x4 Component Audio Matrix RMT16-IR Installation RS-232 Interface 4x4 Component Audio Matrix Rack Mount Diagram Specifi cations Terminology Warranty... -
Page 5: Introduction / Operation Notes
READ THESE NOTES BEFORE IN STALL ING OR OPERATING THE 4X4 COMPONENT AUDIO MATRIX • The 4x4 Component Audio Matrix is housed in a metal box for better RF shielding. • The 4x4 Component Audio Matrix works with all component displays... -
Page 6: Features
• Maintains highest video resolution up to 1080p • Each display's inputs can be switched with the IR remote control, front panel push buttons, or through RS232 Includes: (1) 4x4 Component Audio Matrix (4) 5 RCA Cables (M-M) (1) 12VDC 5A Power Supply (1) User Manual... -
Page 7: Panel Layout
PANEL LAYOUT... -
Page 8: Using The 4X4 Component Audio Matrix
Connect the component with audio displays to the outputs on the 4x4 Component Audio Matrix. Connect the 12VDC power supply to the 4x4 Component Audio Matrix Use the push buttons for each display on the front of the unit to select the source for that display. -
Page 9: Rmt16-Ir Installation
RMT16-IR INSTALLATION 1. Remove battery cover from the back of the RMT16-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 10: Rs-232 Interface
RS-232 INTERFACE Binary Table ASCII Corresponding Binary ASCII Corresponding Binary RMT16-IR RMT16-IR Button Button 0011 0001 0011 1001 0011 0010 0110 0001 0011 0011 0110 0010 0011 0100 0110 0011 0011 0101 0110 0100 0011 0110 0110 0101 0011 0111 0110 0110 0011 1000 0110 0111... -
Page 11: 4X4 Component Audio Matrix Rack Mount Diagram
4X4 COMPONENT AUDIO MATRIX RACK MOUNT DIAGRAM... -
Page 12: Specifi Cations
SPECIFICATIONS Input ..........YPbPr x 4 or RGsB x 4 (or RGBHV) 1 Vp-p@ 75 Output ............... YPbPr x 4, or RGsB (or RGBHV) x 4 Analog audio input/output ..........Audio 2 Vrms max 47k ohm Bandwidth ................... 480MHz (-3dB) Video Range ..................... -
Page 13: Terminology
TERMINOLOGY Short form for Display Data Channel. It is a VESA standard for communication between a monitor and a video adapter. Using DDC, a monitor can inform the video card about its properties, such as maximum resolution and color depth. The video card can then use this information to ensure that the user is presented with valid options for confi...
