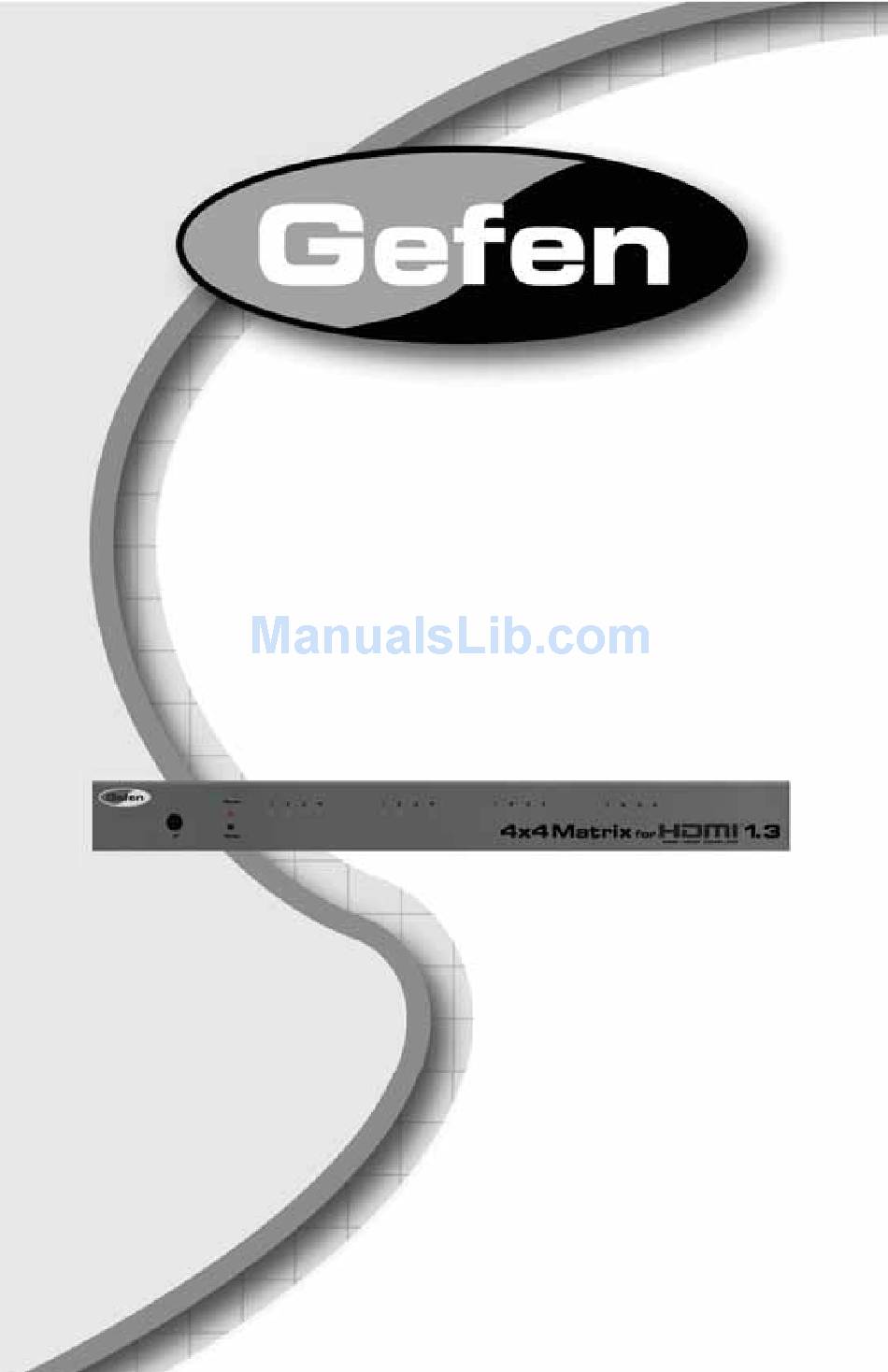

- Page 1 ® 4x4 Matrix for ® HDMI EXT-HDMI1.3-444 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 4x4 Matrix for HDMI 1.3 is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 4x4 Matrix for HDMI 1.3 EDID Modes RMT-16IR Remote Description 4x4 Matrix for HDMI 1.3 Remote Installation 10 IR Channel Confi guration 11 RS-232 Serial Communication Control 12 Specifi... -
Page 4: Introduction
Congratulations on your purchase of the 4x4 Matrix for HDMI 1.3. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 4X4 MATRIX FOR HDMI 1.3 • You should connect all the cables and power supply prior to connecting power to the HDMI sources and 4x4 Matrix for HDMI 1.3. • When powering the sources, the display needs to point to the source input. -
Page 6: Features
• Rack-mountable • HDCP compliant Package Includes: (1) Gefen 4x4 Matrix for HDMI 1.3 (4) 6 ft. HDMI cables (M-M) (1) IR Remote Control Unit (1) 5V DC Locking Power Supply (1) Set of Rack Ears (1) User Manual... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS IR (Infrared) Receiver This receiver will accept command for switching between HDMI input devices using the included RMT-16IR remote control. Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected between the unit and a open wall power receptacle. Display 1-4 Selected Input LED Indicator There is a set of 4 LEDs for each of the four output ports. -
Page 9: Connecting And Operating The 4X4 Matrix For Hdmi 1.3
Power on all output devices (i.e. displays) fi rst and the source devices second. Wiring Diagram for the 4x4 Matrix for HDMI 1.3 HDMI CABLE HDMI Source HDMI Source HDMI Source HDMI Matrix HDMI Source HDMI Display HDMI Display HDMI Display HDMI Display EXT-HDMI1.3-444... -
Page 10: Edid Modes
EDID MODES EDID. What is it and what is it used for? Under normal circumstances, an source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/ display. -
Page 11: Rmt-16Ir Remote Description
RMT-16IR REMOTE DESCRIPTION The RMT-16IR remote control will allow the user to select which source will be routed to which output. Each of the 4 outputs are assigned a group of 4 buttons that will correspond to the 4 source inputs. Please use the information below when selecting the desired source for each display. -
Page 12: 4X4 Matrix For Hdmi 1.3 Remote Installation
4X4 MATRIX FOR HDMI 1.3 REMOTE INSTALLATION Installing the IR Remote Control Battery Remove the battery cover on the back of the IR Remote Control unit. Insert the included battery into the open battery slot. The positive (+) side of the battery should be facing up. -
Page 13: Ir Channel Confi Guration
IR CHANNEL CONFIGURATION How to Resolve IR Code Confl icts In the event that IR commands from other remote controls confl ict with the supplied RMT-16IR remote control, changing the remote channel will alleviate this issue. The RMT-16IR remote control has a bank of DIP switches for confi... -
Page 14: Rs-232 Serial Communication Control
RS-232 SERIAL COMMUNICATION CONTROL 5 4 3 2 1 1 2 3 4 5 9 8 7 6 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface Binary Table ASCII Corresponding Binary... -
Page 15: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................... 1.2 V p-p Input DDC Signal ................5 V p-p (TTL) Single Link Range ..............1080p/1920 x 1200 HDMI Connector ..............Type A 19-Pin Female Remote Control Port ........... RS-232 female, mini-stereo Power Supply .................... -
Page 16: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 17 Rev A5 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
