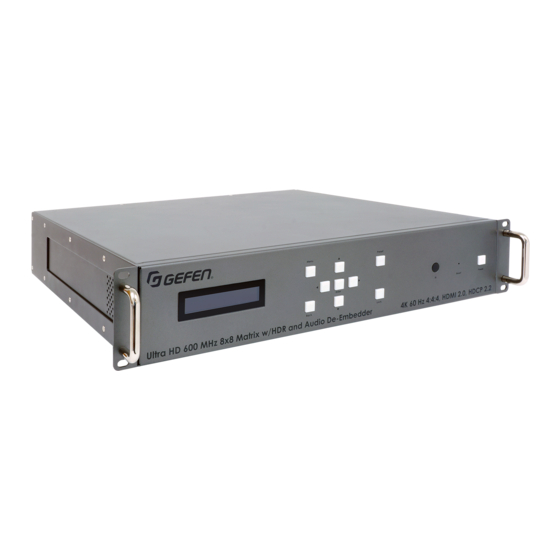

Gefen EXT-UHD600A-88 User Manual

8x8 matrix w/hdr and audio de-embedder
Hide thumbs
Table of Contents

Advertisement

Quick Links

*Preferred
600 MHz
4K ULTRA
8x8 Matrix
w/HDR and Audio De-Embedder
EXT-UHD600A-88
User Manual
Version A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-UHD600A-88 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gefen EXT-UHD600A-88

Summary of Contents for Gefen EXT-UHD600A-88

  • Page 1 *Preferred 600 MHz 4K ULTRA 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 User Manual Version A1...
  • Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 Warranty Information For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen Web site at http://www.gefen.com/connect/warranty-and- return-policy...

  • Page 4: Technical Support

    Contacting Gefen Technical Support Technical Support (707) 283-5900 (800) 472-5555 8:00 AM to 5:00 PM Monday - Friday, Pacific Time Email support@gefen.com http://www.gefen.com Mailing Address Gefen Core Brands, LLC c/o Customer Service 1800 S McDowell Blvd Petaluma, CA 94954 USA...
  • Page 5 © 2017 Core Brands, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen® is a registered trademark of Core Brands, LLC. Gefen and Core Brands, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.
  • Page 6 Licensing This product uses software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses.
  • Page 7 • IP control via Telnet, UDP, and the built-in web server interface • IR remote control • Gefen Syner-G™ software simplifies initial IP configuration and EDID Management • Field-updatable firmware via web server interface • 2 U tall enclosure •...

  • Page 8: Packing List

    The 4K Ultra HD 600 MHz 8x8 Matrix w/ HDR and Audio De-Embedder ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your reseller or Gefen Technical Support. •...

  • Page 9: Table Of Contents

    Table of Contents Getting Started Introduction......................2 Front Panel ....................2 Rear Panel ....................3 IR Remote Control ..................5 Installing the Batteries ................... 8 Setting the IR Channel .................. 9 Installation ......................10 Connection Instructions ................10 Application Diagram ..................11 Network Configuration using Syner-G ............
  • Page 10 Table of Contents Routing Inputs and Masking Outputs ............75 Routing Presets ................... 78 Input and Output Status ................81 Changing Input and Output Names ............. 82 Audio ......................83 HPD Control ....................84 HDCP ......................85 Setting the EDID Mode ................87 Copying EDID Data ..................
  • Page 11 This page left intentionally blank.
  • Page 12 This page left intentionally blank.

  • Page 13: Getting Started

    600 MHz 4K ULTRA 8x8 Matrix w/HDR and Audio De-Embedder Getting Started...

  • Page 14: Introduction

    Preset Enter Power Reset Lock Back 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 IP Control IR In/Ext Out A Out B Out C Out D Out E Out G...

  • Page 15: Rear Panel

    Connect a grounding wire (16 AWG or greater) from this terminal to an approved ground path. IR In / Ext Connect an IR extender (Gefen part no. EXT-RMT-EXTIRN) or an electrical IR cable from an automation system to this port.
  • Page 16 Introduction Name Description Cooling fan assembly Provides active cooling for the matrix by expelling warm air from the enclosure. To prevent overheating, make sure this vent is not blocked. 24V DC Connect the included 24V DC power supply to this power connector. page | 4...

  • Page 17: Ir Remote Control

    Introduction IR Remote Control Power Power Mute Mute Volume Volume Mask Mask Output Output Menu Menu Preset Preset Back Back Lock Lock Down Down Input Input RMT-88A RMT-88A Name Description Output buttons (A - H) Press these buttons to select the desired input when performing routing operations.
  • Page 18 Introduction Name Description Input buttons (1 - 8) Press these buttons to select the desired input when performing routing operations. Each button corresponds to an In port (1 - 8) on the rear panel of the matrix. Press this button to block an input. Turning Off Inputs (page 26) more information.
  • Page 19 Introduction Name Description Battery compartment Press this button to toggle between (shown open) locking and un Accepts two 1.5V AAA- type batteries. See Installing the Batteries (page 8) for more information. page | 7...

  • Page 20: Installing The Batteries

    Introduction Installing the Batteries Remove the back cover the IR remote control unit. Insert two 1.5V AAA-type batteries, as shown, within the battery compartment. Power Mute Volume Mask Output Menu Preset Back Lock Down Input RMT-88A Replace the back cover. Warning! Risk of explosion if battery is replaced by an incorrect type.

  • Page 21: Setting The Ir Channel

    Introduction Setting the IR Channel Use the following DIP switch settings to set the IR channel of the IR remote control. In order for the included IR remote control to communicate with the matrix, the IR remote control must be set to the same channel as the matrix. Channel 1 (default): Channel 2: DIP1 = OFF...

  • Page 22: Installation

    ► IR Control (Optional) Connect an IR extender (Gefen part no. EXT-RMT-EXTIRN) or an electrical IR cable from an automation system to the IR In / Ext port on the rear panel of the matrix. Connecting an IR extender is useful if the IR sensor on the front panel will be hidden from view.

  • Page 23: Application Diagram

    IR Out De-Embeddeed Audio EXT-RMT-EXTIRN IR Extender Power Source for Streaming Sources Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder (Web Interface, Telnet, or UDP) 4K Ultra HD Automation Displays Controller with RS-232 Interface EXT-UHD600A-88 page | 11...

  • Page 24: Network Configuration Using Syner-G

    Network Configuration using Syner-G Launch the Gefen Syner-G application. Download the application here: http://www.gefen.com/support/download.jsp Select the matrix (EXT-UHD600A-88) from the list of products. Under the Device Settings section, select either Static or DHCP from the IP Mode drop-down list. ►...
  • Page 25 Installation Click the Save button at the bottom of the screen. The matrix will automatically reboot and use the new network settings. Use the IP address of the matrix to access the built-in web interface or start a Telnet session. See the following for more information: ►...
  • Page 26 This page left intentionally blank.

  • Page 27: Basic Operation

    600 MHz 4K ULTRA 8x8 Matrix w/HDR and Audio De-Embedder Basic Operation...

  • Page 28: Powering The Matrix

    Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder The first piece of information that is displayed is the model and current firmware. EXT-UHD600A-88 Be sure to check the Gefen website for the latest version of firmware. IP Control IR In/Ext...

  • Page 29: Viewing The Routing Status

    Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 EXT-UHD600A-88 In the example below, the source that is connected to In 1 is currently routed to the display (sink device) that is...

  • Page 30: Routing Inputs To Outputs

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 out B :output B IP Control IR In/Ext Out A Out B Out C Out D...
  • Page 31 Routing Inputs to Output Press and release the ▲ or ▼ buttons to select the desired input. In this example, we will select Input 4. out G :output G >A/V In:input 04 Once the desired input is selected, press the Enter button. The arrow cursor, next to the input, will disappear indicating that the input can not be changed.

  • Page 32: Using The Ir Remote Control

    Routing Inputs to Output Using the IR Remote Control Information The front panel display will only show activity if a routing operation is being performed on the output that is displayed. Otherwise, the routing operation is performed in the background. To verify that the new routing state has been executed, you can view the current routing state for that output.

  • Page 33: Adjusting The Output Volume

    Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Press the Volume button on the IR remote control. The front panel display will prompt for the output to be adjusted. EXT-UHD600A-88 IP Control IR In/Ext Out A...
  • Page 34 Adjusting the Output Volume Information If the Down arrow button is pressed when the volume level is set to 0, then the volume will be returned to 100. Similar behavior exists if the volume level is set to 100 and the Up arrow is pressed: the volume level will be set to 0. Press the Back button to accept the volume setting for the selected output and return to the Volume Select Output screen.

  • Page 35: Muting And Unmuting Audio

    4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder Press the Mute button on the IR remote control. The front panel display will prompt EXT-UHD600A-88 for the output to be adjusted. IP Control...
  • Page 36 Muting and Unmuting Audio Press the Back button to accept the volume setting for the selected output and return to the Mute Select Output screen. MUTE SELECT OUTPUT Select another output using the Output buttons or press the Back button a second time to return to the routing screen.

  • Page 37: Masking Outputs

    Masking Outputs When masking outputs through the front panel, the IR remote control must be used. Outputs can also be masked by by using the built-in web interface. See Routing Inputs and Masking Outputs (page 75) for more information. When an output is masked, the signal is blocked at the output. Let’s say Input 02 is routed to Output A, Output B, and Output C.

  • Page 38: Turning Off Inputs

    Turning Off Inputs Turning off an input simulates a source that is not present. Setting an input to the OFF state can only be performed through the IR remote control or the built-in web interface. See Routing Inputs to Outputs (page 18) for more information.

  • Page 39: Locking The Matrix

    A/V In:input 01 Enter Power Reset Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 ► Unlocking the Matrix IP Control IR In/Ext Out A Out B Out C...

  • Page 40: Using The Ir Remote Control

    Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder Menu Preset Back Lock EXT-UHD600A-88 Down ► Unlocking the Matrix IP Control IR In/Ext Out A Out B Out C...

  • Page 41: Routing Presets

    Power Back Lock Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 The Preset selection screen will be displayed. EXT-UHD600A-88 IP Control IR In/Ext Out A Out B Out C Out D...

  • Page 42: Using The Ir Remote Control

    Routing Presets Using the IR Remote Control Start from any screen. Press the Preset button on the IR remote control. Use the set of Input buttons, from the bottom- portion of the IR remote control to select the Power Power desired preset.

  • Page 43: Menu System

    Menu System Accessing the Menu System The front-panel menu system provides the ability to locally control many of the matrix features. However, we recommend using the built-in Web interface to control the matrix. For more information on accessing the web interface, see The Web Interface (page 68).
  • Page 44 A/V In:input 01 Enter Reset Power Lock Back Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 EXT-UHD600A-88 IP Control IR In/Ext Information Out A Out B Out C Out D...

  • Page 45: Audio Output Mode

    Enter Reset Power Lock Back Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Power Out A Out B Out C...
  • Page 46 Menu System Once the desired output is selected, press the Enter button on the front panel or the OK button on the IR remote control. The arrow cursor will appear next to the current selection for the output. AUDIO OUTPUT MODE >OUTPUT C NAME: VAR Press and release the ▲...

  • Page 47: Hpd Control

    Enter Reset Power Lock Back Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Power Out A Out B Out C...
  • Page 48 Menu System The input selection screen will be displayed. Input 01 will be displayed, by default. hdp control: pulse: input 01 Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired input. These buttons will glow blue when they are pressed on the front panel.

  • Page 49: Hdcp Control

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Out A Out B Out C...
  • Page 50 Menu System Press the Enter button on the front panel or on the IR remote control to display the input control screen. hdcp control: input input 01: 2.2 Press and release the ▲ or ▼ buttons on the front panel or on the included IR remote control, to select the desired input or output.
  • Page 51 Menu System 11. Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting. input 03 >1.4 and below 12. Press the Enter button on the front panel or the OK button on the IR remote control to save the setting.

  • Page 52: Setting The Edid Mode

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Power Out A Out B Out C...
  • Page 53 Menu System Press the Enter button on the front panel or on the IR remote control to display the input control screen. Input 01 will be displayed by default. edid mode input 01 Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired input.
  • Page 54 Menu System 11. Once the desired EDID has been selected, press the Enter button on the front panel or the OK button on the IR remote control. The input selection screen will be displayed. edid mode input 05 12. To set the EDID on another input, repeat steps 7 - 11. 13.

  • Page 55: Ip Settings

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Out A Out B Out C...
  • Page 56 Menu System ► Setting the IP Mode From the IP Mode screen, press the Enter button on the front panel or the OK button on the IR remote control. An arrow cursor will be displayed next to the current IP mode, indicating that it can be changed: ip mode: >static Press and release the ▲...
  • Page 57 Menu System Press the ▲ or ▼ buttons on the front panel or on the IR remote control, to change the numerical value of the digit (0 - 9). ip address: 092.168.001.072 Press the ◄ or ► buttons on the front panel or on the IR remote control to move between each digit in the IP address.
  • Page 58 Menu System Press the ▲ or ▼ buttons on the front panel or on the IR remote control, to change the numerical value of the digit (0 - 9). subnet mask: 255.255.055.000 After the desired address has been set, press the Enter button on the front panel or the OK button on the IR remote control to save the change.
  • Page 59 Menu System Press the ◄ or ► buttons on the front panel or on the IR remote control to move between each digit in the IP address. After the desired IP address has been set, press the Enter button on the front panel or the OK button on the IR remote control to save the change.

  • Page 60: Tcp / Telnet Settings

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 The Setup menu will be displayed: IP Control IR In/Ext Out A Out B Out C...
  • Page 61 Menu System ► Enabling / Disabling TCP (Telnet) Access From the TCP access screen, press the Enter button on the front panel or the OK button on the IR remote control. tcp access: enabled Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting.
  • Page 62 Menu System ► Setting the TCP Listening Port From the TCP access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the TCP Port option. The current TCP port will be displayed. tcp port: Press the Enter button on the front panel or the OK button on the IR remote control to edit the port number.
  • Page 63 Menu System ► Enabling / Disabling Telnet Welcome Message From the TCP access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Telnet Welcome option. The current setting will be displayed. The default setting is show. TELNET WELCOME: SHOW Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 64 Menu System ► Enabling / Disabling UDP Access From the UDP access screen, press the Enter button on the front panel or the OK button on the IR remote control. An arrow cursor will be displayed next to the current setting, indicating that it can be changed: UDP access: disabled Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 65 Menu System ► Setting the UDP Listening Port From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the UDP Port option. The current UDP port will be displayed. Udp port: 50007 Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 66 Menu System ► Enabling / Disabling Remote UDP Access From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Remote UDP Access option. The current setting will be displayed. remote UDP access: disabled Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 67 Menu System ► Setting the Remote UDP Address From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Remote UDP Address option. The current UDP address will be displayed. remote UDP address: 192.168.001.255 Press the Enter button on the front panel or the OK button on the IR remote...

  • Page 68: Discovery Settings

    Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder The Setup menu will be displayed: EXT-UHD600A-88 IP Control IR In/Ext Out A Out B Out C Out D...
  • Page 69 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. discovery: )enabled Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 70: Rs-232 Feedback

    Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder The Setup menu will be displayed: EXT-UHD600A-88 Power IP Control IR In/Ext Out A Out B Out C...
  • Page 71 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. rs-232 feedback: )Enabled Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 72: Adjusting The Lcm Brightness

    Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder The Setup menu will be displayed: EXT-UHD600A-88 Power IP Control IR In/Ext Out A Out B Out C...
  • Page 73 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. lcd brightness: Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 74: Setting The Matrix Ir Channel

    Reset Power Back Lock Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 The Setup menu will be displayed: EXT-UHD600A-88 Power IP Control IR In/Ext Out A Out B Out C...
  • Page 75 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current IR channel. The cursor will appear next to the current IR channel. IR CHANNEL: Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired IR channel.

  • Page 76: Resetting The Matrix

    Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder The Setup menu will be displayed: EXT-UHD600A-88 Power IP Control IR In/Ext Out A Out B Out C...
  • Page 77 Menu System Press the Enter button on the front panel or the OK button on the IR remote control. The matrix will prompt to confirm the factory-reset operation. factory reset )yes Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select either Yes or No.

  • Page 78: Rebooting The Matrix

    Enter Reset Power Back Lock 4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2 Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder EXT-UHD600A-88 The Setup menu will be displayed: Power IP Control IR In/Ext Out A Out B Out C...
  • Page 79 Menu System Press the Enter button on the front panel or the OK button on the IR remote control. The matrix will prompt to confirm the factory-reset operation. reboot unit )yes Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select either Yes or No.

  • Page 80: The Web Interface

    The Web Interface Introduction to the Web Interface The Ultra HD 600 MHz 8x8 Matrix w/HDR and Audio De-Embedder includes a built-in web interface. We recommend that the web interface be used to control the matrix as it provides easy management of all features used by the matrix. ►...
  • Page 81 The Web Interface • Administrator The Administrator username provides full access to all features within the web interface. The default password for the Administrator user name is Admin. All passwords are case-sensitive. For information on changing the default password, see Configuring Network Settings (page 95).
  • Page 82 The Web Interface ► Tabs and Sub-tabs The web interface is organized into tabs, in the top-portion of the screen. Clicking on a tab will display a different screen. The Setup and Manage EDID tab have their own set of tabs, which we will refer to as “sub-tabs”, as shown below.
  • Page 83 The Web Interface • If a button is “grayed-out”, then this means that the setting is not available. This usually requires that another setting must be enabled before setting a “sub-set” of that feature. For example, note that both the Login Message on Connect buttons are disabled in the illustration, below: In order to change these particular settings, TCP Access must be enabled.
  • Page 84 The Web Interface Active / Good Columns or rows that are highlighted in green, indicate that an active source or sink is connected to the that input / output. Error Although a rare occurrence, this indicates an error (e.g. HDCP, etc.) with the source or sink device.

  • Page 85: Locking The Matrix

    The Web Interface Locking the Matrix Locking the matrix disables the front-panel controls, IR routing, and the built-in web interface. This is useful in preventing an accidental change to matrix settings by inadvertently pressing any of the front-panel buttons. Information Locking the Matrix Controller will also disable routing and other operations within the Web Interface.

  • Page 86: Viewing The Routing Status

    The Web Interface Viewing the Routing Status Click the Routing tab. Locate the desired output from the rows on the left, then read across until a routing indicator (red square) is encountered. Note the column where the red square is located. Each column identifies an input and each row represents an output.

  • Page 87: Routing Inputs And Masking Outputs

    The Web Interface Routing Inputs and Masking Outputs ► Routing Inputs Click the Routing tab. Located the desired output, from the rows on the left side of the screen. Click the desired input. Use the column, with the input names, as a guide when selecting the input.
  • Page 88 The Web Interface ► Placing an input in the OFF state Click the box in the first column, next to the desired output. The box, in the column, will turn black, indicating that the input is “off”. The OFF is an additional input that can be selected to simulate a source that is not present.
  • Page 89 The Web Interface ► Masking Outputs Click the Routing tab. Mask the desired output by clicking the Mask button. The Mask button will turn red, indicating that the selected output is masked. To unmask the output, click the Mask button again. The button will turn gray. page | 77...

  • Page 90: Routing Presets

    The Web Interface Routing Presets ► Creating / Editing a Preset Click the Routing tab. Under the Presets section, click the Preset Edit button. The preset buttons will begin to flash and the Preset Edit button will read Choose One. page | 78...
  • Page 91 The Web Interface Click the desired preset to edit. The selected preset will be highlighted. In this example, we will select Preset 6. Select the desired routing state for each input/output. See Routing Inputs and Masking Outputs (page 75), if necessary. The preset selections for the selected preset, will be indicated by a green square, as shown below.
  • Page 92 The Web Interface After the desired routing states, for input/output have been assigned, provide a name for the preset in the Preset Name field. ► To clear the preset selections for the current preset, click the Clear All button. ► To use the current routing state as the preset selection, click the Select Current button.

  • Page 93: Input And Output Status

    The Web Interface Input and Output Status Provides video and audio information for all inputs and outputs. Click the Status tab within the built-in web interface. Information on each input is listed in the top portion of the screen. Information on each output is listed in the bottom portion of the screen. Input section Output section The table below outlines the information that is available for each section:...

  • Page 94: Changing Input And Output Names

    The Web Interface Changing Input and Output Names By default, the names of each output are Output A - Output D. The names of each input are Input 1 - Input 4. Each of these names can be changed, as desired, to suit the type of device that is connected to the input or output.

  • Page 95: Audio

    The Web Interface Audio The Audio tab handles how audio is output from the matrix. Click the Setup tab within the built-in web interface. Click the Audio sub-tab. Click either Fixed or Variable for each output. • Fixed In this mode, the output volume is set to 100 and variable adjustment is disabled. •...

  • Page 96: Hpd Control

    The Web Interface HPD Control HPD (Hot-Plug Detect) is an HDMI feature which senses if the HDMI cable is disconnected, from the source or sink device, and then re-initializes the HDMI link if necessary. Within the web interface, the HPD pulse can be sent to the selected input, and reset the HDMI connection without disconnecting any cables.

  • Page 97: Hdcp

    The Web Interface HDCP This feature allows HDCP content to either be passed-through or rejected on each input. Outputs can either follow the input status or can be set to always encode HDCP. Note that using the “Reject” feature, on an input, does not decrypt HDCP content. Click the Setup tab within the built-in web interface.
  • Page 98 The Web Interface For outputs, select the desired button next to the output. ► Follow Input - Click this button to have the output follow the setting used on the input. Click the Follow All button to set all outputs to Follow Input. ►...

  • Page 99: Setting The Edid Mode

    The Web Interface Setting the EDID Mode The EDID Mode tab allows the desired EDID mode (internal preset, external, or custom) to be set for each input. Click the Manage EDID tab within the built-in web interface. Click the EDID Mode sub-tab. Select the desired EDID mode for each input using the drop-down list.
  • Page 100 The Web Interface ► Using a Custom EDID The Custom - User-defined setting is used to store a custom EDID in the selected input. To use a custom EDID, follow the instructions below: Select Custom - User-defined from the drop-down list of the desired input. Copy or upload an EDID to the input that is using the Custom mode.

  • Page 101: Copying Edid Data

    The Web Interface Copying EDID Data The EDID Copy tab allows an EDID to be copied from an input or output (sink device) to any input. In order to copy an EDID to an input, the input must be set to Custom - User- defined mode and then unlocked.
  • Page 102 The Web Interface After the input or output is selected, click the button for the corresponding input where the EDID will be copied. One or more inputs can be selected at a time. Click the Copy button. The Copy can only be pressed when both an output or input (the source) and an input (destination) are selected.

  • Page 103: Getting Edid Information

    The Web Interface Getting EDID Information The EDID Info tab allows the EDID information, from an input or sink device, to be displayed. Click the Manage EDID tab within the built-in web interface. Click the EDID Info sub-tab. Select the desired input or output from the Choose EDID drop-down list. The EDID information for the selected input or output will be displayed.

  • Page 104: Uploading And Downloading Edid Data

    The Web Interface Uploading and Downloading EDID Data The Upload / Download tab allows EDID data from an input, output, or one of the internal EDID presets, to be downloaded and saved as a file on your computer. An EDID file can also be uploaded to any (unlocked) input.
  • Page 105 The Web Interface The following dialog will be displayed: Click the Save File button to save the EDID file to your computer. • Mac OS X The file will automatically be saved under Macintosh HD\Users\[username]\Downloads. • Windows OS The file will be saved under C:\Users\[username]\Downloads.
  • Page 106 The Web Interface ► Uploading an EDID Click the Manage EDID tab within the built-in web interface. Click the Upload/Download tab. Set the input, where the EDID file will be uploaded, to Custom mode. Setting the EDID Mode (page 87) for more information.

  • Page 107: Configuring Network Settings

    The Web Interface Configuring Network Settings Once the matrix is configured on the network using Gefen Syner-G, the network settings can be changed within the built-in web interface. To access the network settings, click the Network tab in the built-in web interface.
  • Page 108 The Web Interface ► TCP / Telnet Settings For details on configuring TCP, see Using Telnet, UDP, and RS-232 (page 112). • TCP Access: Click the Enable button to allow Telnet access to the matrix. Otherwise, click the Disable button. •...
  • Page 109 The Web Interface • User Name: This field is static and cannot be changed. Telnet sessions are restricted to Admin users. • Old Password: Enter the old (current) password in this field. The factory-default password is admin. • New Password: Enter the new password in this field. •...
  • Page 110 The Web Interface ► UDP Settings For details on configuring UDP, see Using Telnet, UDP, and RS-232 (page 112). • UDP Access: Click the Enable button to use the UDP protocol with the matrix. Otherwise, click the Disable button. • UDP Port: Enter the TCP listening port in this field.
  • Page 111 The Web Interface ► Web Login Settings • Username: To change the password for the Administrator, click the Administrator. Otherwise, click the Operator button. • New Password: Enter password for the selected username (above), in this field. Passwords are case-sensitive. •...
  • Page 112 Product Description: EXT-UHD600A-88 is the default product description. RS-232 In 1 In 2 In 3 In 4 In 5 In 6 In 7 In 8 24V DC This name will be used to identify the matrix when using the Gefen Syner-G software. page | 100...

  • Page 113: System Settings

    The Web Interface System Settings The System tab provides controls for various other matrix features. Each of these controls is described below. ► Main RS-232 Feedback • Click the Off button to disable RS-232 feedback. • Click the On button to enable RS-232 feedback. ►...
  • Page 114 The Web Interface ► Download Current Configuration to PC Saves the current matrix configuration to a file on your computer. Click the Download button. The following dialog box will be displayed: page | 102...
  • Page 115 The Web Interface Click the Save File button to save the configuration file to your computer. • Mac OS X The file will automatically be saved under Macintosh HD\Users\[username]\Downloads • Windows OS The file will be saved under C:\Users\[username]\Downloads ► Restore / Upload Configuration File Uploads the selected matrix configuration, from a file on your computer, to the matrix.
  • Page 116 ► Firmware Update Uploads and applies the latest firmware file to the matrix. Download the latest firmware from the Gefen web site. Click the Browse... button. Select the firmware file on your computer. The firmware must be a .bin file and will have the following naming convention: EXT-UHD600A-88([version])(PACK).bin.
  • Page 117 The Web Interface After a few moments, the following message box will be displayed within the web interface: After the update process completes, the matrix will automatically reboot. page | 105...
  • Page 118 The Web Interface ► Setting the IR Channel Sets the IR channel for the matrix. The matrix must be set to the same IR channel as the included IR remote control, in order for the IR remote control to communicate with the matrix. Click the desired IR channel for the matrix by clicking one of the IR Channel buttons (1 - 4).
  • Page 119 The Web Interface ► Performing a Factory Reset This feature restores the matrix to original factory-default settings. Important Performing this function will erase all current setting in your matrix. IP settings will be retained. To save the configuration, before continuing, refer to the section Download Current Configuration to PC.
  • Page 120 The Web Interface ► Rebooting the matrix Clicking this button will reboot the matrix. Click the Reboot button. The following message box will be displayed: ► Click the OK button to continue with the reboot procedure. ► Click the Cancel button to abort the reboot procedure and return to the web interface.
  • Page 121 This page left intentionally blank.
  • Page 122 This page left intentionally blank.

  • Page 123: Advanced Operation

    600 MHz 4K ULTRA 8x8 Matrix w/HDR and Audio De-Embedder Advanced Operation...

  • Page 124: Using Telnet, Udp, And Rs-232

    IP address of the matrix. After correct settings have been used in the terminal program, information similar to the following will be displayed: Welcome to EXT-UHD600A-88 Telnet telnet-> Type #help for a list of commands or refer to the tables on the following pages.

  • Page 125: Rs-232 Configuration

    Using Telnet, UDP, and RS-232 RS-232 Configuration Selected the desired COM port. Configure the RS-232 port to the following settings. Note that Only TxD, RxD, and GND pins are used. Description Setting 19200 Baud rate Data bits None Parity Stop bits None Hardware flow control Connect to the RS-232 port.

  • Page 126: Commands

    Commands Discovery Service Command Description #get_device_desc Returns the current device-description string #get_discovery Returns the current state of the discovery service #get_discovery_mode Returns the “discovery” mode #get_showme Returns the “show me” state #set_device_desc Sets the description of the matrix #set_discovery Enables or disables the discovery service #set_discovery_mode Sets the “discovery”...

  • Page 127: Network Settings

    Commands Network Settings Command Description #get_gateway Returns the gateway IP address of the matrix #get_ip_address Returns the IP address of the matrix #get_ip_mode Returns the IP mode of the matrix #get_ipconfig Returns the matrix IP configuration #get_mac_addr Returns the MAC address of the matrix #get_netmask Returns the subnet mask of the matrix #get_remote_udp_access...

  • Page 128: Output Status

    Commands Output Status Command Description #gets_output_hdcp Returns the HDCP state of the specified output #gets_output_hpd Returns the HPD state of the specified output #gets_output_mode Returns the video mode of the specified output #gets_output_rsense Returns the output Rsense Presets Command Description #get_preset_name Returns the name of the specified preset #set_preset_name...

  • Page 129: Setup

    Commands Setup Command Description #get_audio_output Returns the audio mode for the specified output(s) #get_input_hdcp Returns the HDCP handshake more on an input #get_io_name Returns the name of the specified input #get_output_hdcp Returns the HDCP setting of the specified output #send_hpd Sends an HPD signal to the specified input #set_audio_output Sets analog audio mode for the specified output(s)
  • Page 130 Telnet, then IP settings will be preserved. To reset all, including IP settings, this command must be issued using RS-232. Syntax #factory_reset Parameters None Example #factory_reset RESET TO FACTORY DEFAULTS EXT-UHD600A-88 V1.00 OUT:ABCDEFGH IN:12345678 Related Commands #reboot page | 118...
  • Page 131 Commands #get_audio_output Returns the analog audio mode for the specified output(s). The value returned is one of the following: Type Description Fixed Variable Syntax #get_audio_output out Parameters Parameters Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 132 Commands #get_custom_edid Downloads the customer EDID from the specified input. Syntax #get_custom_edid input Parameters Parameters input Type: INTEGER The number of the HDMI input (1 - 8). Example #get_custom_edid 1 00FFFFFFFFFFFF001CA6000000000000... Related Commands #get_edid_lock #get_edid_mode #get_external_edid #get_input_edid #get_internal_edid #get_output_edid #send_custom_edid #set_edid_copy #set_edid_lock #set_edid_mode...
  • Page 133 Commands #get_device_desc Returns the description of the matrix. Syntax #get_device_desc Parameters None Example #get_device_desc DEVICE DESCRIPTION IS EXT-UHD600A-88 Related Commands #set_device_desc page | 121...
  • Page 134 Commands #get_discovery Returns the discovery mode setting. The value returned is one of the following: Value Description “Discovery” mode is disabled “Discovery” mode is enabled Syntax #get_discovery Parameters None Example #get_discovery DISCOVERY 1 Related Commands #set_discovery #set_showme page | 122...
  • Page 135 Commands #get_discovery_mode Returns the current “discovery” mode. The value returned is one of the following: Value Description Read only Read / Write Syntax #get_discovery_mode Parameters None Example #get_discovery_mode #get_discovery_mode 1 Related Commands #get_discovery #set_discovery #set_discovery_mode page | 123...
  • Page 136 Commands #get_edid_lock Returns the current “EDID Lock” state of the specified input. The value returned is one of the following: Value Description EDID unlocked EDID locked Syntax #get_edid_lock input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Example #get_edid_lock 1 EDID_LOCK 1 0...
  • Page 137 Commands #get_edid_mode Returns the EDID mode of the specified input. The value returned is one of the following: Value Description UHD 4K 600 MHz 2Ch UHD 4K 600 MHz Multi UHD 4K 300 MHz 2Ch UHD 4K 600 MHz Multi 1080P 2Ch 1080 Multi External...
  • Page 138 Commands #get_external_edid Returns the modified external EDID. Syntax #get_external_edid Parameters None Example #get_external_edid 00FFFFFFFFFFFF001CA6000000000000... Related Commands #get_custom_edid #get_edid_lock #get_edid_mode #get_input_edid #get_internal_edid #get_output_edid #send_custom_edid #set_edid_copy #set_edid_lock #set_edid_mode page | 126...
  • Page 139 Commands #get_feedback Returns the feedback status. Syntax #get_feedback Parameters None Example #get_feedback FEEDBACK 1 Related Commands #factory_reset #get_firmware_version #get_ir_channel #get_lcd_brightness #help #reboot #set_feedback #set_ir_channel #set_lcd_brightness page | 127...
  • Page 140 Commands #get_firmware_version Returns the current firmware version of the matrix. Syntax #get_firmware_version Parameters None Example #get_firmware_version FIRMWARE VERSION IS 1.0 Related Commands #factory_reset #get_feedback #get_ir_channel #get_lcd_brightness #help #reboot #set_feedback #set_ir_channel #set_lcd_brightness page | 128...
  • Page 141 Commands #get_gateway Returns the gateway address of the matrix. Syntax #get_gateway Parameters None Example #get_gateway GATEWAY 10.5.64.1 Related Commands #get_web_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_web_port #set_ip_address #set_ip_mode #set_netmask page | 129...
  • Page 142 Commands #get_input_edid Returns the current EDID from the specified input. Syntax #get_input_edid input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Example #get_input_edid 00FFFFFFFFFFFF001CA6000000000000... Related Commands #get_custom_edid #get_external_edid #get_edid_lock #get_edid_mode #get_internal_edid #get_output_edid #send_custom_edid #set_edid_copy #set_edid_lock #set_edid_mode...
  • Page 143 Commands #get_input_hdcp Returns the HDCP handshake mode of the specified input. Syntax #get_input_hdcp Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Set this parameter to 0 to return the HDCP handshake mode of all inputs in numerical order. Example #get_input_hdcp 1 INPUT_HDCP 1 2...
  • Page 144 Commands #get_internal_edid Returns the specified preset internal EDID. Syntax #get_internal_edid edidps Parameters edidps Type: INTEGER The number of the EDID preset. EDID Description UHD 600 4K 2CH UHD 600 4K MULTICH UHD 300 4K 2CH UHD 300 4K MULTICH 1080P 2CH 1080P MULTICH Example #get_internal_edid 1...
  • Page 145 Commands #get_io_name Returns the name given to the specified input or output. Syntax #get_io_name inout Parameters input Type: INTEGER or CHARACTER The number of the HDMI input (1 - 8) to query. Example #get_io_name 1 IO_NAME 1 Bluray Related Commands #set_io_name page | 133...
  • Page 146 Commands #get_ip_address Returns the current IP address of the matrix. Syntax #get_ip_address Parameters None Example #get_ip_address IP_ADDRESS 10.5.64.81 Related Commands #get_gateway #get_web_port #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_web_port #set_ip_address #set_ip_mode #set_netmask page | 134...
  • Page 147 Commands #get_ip_mode Returns the current IP mode of the matrix. The value returned is one of the following: Value Description Static mode DHCP mode Syntax #get_ip_mode Parameters None Example #get_ip_mode IP_MODE 0 Related Commands #get_gateway #get_web_port #get_ip_address #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_web_port #set_ip_address...
  • Page 148 Commands #get_ipconfig Returns the current IP configuration of the matrix. In addition to providing the MAC address and the broadcast IP address, this command also provides the same information as executing the #get_ip_address, #get_netmask, #get_gateway, #get_mac_addr ommands. Syntax #get_ipconfig Parameters None Example #get_ipconfig...
  • Page 149 Commands #get_ir_channel Returns the IR channel of the matrix. Syntax #get_ir_channel Parameters None Example #get_ir_channel IR_CHANNEL 1 Related Commands #set_ir_channel page | 137...
  • Page 150 Commands #get_lcd_brightness Returns the brightness level of the LED indicators on the front panel. Syntax #get_lcd_brightness Parameters None Example #get_lcd_brightness LCD_BRIGHTNESS 60 Related Commands #set_lcd_brightness page | 138...
  • Page 151 Commands #get_mac_addr Returns the MAC address of the matrix. Syntax #get_mac_addr Parameters None Example #get_mac_addr MAC ADDRESS IS: 00:1C:91:04:90:03 Related Commands #get_gateway #get_web_port #get_ip_address #get_ip_mode #get_ipconfig #get_netmask #set_gateway #set_web_port #set_ip_address #set_ip_mode #set_netmask page | 139...
  • Page 152 Commands #get_mask Returns the mask state for the specified output(s). Syntax #get_mask output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H. Example #get_mask a MASK A 0...
  • Page 153 Commands #get_mute Returns the audio muting status for the specified output(s). Syntax #get_mute output Parameters output Type: INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H. Example #get_mute A #get_mute 0...
  • Page 154 Commands #get_netmask Returns the current subnet mask of the matrix. Syntax #get_netmask Parameters None Example #get_netmask NETMASK 255.255.255.0 Related Commands #get_gateway #get_web_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #set_gateway #set_web_port #set_ip_address #set_ip_mode #set_netmask page | 142...
  • Page 155 Commands #get_output_edid Returns the downstream EDID from the specified output. Syntax #get_output_edid output Parameters output Type: CHAR The alphabetic identifier of the output (A - H). Example #get_output_edid a 00FFFFFFFFFFFF001CA6000000000000... Related Commands page | 143...
  • Page 156 Commands #get_output_hdcp Returns the HDCP setting of the specified output. The value returned is one of the following: Value Description Follow input Always encode Syntax #get_output_hdcp output Parameters output Type: CHARACTER The identifier of the HDMI output (A - H) to query. Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 157 Commands #get_preset_name Returns the name of the specified preset. Syntax #get_preset_name preset Parameters preset Type: INTEGER The identifier of the preset name (1 - 16) to query. Example #get_preset_name 5 PRESET_NAME 5 Kitchen Related Commands #set_preset_name page | 145...
  • Page 158 Commands #get_remote_udp_access Returns the remote UDP access state. The value returned is one of the following: Value Description Remote UDP access disabled Remote UDP access enabled Syntax #get_remote_udp_access Parameters None Example #get_remote_udp_access REMOTE_UDP_ACCESS 0 Related Commands #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port...
  • Page 159 Commands #get_remote_udp_ip Returns the remote UDP IP address. Syntax #get_remote_udp_ip Parameters None Example #get_remote_udp_access REMOTE_UDP_IP 192.168.1.255 Related Commands #get_remote_udp_access #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 147...
  • Page 160 Commands #get_remote_udp_port Returns the remote UDP listening port. Syntax #get_remote_udp_port Parameters None Example #get_remote_udp_port REMOTE_UDP_PORT 50008 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 148...
  • Page 161 Commands #get_showme Returns the “showme” state. Value Description Show me disabled Shoe me enabled Syntax #get_showme Parameters None Example #get_showme SHOW_ME 0 Related Commands page | 149...
  • Page 162 Commands #get_telnet_access Returns the Telnet access state. Use the #set_telnet_access command to enable or disable Telnet access. Syntax #get_telnet_access Parameters None Example #get_telnet_access TELNET_ACCESS 1 Related Commands #get_telnet_port #get_telnet_message #set_telnet_access #set_telnet_port #set_telnet_message page | 150...
  • Page 163 Commands #get_telnet_login Returns the status of the Telnet login process. Syntax #get_telnet_login Parameters None Example #get_telnet_login TELNET_LOGIN 0 Related Commands page | 151...
  • Page 164 Commands #get_telnet_message Returns the Telnet welcome message. Use the #set_telnet_message to create a custom welcome message. Syntax #get_telnet_message Parameters None Example #get_telnet_message TELNET WELCOME SCREEN IS ENABLED Related Commands #get_telnet_access #get_telnet_port #set_telnet_access #set_telnet_port #set_telnet_message page | 152...
  • Page 165 Commands #get_telnet_port Returns the Telnet listening port. Syntax #get_telnet_port Parameters None Example #get_telnet_port TELNET_PORT 23 Related Commands #get_telnet_access #get_telnet_message #set_telnet_access #set_telnet_port #set_telnet_message page | 153...
  • Page 166 Commands #get_udp_access Returns the UDP access state. Use the #set_udp_access command to enable or disable UDP access. The value returned is one of the following: Value Description UDP access disabled UDP access enabled Syntax #get_udp_access Parameters None Example #get_udp_access UDP_ACCESS 0 Related Commands #get_remote_udp_access #get_remote_udp_ip...
  • Page 167 Commands #get_udp_port Returns the local UDP listening port. Syntax #get_udp_port Parameters None Example #get_udp_port UDP_PORT 50007 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 155...
  • Page 168 Commands #get_vol Returns the analog output volume level for the specified output(s). Syntax #get_vol output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H. Example #get_vol a VOL A 100...
  • Page 169 Commands #get_web_port Returns the HTTP listening port of the matrix. Syntax #get_web_port Parameters None Example #get_web_port HTTP_PORT 80 Related Commands #get_gateway #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_web_port #set_ip_address #set_ip_mode #set_netmask page | 157...
  • Page 170 Commands #gets_input_hdcp Returns the HDCP mode of the specified input. The value returned is one of the following: Value Description Reject HDCP 2.2 and below HDCP 1.4 and below Syntax #gets_input_hdcp input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Specify 0 to query all inputs; results are returned in input order 1 - 8.
  • Page 171 Commands #gets_input_hpd Returns the HPD state of the specified input. The value returned is one of the following: Value Description HPD low HPD high Syntax #gets_input_hpd input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Specify 0 to query all inputs; results are returned in numerical order.
  • Page 172 Commands #gets_input_mode Returns the video mode of the specified input. Syntax #gets_input_mode input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Specify 0 to query all inputs; results are returned in input order 1 - 8. Example #gets_input_mode 1 INPUT_MODE 1 C...
  • Page 173 Commands #gets_input_signal Returns the active signal status of the specified input. Syntax #gets_input_signal input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Specify 0 to query all inputs; results are returned in input order 1 - 8. Example #gets_input_signal 1 INPUT_SIGNAL 1 Y...
  • Page 174 Commands #gets_output_hdcp Returns the HDCP status of the specified output. The value returned will be one of the following: Value Description Encrypted (HDCP 1.4) Encrypted (HDCP 2.2) Unencrypted Fail Syntax #gets_output_hdcp output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 175 Commands #gets_output_hpd Returns the HPD status of the specified output. The value returned will be one of the following: Value Description HPD low HPD high Syntax #gets_output_hpd output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 176 Commands #gets_output_mode Returns the video output mode of the specified output. The value returned will be one of the following: Value Description DVI signal detected HDMI signal detected Syntax #gets_output_mode output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 177 Commands #gets_output_rsense Returns the Rsense state of the specified output(s). The value returned will be one of the following: Value Description Rsense low Rsense high Syntax #gets_output_rsense output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Specify 0 to query all outputs; results are returned in output order A - H.
  • Page 178 Commands #help Returns a list of available commands. The commands listed are specific to either the Sender or Receiver unit. Syntax #help Parameters None Example #help [HELP] #HELP [VOLUME] #GET_MUTE #GET_VOL #SET_MUTE #SET_VOL [ROUTING] #GET_MASK #LOCK_MATRIX #SET_MASK page | 166...
  • Page 179 Commands #lock_matrix Locks or unlocks the matrix. This command locks the front panel and the built-in web interface of the matrix. Note that if the matrix is locked, settings can still be changed using the command set. Syntax #lock_matrix state Parameters state Type: INTEGER...
  • Page 180 Commands #reboot Reboots the matrix. Syntax #reboot Parameters None Example #reboot UNIT WILL REBOOT SHORTLY Related Commands #factory_reset page | 168...
  • Page 181 Commands #send_custom_edid Uploads a custom EDID to the specified input. The input must first be set to CUSTOM MODE. Syntax #send_custom_edid input Parameters input Type: INTEGER The numeric identifier of the input (1 - 8). Example #send_custom_edid 1 SEND_COMPLETE page | 169...
  • Page 182 Commands #send_hpd Sends an HPD (Hot-Plug Detect) pulse to the specified input. Syntax #send_hpd input Parameters input Type: INTEGER The identifier of the HDMI input (1 - 8) where the HPD pulse will be sent. Set this parameter to 0 to send the HPD pulse to all inputs. Example #send_hpd 1 HPD SENT...
  • Page 183 Commands #set_audio_output Sets the analog audio mode for the specifed output(s). Syntax #set_audio_output output audtype Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Set this parameter to 0 to set all outputs to the same audio mode. Feedback lists all analog audio modes for outputs in order A - H.
  • Page 184 Commands #set_device_desc Sets the matrix identifier string. Syntax #set_device_desc name Parameters name Type: STRING The device description. This value cannot exceed 30 characters in length. Example #set_device_desc matrix8x8 DEVICE DESCRIPTION IS SET TO matrix8x8 Related Commands #get_device_desc page | 172...
  • Page 185 Commands #set_discovery Enables or disables the “discovery” feature. This feature is enabled by default. Syntax #set_discovery state Parameters state Type: INTEGER Accepts a number from the table below, specifying the desired state: state Description Disables “Discovery” mode Enables “Discovery” mode If set to disabled, then the Syner-G Software Suite will be unable to detect the matrix on a network.
  • Page 186 Read / write mode When set to read-only mode, the IP settings for the matrix will be displayed within the Gefen Syner-G Software Suite but cannot be changed. In order to both display and allow changes to the IP settings within Gefen Syner-G, set this feature to read/write mode.
  • Page 187 Commands #set_edid_copy Copies the EDID from output or input to the selected input for use in custom EDID mode. In order for an EDID to be copied, the destination input port must be set to Custom mode and must not be locked. See Copying EDID Data (page 89) for more information.
  • Page 188 Commands #set_edid_lock Locks to unlocks the EDID when using Custom EDID mode. This command only works if the specified input is set to Custom. See the #set_edid_mode command. Syntax #set_edid_lock input state Parameters input Type: INTEGER This parameter must be the identifier of an HDMI input (1 - 8). state Type: INTEGER Accepts a number from the table below, specifying the desired state:...
  • Page 189 Commands #set_edid_mode Sets the EDID mode for the specified input. Syntax #set_edid_mode input mode Parameters input Type: INTEGER This parameter must be the identifier of an HDMI input (1 - 8). mode Type: INTEGER Accepts a number from the table below, corresponding to the desired EDID. mode Description UHD 4K 600 MHz 2Ch...
  • Page 190 Commands #set_feedback Enables or disables unsolicited RS-232 feedback. Syntax #set_feedback state Parameters state Type: INTEGER Accepts a number from the table below, specifying the desired state: state Description Disable RS-232 feedback Enable RS-232 feedback Example #set_feedback 1 SET_FEEDBACK 1 page | 178...
  • Page 191 Commands #set_gateway Sets the gateway address for the matrix. The gateway address will be changed only if the matrix is in static IP mode. If the matrix is using DHCP mode, then the gateway address is automatically assigned by the DHCP server. The matrix must be rebooted after executing this command.
  • Page 192 Commands #set_input_hdcp Sets the HDCP mode on the specified input. Syntax #set_input_hdcp input mode Parameters input Type: INTEGER Accepts the number of an HDMI input (1 - 8). Set this parameter to 0 to apply the HDCP setting to all inputs. Feedback lists all HDCP settings for inputs in order 1 - 8.
  • Page 193 Commands #set_io_name Sets the name of the specified input. Syntax #set_io_name inout name Parameters inout Type: INTEGER or CHARACTER This parameter can accept either the number of an HDMI input (1 - 8) or the identifier or an HDMI output (A - H). Only one input or output can be specified at one time.
  • Page 194 Commands #set_ip_address Sets the IP address of the matrix. The matrix must be rebooted after executing this command. Syntax #set_ip_address addr Parameters addr Type: IP ADDRESS The desired IP address of the matrix. This address must be entered in dot-decimal notation. Example #set_ip_address 10.5.64.81 IP_ADDRESS 10.5.64.81...
  • Page 195 Commands #set_ip_mode Sets the IP mode of the matrix. The matrix must be rebooted after executing this command. Syntax #set_ip_mode mode Parameters mode Type: INTEGER Accepts a number from the table below, corresponding to the desired IP mode. mode Description Static DHCP Auto...
  • Page 196 Commands #set_ir_channel Sets the IR channel of the matrix. In order to use the included IR remote control with the matrix, both the matrix and the IR remote control must be set to the same IR channel. Syntax #set_ir_channel irch Parameters irch Type: INTEGER...
  • Page 197 Commands #set_lcd_brightness Sets the brightness level of the LCD display on the front panel of the matrix. Syntax #set_lcd_brightness level Parameters level Type: INTEGER Accepts a number within the range of 0 - 100. The value of 100 represents the brightest setting of the display. Example #set_lcd_brightness 75 LCD_BRIGHTNESS 75...
  • Page 198 Commands #set_mask Sets the masking for the specified output(s). Syntax #set_mask output state Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Set this parameter to 0 to set all outputs to the same masking state. Feedback lists all output masking states in order A - H.
  • Page 199 Commands #set_mute Sets the audio muting state for the specified output(s). Syntax #set_mute output Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Set this parameter to 0 to set all outputs to the same muting state. Feedback lists all output muting states in order A - H.
  • Page 200 Commands #set_netmask Sets the network mask address. The matrix must be rebooted after executing this command. Syntax #set_netmask addr Parameters addr Type: ADDRESS The desired subnet mask of the matrix. This address must be entered in dot-decimal notation. Example #set_netmask 255.255.255.0 NETMASK 255.255.255.0 REBOOT TO APPLY SETTINGS Related Commands...
  • Page 201 Commands #set_output_hdcp Sets the HDCP mode on the specified output. Syntax #set_output_hdcp output mode Parameters output Type: CHARACTER Accepts the identifier of an HDMI output (A - H). Set this parameter to 0 to set all outputs to the same HDCP mode. Feedback lists all HDCP mode for outputs in order A - H.
  • Page 202 Commands #set_preset_name Assigns a name to the specified preset. Syntax #set_present_name preset name Parameters preset Type: INTEGER Accepts the identifier of a Preset (1 - 16). name Type: STRING The name of the preset. The name must not exceed 12 characters in length. No special characters (e.g.
  • Page 203 Commands #set_remote_udp_access Enables or disables remote UDP access. Syntax #set_remote_udp_access state Parameters state Type: INTEGER Accepts a number from the table below, corresponding to the desired state. state Description Disable remote UDP access Enable remote UDP access Example #set_remote_udp_access 0 REMOTE_UDP_ACCESS 0 Related Commands #get_remote_udp_access...
  • Page 204 Commands #set_remote_udp_ip Sets the remote UDP IP address of the matrix. Syntax #set_remote_udp_ip addr Parameters addr Type: IP ADDRESS The desired remote UDP IP address of the matrix. The address must be entered in dot-decimal notation. Example #set_remote_udp_ip 192.168.1.251 REMOTE_UDP_IP 192.168.1.251 Related Commands #get_remote_udp_access #get_remote_udp_ip...
  • Page 205 Commands #set_remote_udp_port Sets the remote UDP listening port for the matrix. Syntax #set_remote_udp_port port Parameters port Type: INTEGER The desired remote UDP port (0 - 65535) of the matrix. Example #set_remote_udp_port 50008 REMOTE_UDP_PORT 50008 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip...
  • Page 206 Commands #set_showme Enables or disables the “Show Me” feature. If the “Show Me” feature is enabled, then all the buttons (with the exception of the Power button), will flash slowly. This feature allows the matrix to be visually identified on the network and is useful when multiple matrix units are being used.
  • Page 207 Commands #set_telnet_access Enables or disables Telnet access on the matrix. Syntax #set_telnet_access state Parameters state Type: INTEGER Accepts a number from the table below, corresponding to the desired state. state Description Disable Telnet access Enable Telnet access Example #set_telnet_access 1 TELNET_ACCESS 1 Related Commands #get_telnet_access...
  • Page 208 Commands #set_telnet_login Enable or disable the Telnet login process. When disabled, login credentials are not required. Syntax #set_telnet_login state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable login process Enable login process Example #set_telnet_login Related Commands...
  • Page 209 Commands #set_telnet_message Enables or disables the Telnet welcome message. Syntax #set_telnet_message state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable welcome message Enable welcome message Example #set_telnet_message Related Commands #get_telnet_access #get_telnet_port #get_telnet_message #set_telnet_access...
  • Page 210 Commands #set_telnet_port Sets the Telnet listening port on the matrix. Syntax #set_telnet_port port Parameters port Type: INTEGER The desired remote Telnet listening port (0 - 65535) of the matrix. Example #set_telnet_port 23 TELNET_PORT 23 Related Commands #get_telnet_access #get_telnet_port #get_telnet_message #set_telnet_access #set_telnet_message page | 198...
  • Page 211 Commands #set_udp_access Enables or disables UDP access. Syntax #set_udp_access state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable UDP access Enable UDP access Example #set_udp_access 0 UDP_ACCESS 0 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port...
  • Page 212 Commands #set_udp_port Sets the local UDP listening port. Syntax #set_udp_port port Parameters port Type: INTEGER The desired UDP listening port (0 - 65535) of the matrix. Example #set_udp_port 50007 UDP_PORT 50007 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access page | 200...
  • Page 213 Commands #set_vol Sets the analog output volume level for the specified output(s). Syntax #set_vol output level Parameters output Type: CHAR / INTEGER The alphabetic identifier of the output (A - H). Set this parameter to 0 to set all outputs to the same volume level. Feedback lists all volume levels for outputs in order A - H.
  • Page 214 Commands #set_web_port Sets the HTTP listening port for the matrix. Syntax #set_gateway port Parameters port Type: INTEGER The desired HTTP listening port for the matrix. Example #set_gateway 192.168.1.1 GATEWAY 192.168.1.1 Related Commands #get_gateway #get_web_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_ip_address #set_ip_mode #set_netmask...
  • Page 215 Commands Recalls the specified routing preset. Syntax p preset Parameters preset Type: INTEGER The number of a preset (1 - 16). Example p 10 P 10 Related Commands page | 203...
  • Page 216 Commands Routes the specified input to the one or more specified outputs. Syntax r input output [...output] Parameters input Type: INTEGER / CHAR The number of an HDMI input (1 - 8). This parameter also accepts a character argument of “X”. The “X” argument is not case-sensitive. If “X” is specified, then no input is selected.
  • Page 217 Commands Returns the routing state for all inputs / outputs. “X” will be displayed when the output is selected to input off. Syntax Parameters None Example S A 1 B 2 C 3 D X E 0 F X G 1 H 0 Related Commands page | 205...
  • Page 218 This page left intentionally blank.

  • Page 219: Appendix

    600 MHz 4K ULTRA 8x8 Matrix w/HDR and Audio De-Embedder Appendix page | 207...

  • Page 220: Network Cable Diagram

    Network Cable Diagram Front of RJ-45 Connector 1 2 3 4 5 6 7 8 Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products. Color Description Orange / White TD+ (Transmit Data, positive differential signal)

  • Page 221: Default Settings

    Remote UDP Access Disabled Default Administrator Password Admin Default Operator Password Operator Gefen Syner-G Discovery Enabled Gefen Syner-G Discovery Mode Read / Write Gefen Syner-G Show Device Hide Me Description Setting Output Names Output A - Output H A/V Input Names...

  • Page 222: Internal Edid Profiles

    Internal EDID Profiles 720p 2-channel audio Video data block 1280x720p @ 60Hz (16:9) 1280x720p @ 50Hz (16:9) 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (4:3) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p @ 50Hz (4:3) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 720x576p...
  • Page 223 Internal EDID Profiles 1080p 2-channel audio Video data block 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (16:9) 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p...
  • Page 224 Internal EDID Profiles 1080p Multichannel audio Video data block 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (16:9) 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p...
  • Page 225 Internal EDID Profiles 4K 2-channel audio Video data block 720x480p @ 60Hz 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (16:9) 1920x1080p @ 60Hz (16:9) 720x576p @ 50Hz (16:9) 1280x720p @ 50Hz (16:9) 1920x1080i @ 50Hz (16:9) 1440x576i @ 50Hz (16:9) 1920x1080p @ 50Hz (16:9)
  • Page 226 Internal EDID Profiles 4K multichannel audio Video data block 720x480p @ 60Hz 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (16:9) 1920x1080p @ 60Hz (16:9) 720x576p @ 50Hz (16:9) 1280x720p @ 50Hz (16:9) 1920x1080i @ 50Hz (16:9) 1440x576i @ 50Hz (16:9) 1920x1080p @ 50Hz (16:9)

  • Page 227: Specifications

    Specifications Supported Formats Resolutions (max.) • 4096 x 2160 at 60 Hz (4:4:4) • 3860 x 2160 at 60 Hz (4:4:4) • 1080p Full HD • 1920 x 1200 (WUXGA) at 60 Hz Connectors, Controls, and Indicators HDMI Input Connectors •...
  • Page 228 Specifications Physical Rack-mount requirements • Standard 19” rack, 2U high Dimensions (excluding rack ears and • 17.25” x 3.5” x 15.75” connectors, W x H x D) (440mm x 89mm x 400mm) Net Unit Weight • 21 lbs (9.5 kg) Shipping Weight •...

  • Page 229: Index

    Index #set_feedback #set_gateway Accessing the Menu System #set_http_port Application diagram #set_input_hdcp Audio #set_io_name muting / unmuting #set_ip_address volume, adjusting #set_ip_mode #set_ir_channel #set_lcd_brightness #set_netmask #set_output_hdcp Commands #set_preset_name #factory_reset 118, #set_remote_udp_access #get_device_desc 120, #set_remote_udp_ip #get_discovery #set_remote_udp_port #get_discovery_mode #set_showme #get_edid_lock #set_telnet_access #get_edid_mode #set_telnet_port #get_gateway 126, #set_telnet_welcome...
  • Page 230 Index gateway HTTP port Masking IP address outputs IP mode Matrix subnet mask application diagram IR channel configuration LCD brightness connections locking the matrix Menu System using the IR remote control accessing routing Muting using the IR remote control audio outputs routing presets using the front panel using the IR remote control...
  • Page 231 Index logging in tabs and sub-tabs Safety Instructions LCD brightness Selecting Routing Presets locking the matrix using the front panel masking outputs Specifications rebooting the matrix Syner-G Restoring configuration configuring the matrix routing RS-232 feedback setting the EDID mode custom EDID setting the IR channel Table of Contents updating firmware...
  • Page 232 *Preferred 1800 S McDowell Blvd. Petaluma CA 94954 (707) 283-5900 (800) 472-5555...

Table of Contents
