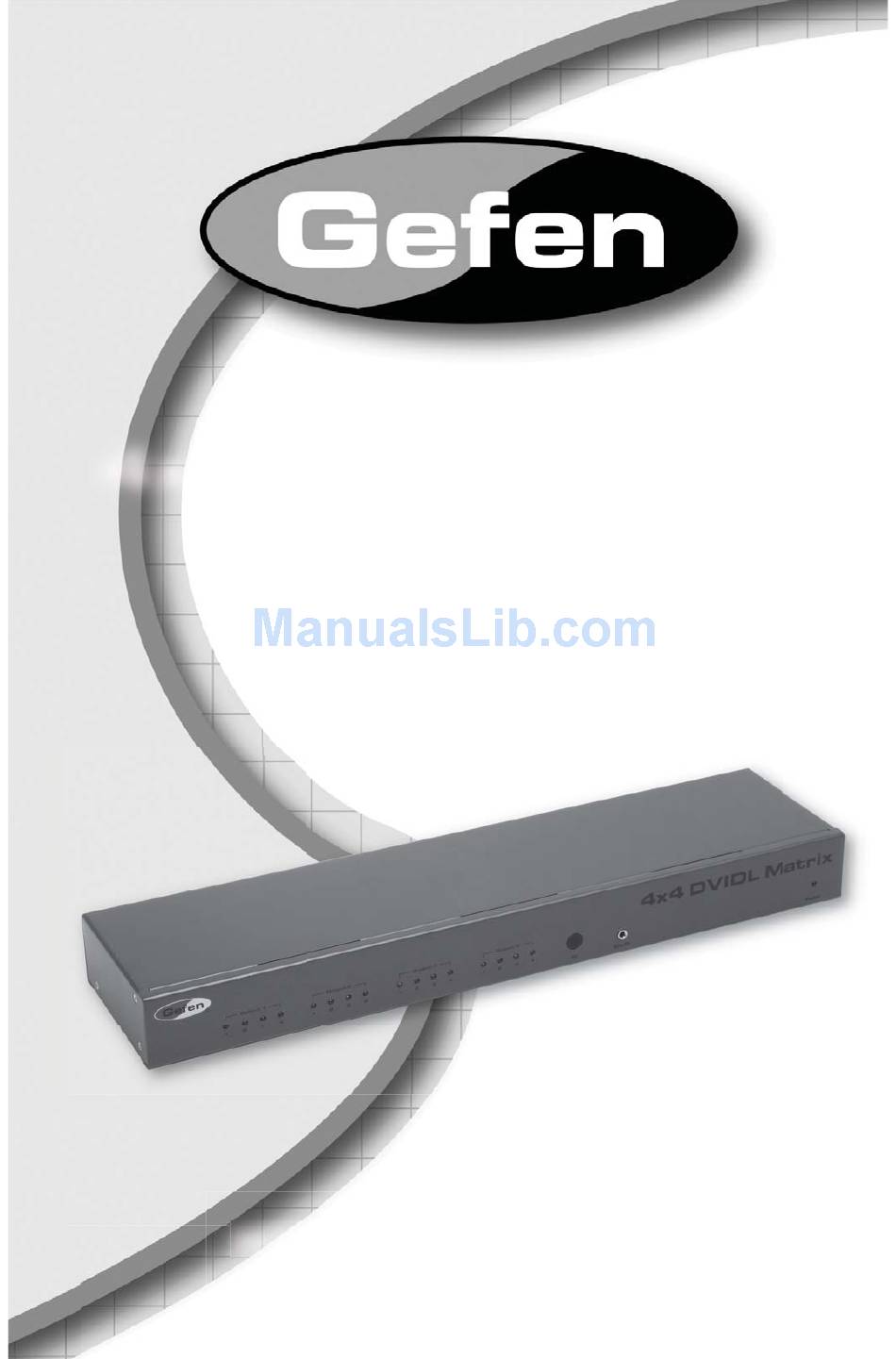

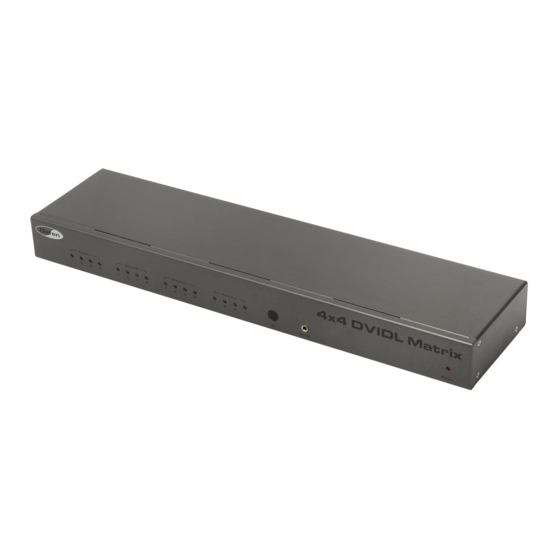

- Page 1 ® 4x4 DVI Dual Link Matrix EXT-DVI-444DL User Manual www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 4x4 DVI DL Matrix is a trademark of Gefen, LLC ©...
-
Page 3: Table Of Contents
Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 4x4 DVI DL Matrix Confi guring The 4x4 DVI DL Matrix RS-232 Serial Control Interface 10 Rack Mount Installation 11 Specifi cations 12 Warranty CONTENTS... -
Page 4: Introduction
Dual Link DVI display consoles, with each console capable of accessing any one of the Dual Link DVI video sources at any time by remote control. You also have the option of setting up the four displays locally or extending them with a Gefen extender. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 4X4 DVI DL MATRIX • The 4x4 DVI DL Matrix does not have any scaling functionality. All of the attached monitors must be able to display the attached sources’ resolution. For maximum compatibility it is recommended that only one compatible/ common resolution for all displays be used by all sources. -
Page 6: Features
Features • Increases your productivity by letting you view any four Dual Link DVI video sources on any four Dual Link DVI displays • Maintains highest resolution digital video with no loss of quality • Discrete IR Remote (included) • Supports video resolutions up to 3840x2400 •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
Display 1 Selected Source LED The array of 4 LED’s correspond to the 4 source inputs on the back panel of the 4x4 DVI DL Matrix. The currently selected source being displayed on DVI Output 1 will be indicated by an active LED. -
Page 9: Connecting And Operating The 4X4 Dvi Dl Matrix
CONNECTING AND OPERATING THE 4X4 DVI DL MATRIX How to Connect the 4x4 DVI DL Matrix Connect up to 4 DVI DL sources to the 4x4 DVI DL Matrix input ports using the supplied DVI DL cables. Connect up to 4 displays to the 4x4 DVI DL Matrix output ports using user supplied DVI DL cables. -
Page 10: Confi Guring The 4X4 Dvi Dl Matrix
CONFIGURING THE 4X4 DVI DL MATRIX The 4x4 DVI DL Matrix has a bank of 8 confi guration DIP SWITCHES. These switches are located underneath the unit. Peeling back the black metallic sticker on the bottom of the 4x4 DVI DL Matrix will reveal the Dip Switch bank. These service switches are used for a number of confi... - Page 11 CONFIGURING THE 4X4 DVI DL MATRIX AUTOMATIC LINK SELECTION / DUAL LINK ONLY MODE The 4x4 DVI DL Matrix has the ability to run both Single Link and Dual Link DVI sources. There is a feature that will either automatically select the link mode, or lock the unit in Dual Link mode.
-
Page 12: Rs-232 Serial Control Interface
RS-232 SERIAL CONTROL INTERFACE 5 4 3 2 1 9 8 7 6 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface Binary Table ASCII Corresponding RMT16-IR Button RS232 Settings Bits per second ... 19200 Data bits ... -
Page 13: Rack Mount Installation
RACK MOUNT INSTALLATION Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit. -
Page 14: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 2 x 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Dual Link Maximum Video Range ... 3840x2400 DVI Connector ... DVI-I 29 pin female (digital only) Power Supply ... -
Page 15: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 17 Rev X3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
