6. Maintenance

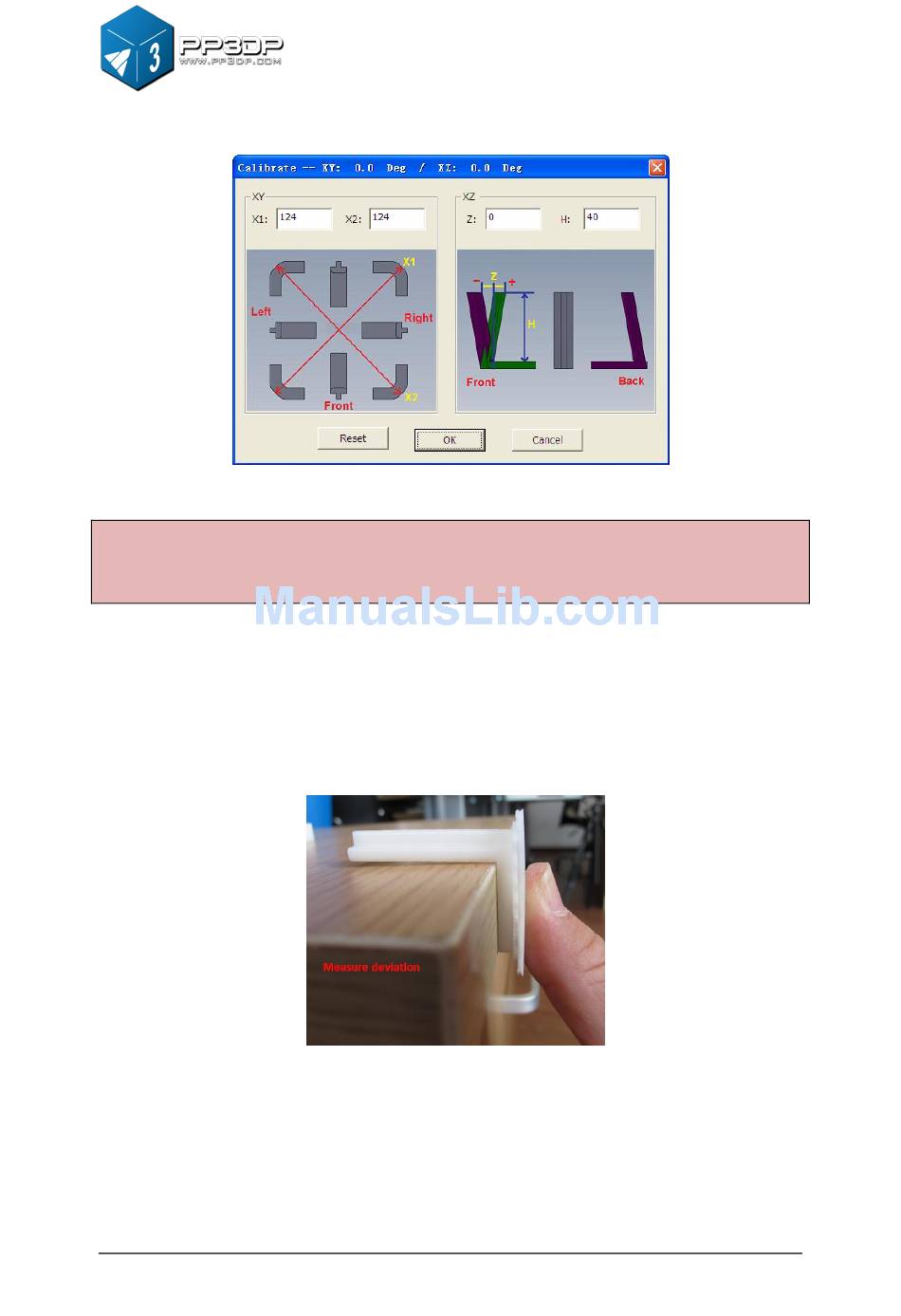

Figure 6-3 Snapshot of Calibration Dialog
IMPORTANT NOTE: Before you enter any new calibration values, always click the
"Reset" button, otherwise the new values get added to the old ones. Before you enter any
new values, the bar at the very top of the screen should read: XY: 0.00 deg / XZ: 0.00 deg.
Next, from the printed calibration part, get the center 'L' shaped component on
the front, and measure its Z deviation as shown in Figure 6-3. Put the exact
value into the Z box. If it deviates to the right, the value put into the Z box
should be a positive value. If it deviates to the left, the value put into the Z box
should be a negative value.
Figure 6-4 Measure Deviation
Finally, measure the height of the "L" shape component, which should be
40 mm if the model is not scaled. Enter the exact measured value into the "H"
box in the "Calibrate" Dialogue.
Click "OK" to save all these values and exit the calibration Dialog.
