Material Extrusion (top view)
(1) Connect power adapter to power interface.
(2) Put a spool of material on the roller shaft, find the end of the material, insert
it into filament tube, pass the material through the tube, and pass the tube
through the top of the machine cover.
(3) Start UP! Software installed on a computer (If you have not already
installed the software, please refer to the software installation procedure in
section 3.1.2), connect the computer with printer through USB cable,
initialize the printer from the software, and, in the software menu, click "3D
Print -> Maintenance" to bring up the "Maintenance" dialogue, where you
will find "Extrude" button. Click the "Extrude" button, which triggers
extrusion process to start.
(4) Print nozzle starts warming up. When the temperature of the nozzle
reaches 260° C, printer will give off a beep. You can push the filament into
the hole at the top of the extrusion head. Hold the filament there with
pressure until the extrusion motor inside the print head grabs the filament
UP! mini 3D Printer User Manual

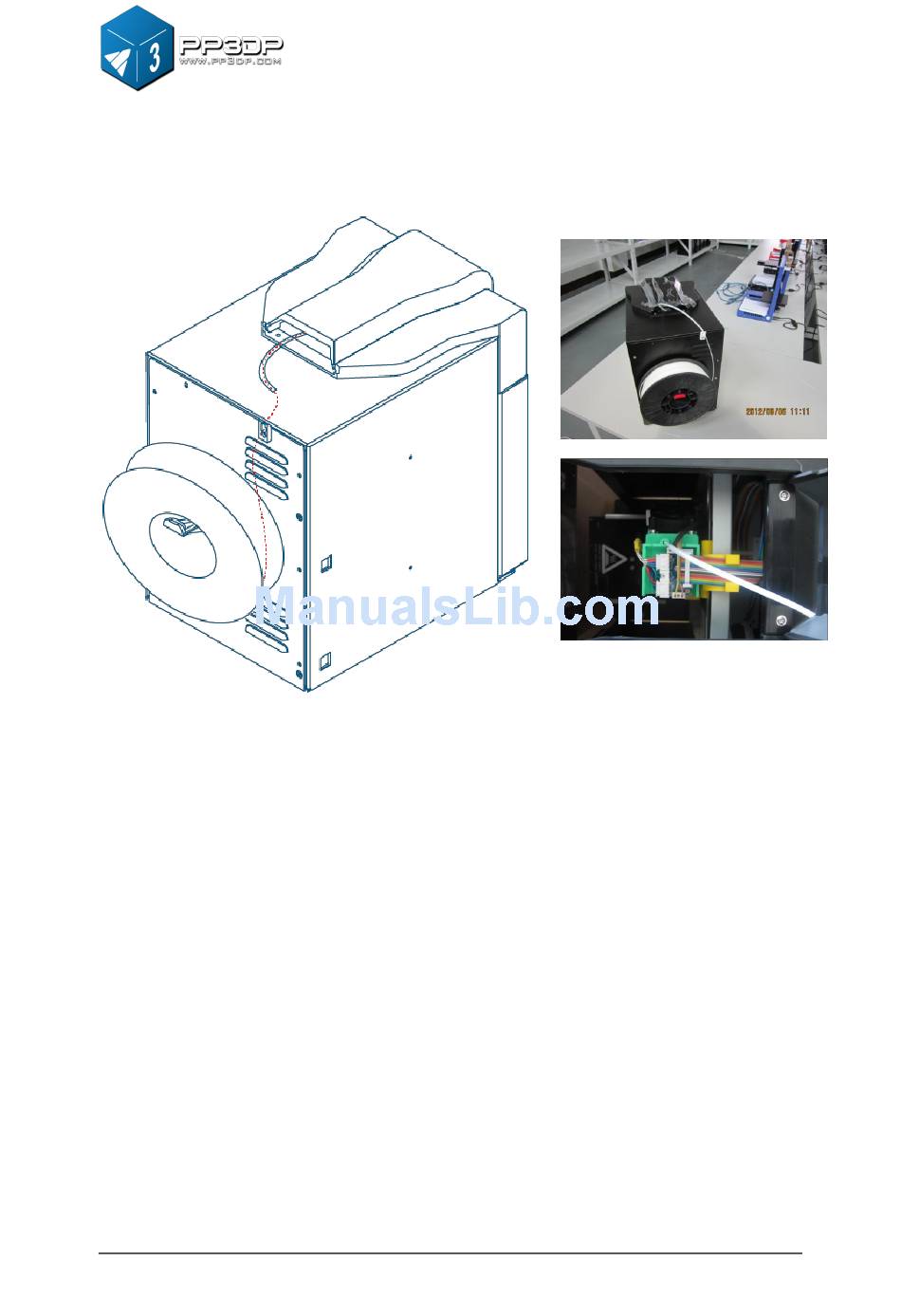

Figure 3-4 Material Wiring
3. Operation
12
