Model Transformations - PP3DP UP! mini User Manual

3. Operation
(Windows version)
(Mac version)

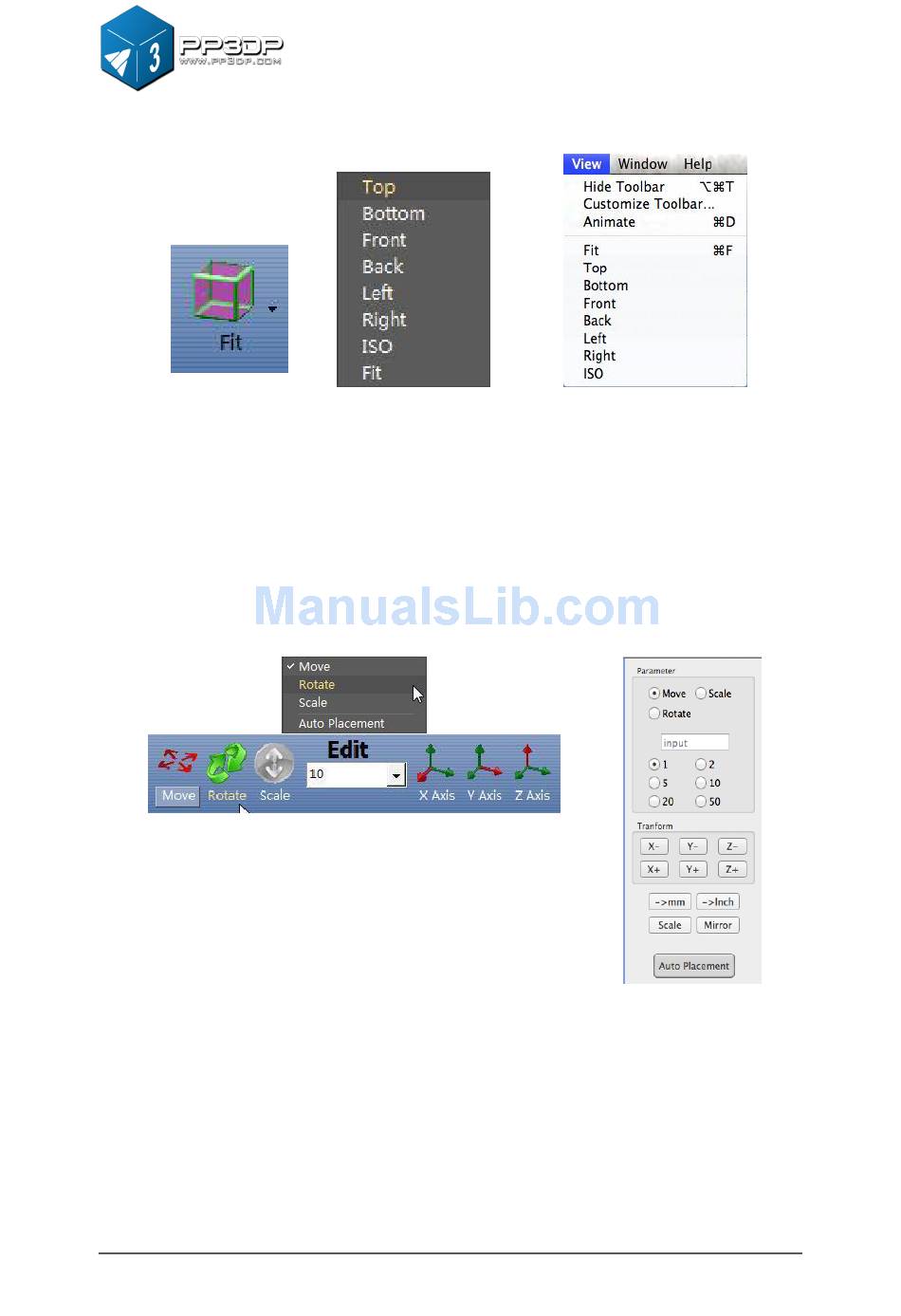

Figure 3-15 Preset View Options

3.2.4 Model Transformations

Model Transformation can be achieved through Edit menu or push buttons on
the toolbar:
(Windows version)
Figure 3-16 Model Transformation options
(Mac version)
Moving a model: Click the "Move" button and, in the text box, choose, or input,
the distance you want to move the model, then choose the axis (direction)
along which you want to move the model by clicking the axis button. Each time
you click the axis button, the model will move once in the direction you choose
and the distance you enter.
For example: Move the model -5mm along Z axis (or down 5mm).
UP! mini 3D Printer User Manual 20
