PP3DP UP! mini User Manual page 28

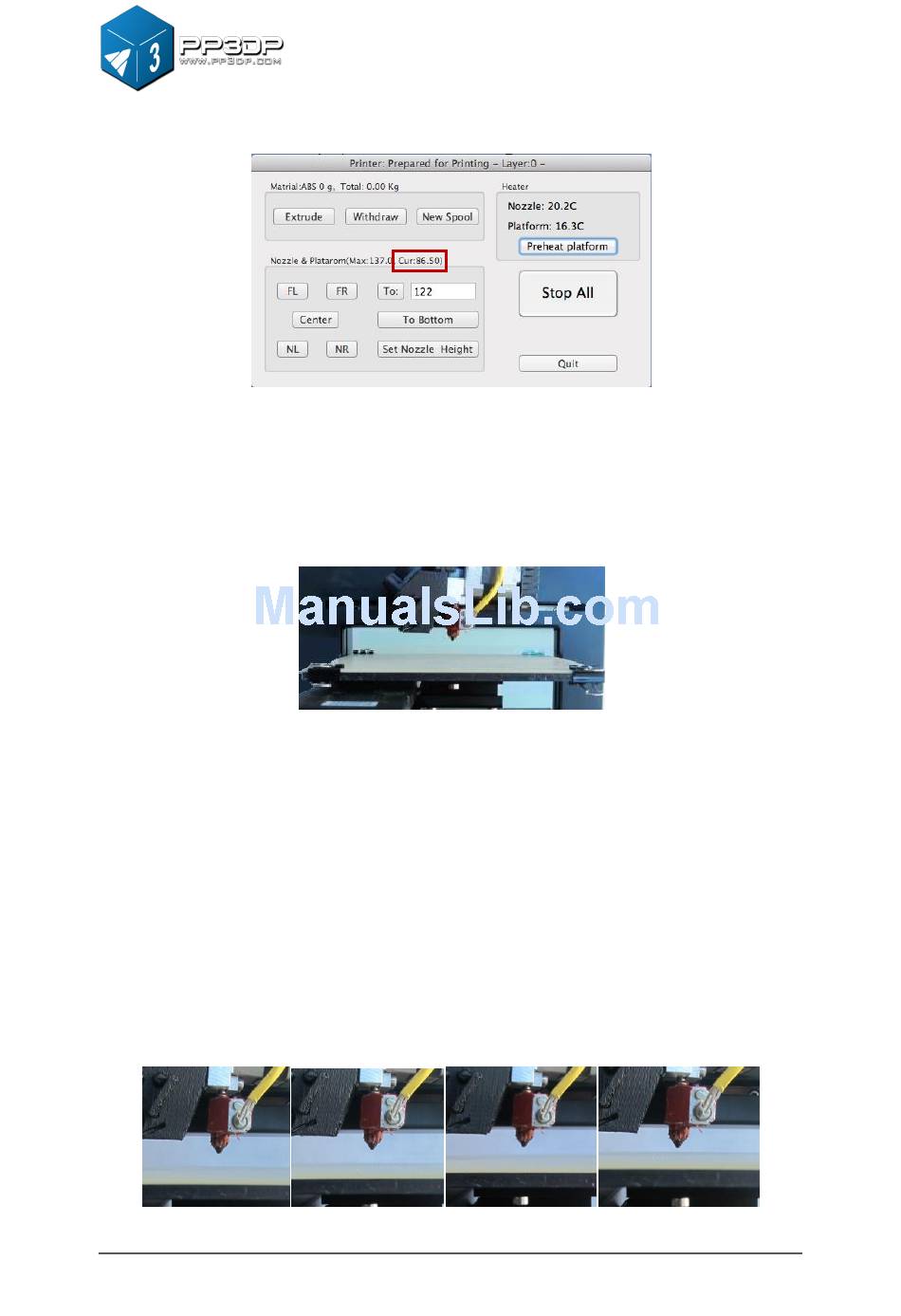

2 - In the text box, type in the height to which you want the platform to move,
and click the "To" button. In the above example, the platform moves to
122mm above the platform's original position
Figure 3-22 Gap between platform and nozzle
3 - Check the distance between the nozzle and the platform. If, for example,
the platform appears to be far away (say, 7mm) from the nozzle, increase
the number in the text box to 130 and click the "To" button.
After the platform finished upward movement, we can enter a bigger number
in the text box, for example, 133, or a smaller number between 130 and 133,
not a number too big, because we need to be cautious as the platform is
approaching the nozzle, and we want to avoid the nozzle crash into the
platform.
Repeat this step, and lift the platform closer to nozzle.
Figure 3-23 The platform is getting closer to the nozzle
UP! mini 3D Printer User Manual
(Mac version)
Figure 3-21 "Maintain" Dialog
3. Operation
27
