3. Operation
3.3.6 Print Setup Options

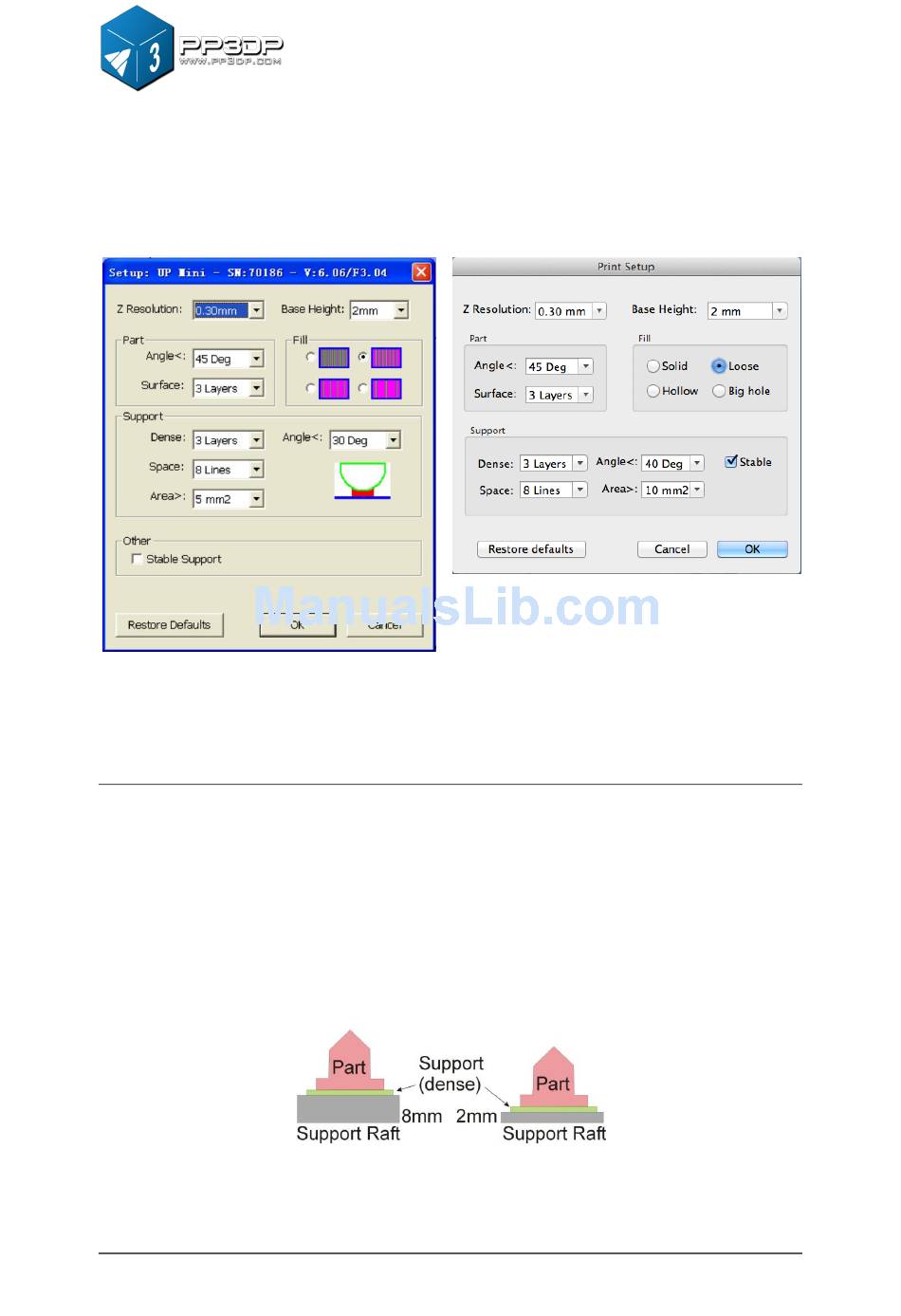

Click menu "3D Print->Setup". The following dialog box pops up:
(Mac version)
(Windows version)
Figure 3-26 Setup Dialog
Print Options
Z Resolution: Set the print resolution (layer thickness) of the printer. This can
be a choice between 0.2mm to 0.35mm per layer.
Base Height: This is the value of raft thickness before the support layer is
printed under the part. When the printer starts printing, it first prints a raft of
non-solid material in which all the lines of support material are horizontal
(along the Y axis). It builds up horizontal rows of support material for the height
of the value you enter in the text box. Then, just before it gets to the bottom
surface of the real part, it starts to build support layers on top of the raft layers
Figure 3-26 Raft layer setting
The default value for this parameter is 2mm.
UP! mini 3D Printer User Manual
32
