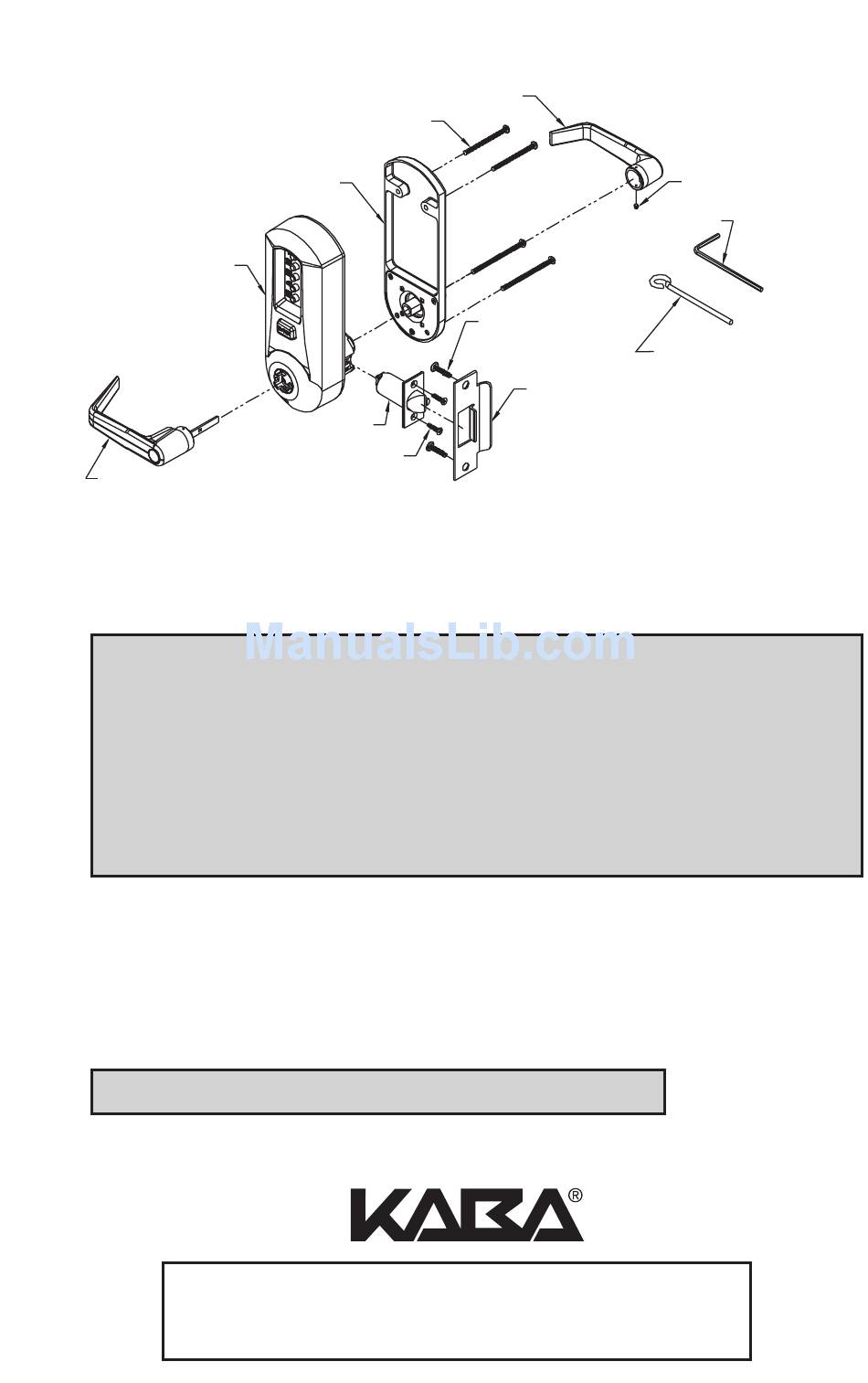

Exploded Install Parts; Tools Required - Kaba SIMPLEX 5000 CYLINDRICAL Installation Instructions Manual

Model 502x (shown)
Inside Unit
Assembly
Outside Unit
Assembly
/ " (18mm) Screws
3
4
Outside Lever
Assembly
The Simplex 5000 is a non-handed lock that is preassembled for
left-hand installations. It is field reversible.

TOOLS REQUIRED

• Safety glasses
• Electric drill (variable speed)
• Awl or center punch
• 2 ⁄ " (54 mm) hole saw pilot drill
1
8
• 1" (25 mm) hole saw pilot drill
Warnings and Cautions
Important: Carefully inspect windows, door frame, door, lights, etc., to
ensure that the recommended procedures will not cause damage.
Kaba Access Control's warranty does not cover damages caused by
installation.
Caution: Wear safety glasses when preparing door.
For technical assistance please call
1.800.849.TECH (8324) or 336.725.1331
Inside Lever
Mounting Screws
Latch
Allen Wrench
1" (25mm) Screws
ASA Strike
⁄ " (7 mm) drill bit
1
•
4
• 1" (25 mm) wood chisel
• Hammer
• Phillips head screw driver
• Small flat blade screwdriver
Set Screw
Release/Combination
Change Tool
3
