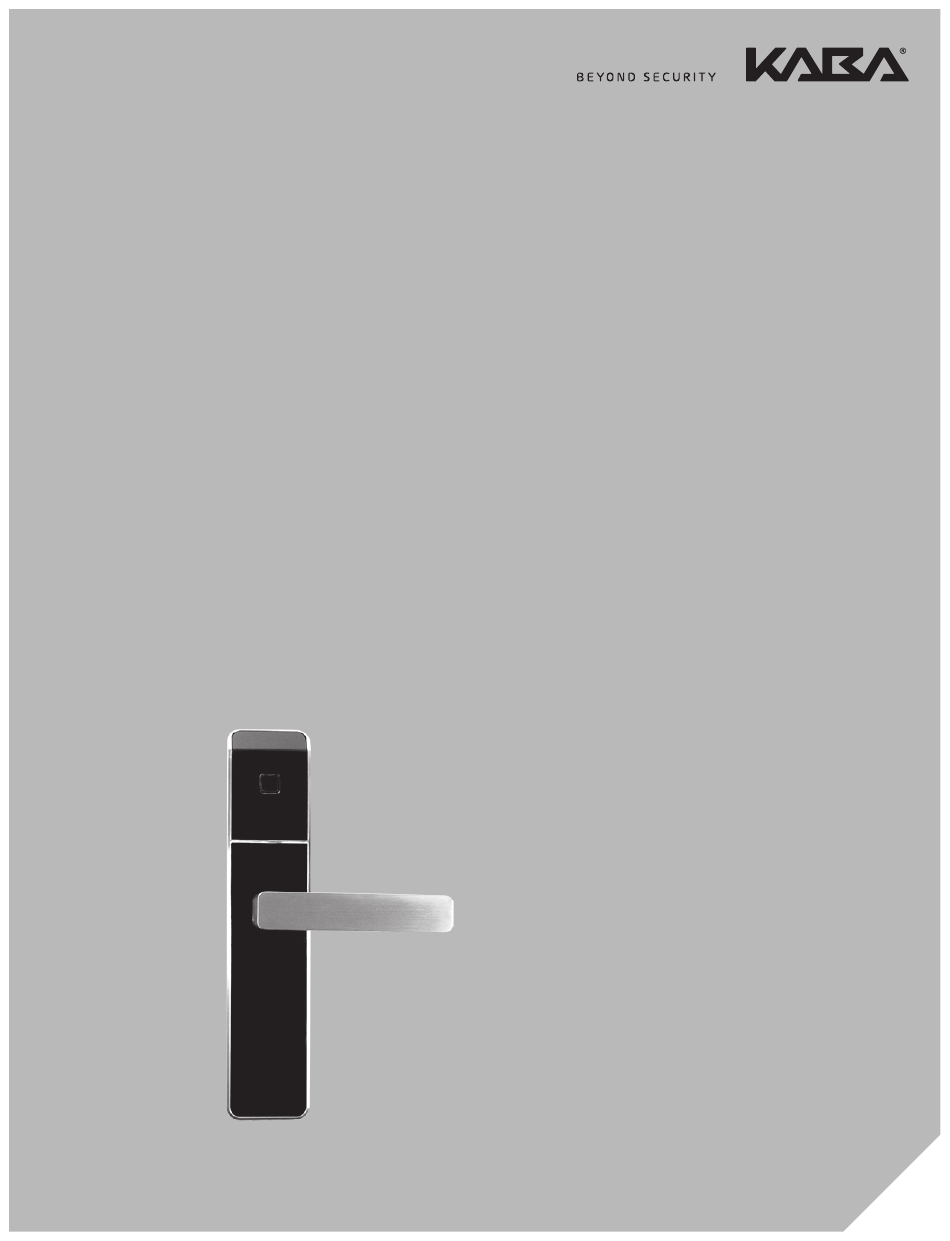

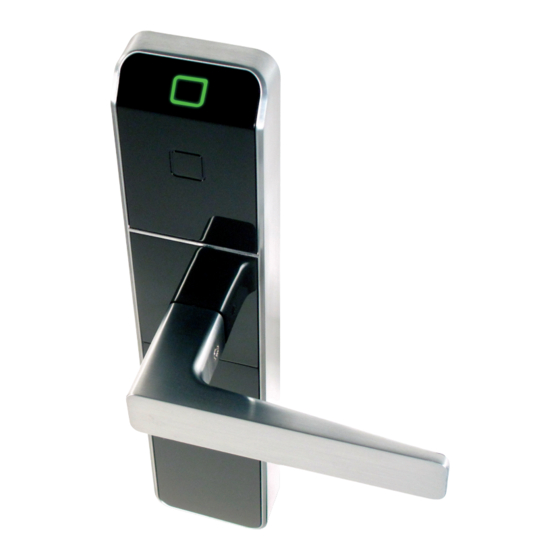

- Page 1 INSTALLATION GUIDE Confidant RFID Kit 2 & Kit 3 (European Mortise Lock Case) Rose Mount & Back Plate...
-
Page 3: Table Of Contents
: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement . Made in Canada ©2015 Kaba Lodging Systems . All trademarks and registered trademarks are the property of their respective owners . Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 4: Disclaimer
C - Screw Driver Torx T-20 D - Hexagonal Key 3 mm E - 25mm / 24mm / 19mm / 12mm / 10mm Drill Bit F - Needle Nose Pliers Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 5: Inventory (Use "No Key Override" Kit If No Cylinder Is Required)
A-Without Key Cylinder B-With Key Cylinder 3rd Party (Mortise & Cylinder) Warning: Install only on a mortise with anti-panic and an auxiliary dead latch (Anti-Pick system) Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 6: Rose Mount (No Key Override)
Thumbturn without Thumbturn Post may be attached to lock 3rd Party (Mortise) Warning: Install only on a mortise with anti-panic and an auxiliary dead latch (Anti-Pick sys- tem) Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 7: Back Plate Mount (Key Override)
A-Without Key Cylinder B-With Key Cylinder 3rd Party (Mortise & Cylinder) Warning: Install only on a mortise with anti-panic and an auxiliary dead latch (An- ti-Pick system) Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 8: Back Plate Mount (No Key Override)
Inventory Kit with Thumbturn without Thumbturn Post may be attached to lock 3rd Party (Mortise) Warning: Install only on a mortise with anti-panic and an auxiliary dead latch (Anti-Pick system) Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 9: Install Spindle
1- Check Handing: Adjust for Right Hand (RH) or Left Hand (LH) 2- Insert Spindle 3- Attach and Clamp Spindle Clip to Spindle as shown . Ensure legs are firmly clamped against the spindle Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 10: Install Outside Lever
4- INSTALL OUTSIDE LEVER Left Hand * N.B. Hold down the outside lever against the outside housing while tightening the lever set screw. Right Hand Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 11: Align Posts With Mortise
5- ALIGN POSTS WITH MORTISE (Rose Mount Only) Ensure Mortise lock case includes an anti-pick and anti-panic function Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 12: 6A- Adjust Handing
1- Remove 2- Rotate 180˙ 3- Assemble Handing LH to RH 1- Remove 2- Rotate 180˙ 3- Assemble 6B- PREPARE INSIDE HOUSING Inside Right Hand Housing Inside Left Hand Housing Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 13: Install Lock On Door
Screw M4 (4mm) the door. • A, B, C and D required IMPORTANT for security grade • A always required • C recommended Screw M5 (5mm) 3mm to 13mm Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 14: Back Plate Mount (No Key Override)
To tighten set screw for DIN certified IMPORTANT: After connecting all locks cables, make sure all excess cables are pushed inside the hole(s) in the door. **Recommended for more security Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 15: Install Inside Trim Cover
8- INSTALL INSIDE TRIM COVER Thumbturn must be vertical (if applicable) Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 16: Plug Battery Holder
F - Check Bolt Projection from Thumbturn & Key C - Rotate Outside Lever to Check Bolt Retraction D - Release Outside Lever, Should Move Freely 11- PROGRAM LOCK - With Jack Cable Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 17: Install Battery Door
WARNING Warning: For security reasons, lock must be programmed BEFORE installing the battery door. Every time the battery door is removed pass an emergency card or connect lock to Kaba handheld programming device to reset the tamper alarm. Audit information is not affected. -
Page 18: (Applicable Only To Kit 3 Lock Certified En 179 With Bmh 801 Lock Case)
The EN 179 identification label on the lock can be find in the location shown below underneath the battery holder. Refer to annex B for instructions how to remove the battery holder. For declaration of performance, please visit www.kabalodgingsupport.com Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 19: Annex A . Install Outside Housing With Gasket And Cylinder Shield
Annex A • Install Outside Housing - with Gasket and Cylinder Shield (Exterior and Ocean Front Versions) Model with Key Cylinder only Annex B • Remove Battery Holder Unscrew Remove Door Unclip Battery Holder Remove Battery Holder Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... -
Page 20: Annex C . Install Bluetooth And Messenger Module
Annex C • Install Bluetooth and Messenger module See annex D for instructions of how to remove the cover from the module. Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... - Page 21 Messenger hub outside the room. MESSENGER-B MESSENGER-A Orientation when Messenger hub Orientation when Messenger hub inside Position of Bluetooth outside the room the room antenna board Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16...
-
Page 22: Annex D . Remove Cover Of Bluetooth And Messenger Module
Annex D • Remove cover of Bluetooth and Messenger module DETAIL DETAIL SCALE 1:1 Confidant RFID Kit 2 & Kit 3 Installation Guide - PK3649_T_04_16... - Page 24 Kaba Customer Services & Support ILCO: 1.877.468.3555 / + 1.514.340.9025 Saflok: 1.800.999.6213 / + 1.248.837.3700 General Information: www.kabalodging.com Online Consumable Orders: www.ilcostore.com www.saflokstore.com To access all of our easy steps, please visit our Support Website: PK3649_T_04_16 www.kabalodgingsupport.com...
