Verifying The Power Input Connections Before Applying Power - Oracle SPARC Enterprise M4000 Installation Manual

FIGURE 3-1
#3 #2
3.2.2 Verifying the Power Input Connections Before
Applying Power
●
Have the site electrician verify that the input power source fulfills the power
requirements.
Refer to the SPARC Enterprise M4000/M5000 Servers Site Planning Guide for input
power requirements.
Note – Both ends of the power cords should have been connected prior to shipment
(for servers preinstalled in an equipment rack) or when the server was mounted in
the equipment cabinet. If the power cords were not connected previously, connect
them before applying power to the power cords.
3-4 SPARC Enterprise M4000/M5000 Servers Installation Guide • February 2012

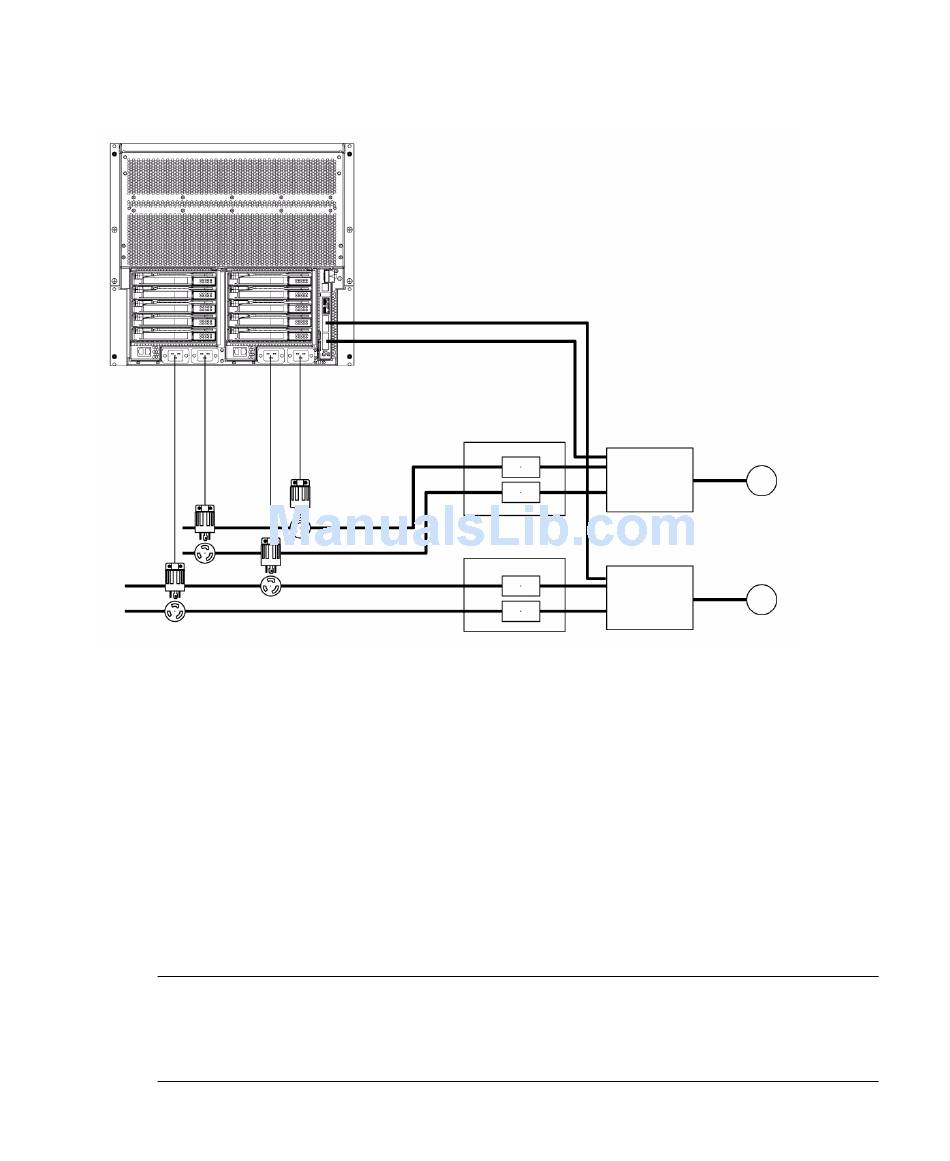

SPARC Enterprise M5000 Server Dual-power Feed UPC Connections
UPC#1
UPC#0
#1 #0
UPC Interface Cables
UPC#0
Circuit
breaker
UPC#1
Circuit
breaker
AC#0
AC#1
