Completing the installation

After you install the hard disk drives and power supplies, follow the instructions in
this section to complete the installation. Instructions for installing the identification
labels and cabling the expansion unit are included.

Installing identification labels

Your expansion unit comes with one sheet of 10 labels (0-9) and one sheet of 4 labels
(SCSI ID) labels.
If you are installing the EXP300 expansion unit in a tower, refer to the
Note:
information provided with the Rack-to-Tower Conversion Kit to set the
option switches and install the SCSI ID labels.
Complete the following steps to install the SCSI identification labels:
To install the label:
1. Locate the SCSI ID label for your configuration.
Note: For a dual-bus configuration, the SCSI ID label includes an arrow with a 1
and a 2 pointing to each bus. Use the single-bus label if internal option
switch 3 is set to Off. Use the dual-bus label if internal option switch 3 is
set to On.
a. Orient the label so that the printed numbers are legible from left-to-right.
b. Peel the backing away from the adhesive side of the label.
c. Carefully butt the edge of the SCSI ID label up against the edge of the serial
number label so that the 14 printed ID numbers are located beneath each of
the drive bays.

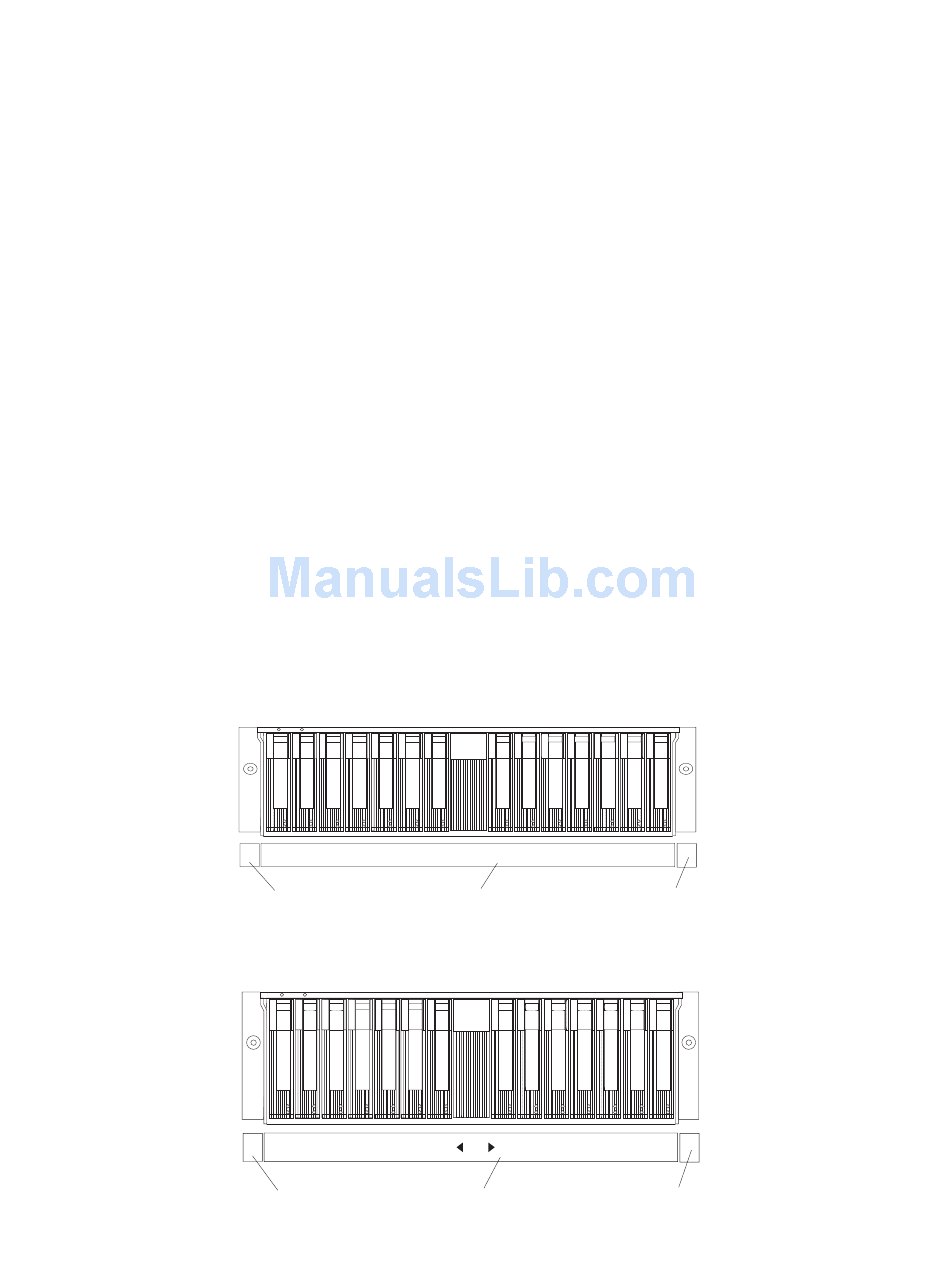

d. Apply the label to the front of the unit, as shown in the following illustrations.
Single-bus configuration
0
1 2
Expansion unit ID label
Dual-bus configuration
0 1 2
Expansion unit ID label
3 5 6 8 9
4
SCSI ID label
3 4 5 6 1 2 8
SCSI ID label
10 13
11 12 14
Serial number label
9 10 11 12 13 14
Serial number label
Netfinity EXP300 Type 3531
