System-management software, such as IBM Netfinity Manager™, uses the ID when it

provides data and alerts for the expansion unit.

For more information on option switch settings, see "Setting the interface options and

ID settings" on page 10.

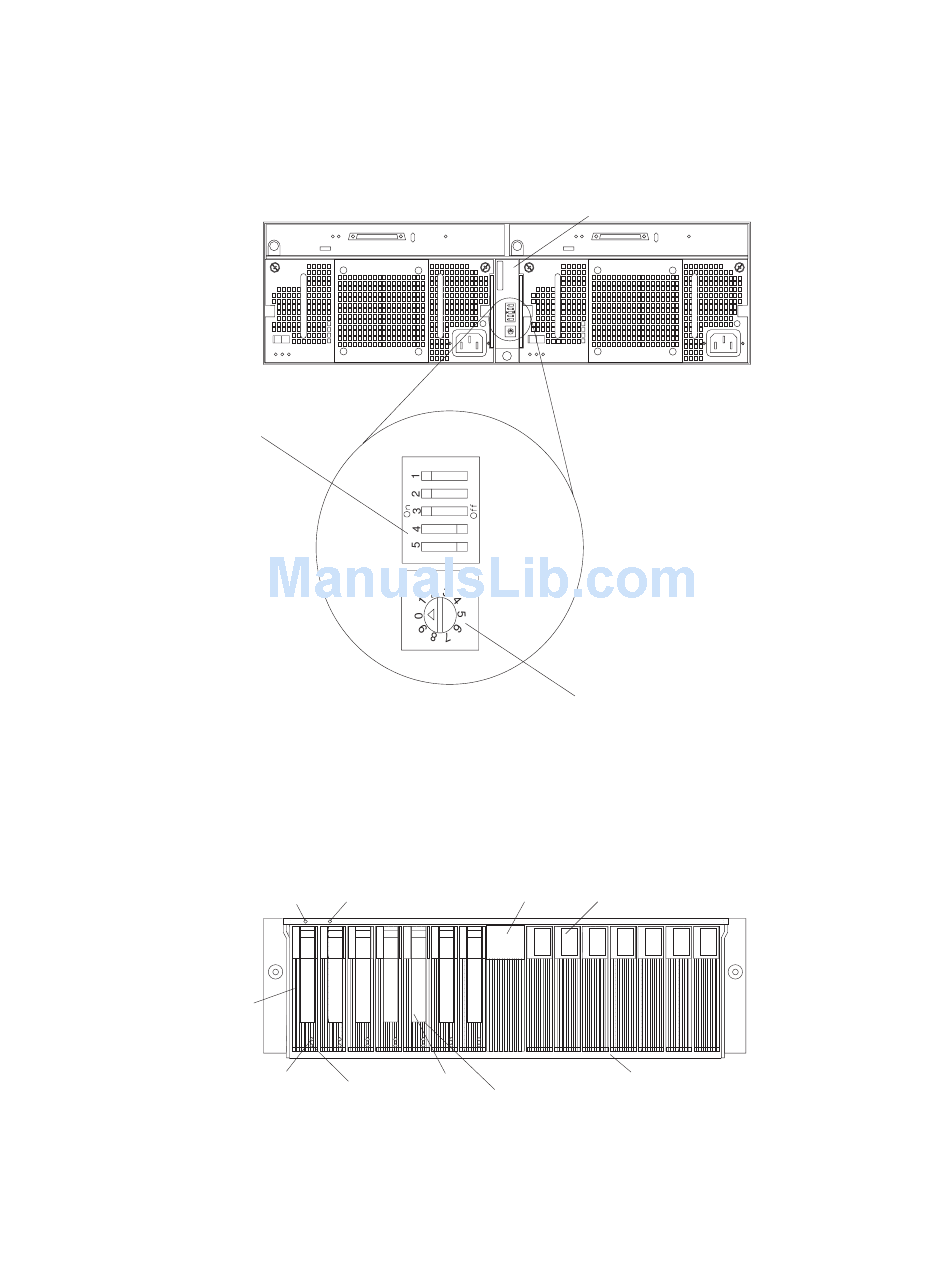

The following illustration shows the location of the switch card on the expansion unit.

Switch card

External option switches

Unit ID switch

Front controls, indicators, and devices

The primary controls on the front of the expansion unit are shown in the following

illustration.

General-system-

Bridge

error LED (amber)

card bay

Filler panel

Power-on LED (green)

Drive CRU

Activity

Drive bays

Fault

Tray

LED (green)

LED (amber)

handle

Latch

Power-on LED (green)

This green light indicates that the unit has good dc power.
