3. Determine the bay into which you want to install the drive.
4. Remove the filler panel.
a. Insert a finger into the square hole at the top of the filler panel to grip and pull
the panel out of the drive bay.
b. Save the filler panel for later use.
5. Install the drive CRU:
The hard disk drive comes with a tray already attached. Do not attempt
Note:
to detach the drive 4 from the tray 3 .

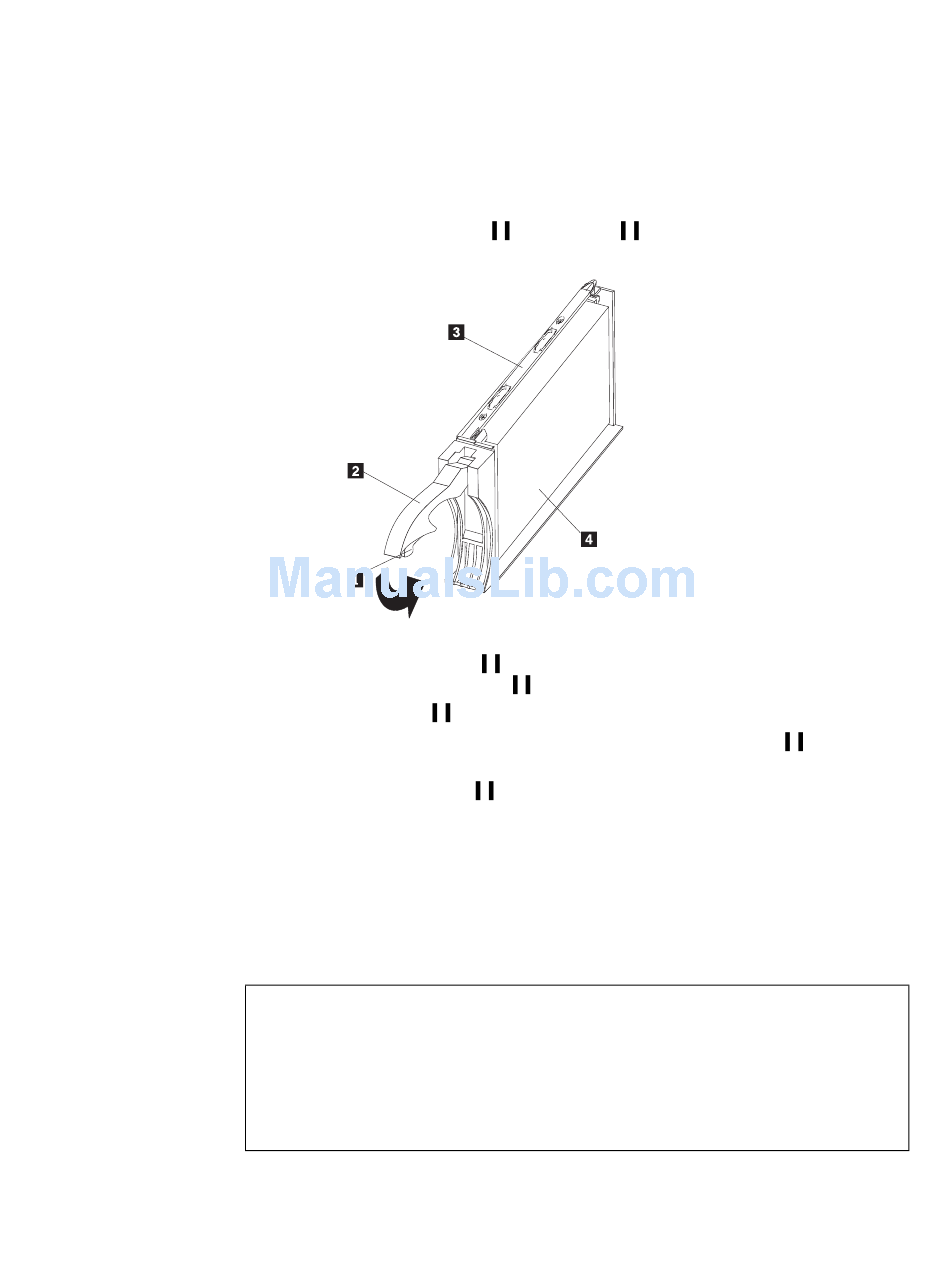

a. Release the blue latch 1 on the drive CRU by pressing on the inside of the
bottom of the tray handle 2 .
b. Pull the handle 2 on the tray out into the open position.
c. Slide the drive CRU into the empty bay until the tray handle 2 touches the
expansion-unit bezel.
d. Push the tray handle 2 down into the closed (latched) position.
6. Check the drive LEDs.
a. When a drive is ready for use, the green activity LED and the amber fault
LED are off.
b. If the amber fault LED is on, remove the drive from the unit and wait 10
seconds; then, reinstall the drive.
ServeRAID information
In some cases, the ServeRAID controller will automatically reset the drive to the
Hot Spare or Rebuild state. If the drive state change does not occur automatically
(amber LED stays lit), refer to your ServeRAID documentation for information
about manually changing the state of the drive from the current state to another
state, such as Hot Spare or Ready. The amber LED should turn off within 10
seconds after the drive-state change.
7. Configure the drive using the appropriate software.
