INSTALLATION INSTRUCTIONS FOR PART GMOS-LAN-09
LAN-29 Data Interface
CHEVROLET
Silverado 1500
Silverado 2500/3500
Suburban
Tahoe
KIT FEATURES
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Used in non-amplified systems
• Retains chimes
• Provides NAV outputs (Parking Brake,
Reverse, Mute, and speed sense)
• Retains OnStar/OE Bluetooth
METRA. The World's best kits.™
GMOS-LAN-09
2014-up
APPLICATIONS
GMC
2014-up
Sierra 1500
2015-up
Sierra 2500/3500
2015-up
Yukon
2015-up
• Adjustable volume for chimes and OnStar
• Retains OE AUX input
• High level speaker input
• USB updatable
• Retains balance and fade
• Prewired ASWC-1 harness (ASWC-1 sold
separately)
1-800-221-0932
INTERFACE COMPONENTS

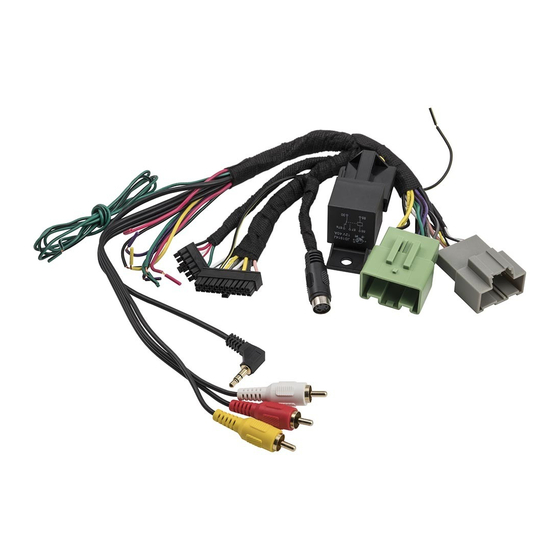

• GMOS-LAN-09 interface • GMOS-LAN-09
harness • 16-pin harness with stripped leads
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape • Connectors
2014-up
(example: butt-connectors, bell caps, etc.)
2015-up
2015-up
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
