INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains chimes to the factory speaker
• Adjustable chime level
* If the vehicle is amplified, either use the GMOS-09 interface, or bypass the amplifier. If bypassing the
amplifier, follow the "Axxess Interface Amp Bypass Schematic" online.
APPLICATIONS
Buick
LeSabre
2000-2005
AxxessInterfaces.com
GM Dock n' Lock Data Interface
2000-2005
• Retains OnStar / OE Bluetooth
• Adjustable OnStar level
• Designed for non-amplified models, or when bypassing a factory amp *
• Retains balance and fade
• USB-CAB updatable (sold separately)
Oldsmobile
Aurora
2001-2003
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
Pontiac
Bonneville
2000-2005
GMOS-05
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................3
INTERFACE COMPONENTS

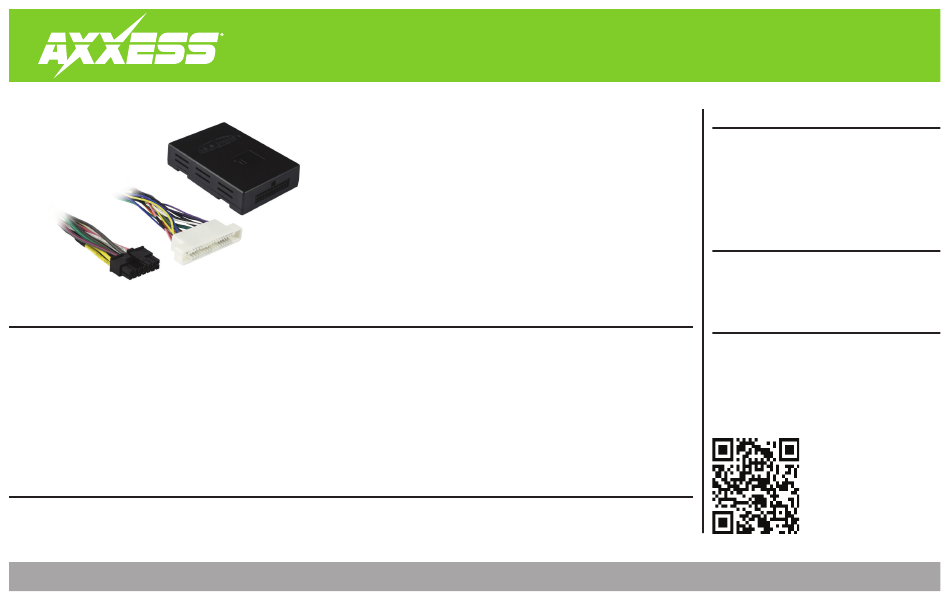

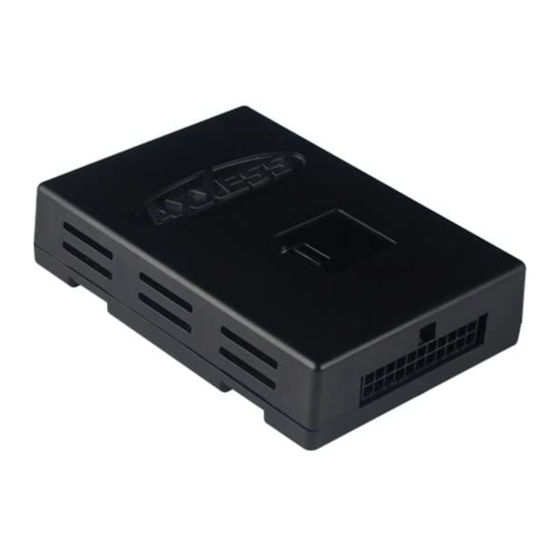

• GMOS-05 interface • GMOS-05 harness
• 16-pin harness with stripped leads
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter • Small flat-blade screwdriver
Product Info
REV. 7/3/19 INSTGMOS-05
